Fairchild FQT5P10 100V P-Channel MOSFET Data Sheet
Summary
The FQT5P10 is a high-performance P-Channel MOSFET, engineered for efficient low voltage power switching in complex systems. Utilizing advanced Planar Stripe DMOS technology, this device provides fast switching speeds and superior durability needed for reliable operation in audio amplifiers, DC/DC converters, and motor control circuits. The accompanying technical manual offers comprehensive data on all electrical characteristics, maximum ratings, and operating parameters required for professional circuit design and integration.
Page 1 Text Content

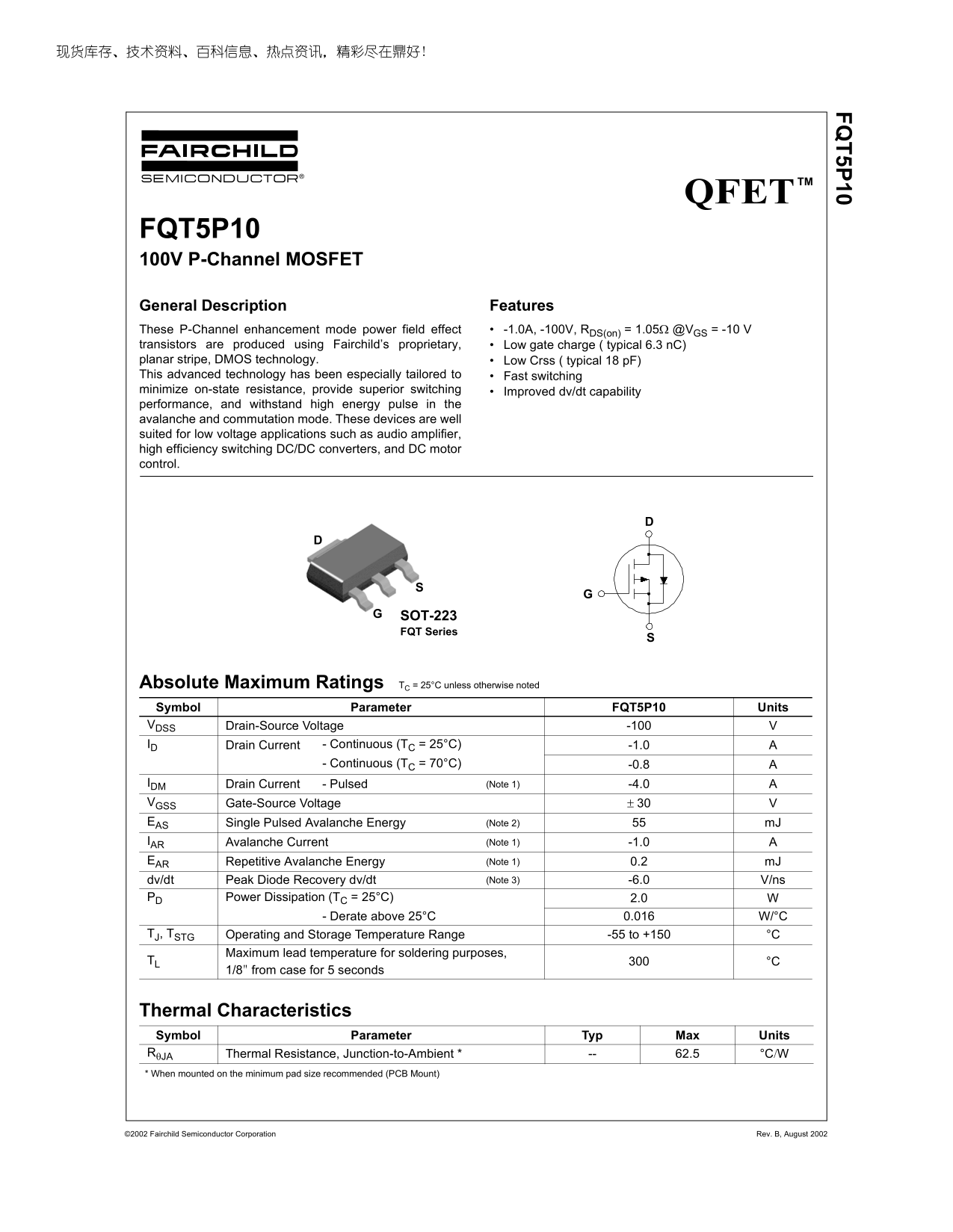

FQ T5P10QFET
FQT5P10 100V P-Channel MOSFET General Description Features These P-Channel enhancement mode power field effect -1.0A, -100V, RDS(on) = 1.05Ω @VGS = -10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 6.3 n C) planar stripe, DMOS technology. Low Crss ( typical 18 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching Improved dv/dt capability performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control.
SOT-223 FQT Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQT5P10 Units VDSS Drain-Source Voltage -100 ID Drain Current - Continuous (TC = 25°C) -1.0
- Continuous (TC = 70°C) -0.8
IDM Drain Current - Pulsed (Note 1) -4.0 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) -1.0 EAR Repetitive Avalanche Energy (Note 1) 0.2 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) -6.0 V/ns
PD Power Dissipation (TC = 25°C) 2.0
- Derate above 25°C 0.016 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
TL °C
1/8" from case for 5 seconds
Thermal Characteristics Symbol Parameter Typ Max Units RθJA Thermal Resistance, Junction-to-Ambient * 62.5 °C/W * When mounted on the minimum pad size recommended (PCB Mount)
©2002 Fairchild Semiconductor Corporation Rev. B, August 2002
