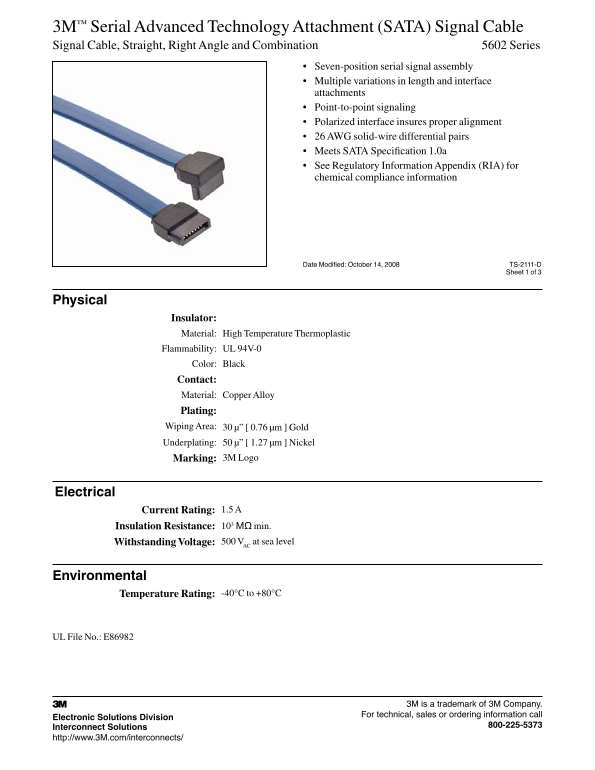

3M™ Serial Advanced Technology Attachment (SATA) Signal Cable Signal Cable, Straight, Right Angle and Combination 5602 Series
Seven-position serial signal assembly• Multiple variations in length and interface • attachments Point-to-point signaling• Polarized interface insures proper alignment• 26 AWG solid-wire differential pairs• Meets SATA Specification 1.0a• See Regulatory Information Appendix (RIA) for • chemical compliance information
Date Modified: October 14, 2008 TS-2111-D Sheet 1 of 3
Physical
Insulator: Material: High Temperature Thermoplastic Flammability: UL 94V-0 Color: Black Contact: Material: Copper Alloy Plating: Wiping Area: 30 μ” [ 0.76 μm ] Gold Underplating: 50 μ” [ 1.27 μm ] Nickel
Marking: 3M Logo
Electrical
Current Rating: 1.5 A Insulation Resistance: 103 ΜΩ min. Withstanding Voltage: 500 V at sea level AC
Environmental
Temperature Rating: -40°C to +80°C
UL File No.: E86982
3M is a trademark of 3M Company.
For technical, sales or ordering information call
Electronic Solutions Division
Interconnect Solutions 800-225-5373
http://www.3M.com/interconnects/
