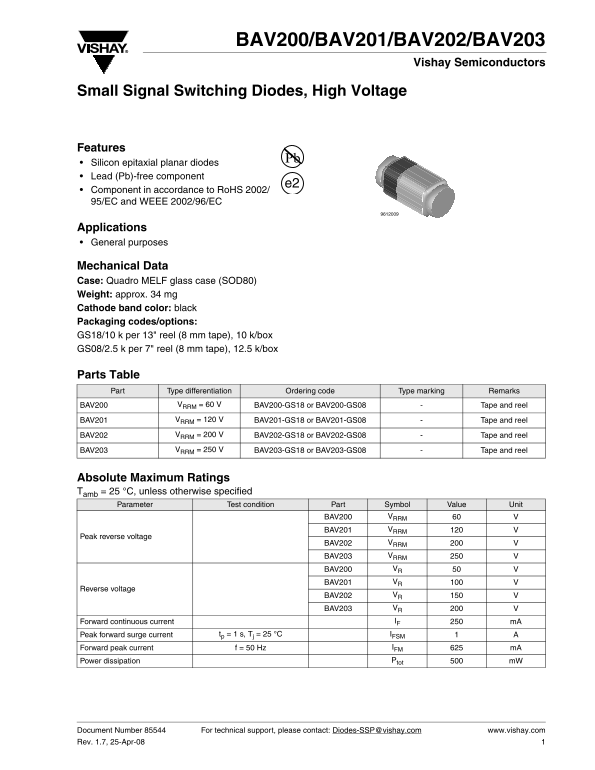

BAV200/BAV201/BAV202/BAV203
Vishay Semiconductors
Small Signal Switching Diodes, High Voltage
Features Silicon epitaxial planar diodes Lead (Pb)-free component
Component in accordance to Ro HS 2002/ 95/EC and WEEE 2002/96/EC
Applications General purposes
Mechanical Data Case: Quadro MELF glass case (SOD80) Weight: approx. 34 mg Cathode band color: black Packaging codes/options: GS18/10 k per 13" reel (8 mm tape), 10 k/box GS08/2.5 k per 7" reel (8 mm tape), 12.5 k/box
Parts Table Part Type differentiation Ordering code Type marking Remarks
BAV200 VRRM = 60 V BAV200-GS18 or BAV200-GS08 Tape and reel
BAV201 VRRM = 120 V BAV201-GS18 or BAV201-GS08 Tape and reel
BAV202 VRRM = 200 V BAV202-GS18 or BAV202-GS08 Tape and reel
BAV203 VRRM = 250 V BAV203-GS18 or BAV203-GS08 Tape and reel
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Part Symbol Value Unit
BAV200 VRRM BAV201 VRRM
Peak reverse voltage
BAV202 VRRM BAV203 VRRM BAV200 VR BAV201 VR
Reverse voltage
BAV202 VR BAV203 VR Forward continuous current IF m A
Peak forward surge current tp = 1 s, Tj = 25 °C IFSM
Forward peak current f = 50 Hz IFM m A Power dissipation Ptot m W
