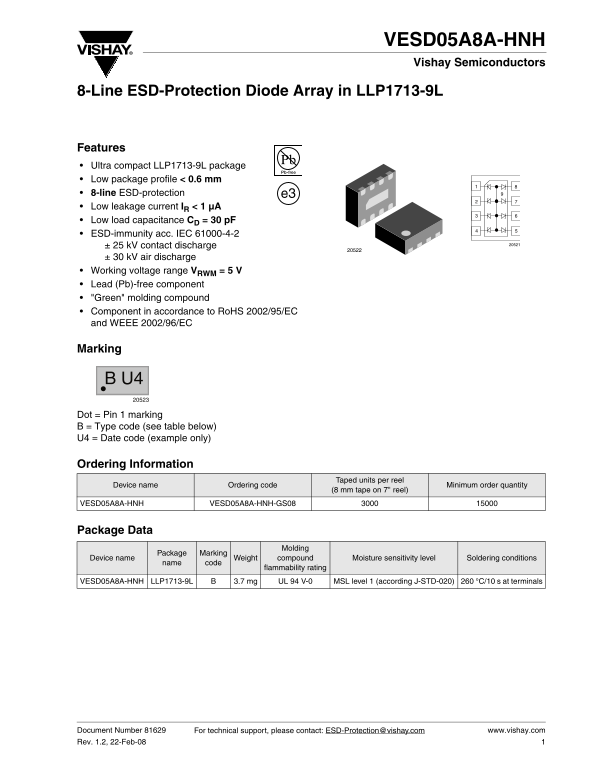

VESD05A8A-HNH Vishay Semiconductors

8-Line ESD-Protection Diode Array in LLP1713-9L

Features Ultra compact LLP1713-9L package Low package profile < 0.6 mm 8-line ESD-protection e3 Low leakage current IR < 1 µA Low load capacitance CD = 30 p F ESD-immunity acc. IEC 61000-4-2 ± 25 k V contact discharge ± 30 k V air discharge Working voltage range VRWM = 5 V Lead (Pb)-free component "Green" molding compound Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Marking

B U4 Dot = Pin 1 marking B = Type code (see table below) U4 = Date code (example only)

Ordering Information

Taped units per reel

Device name Ordering code Minimum order quantity

(8 mm tape on 7" reel)

VESD05A8A-HNH VESD05A8A-HNH-GS08

Package Data

Molding

Package Marking

Device name Weight compound Moisture sensitivity level Soldering conditions

name code

flammability rating

VESD05A8A-HNH LLP1713-9L 3.7 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals

Document Number 81629 For technical support, please contact: [email protected] www.vishay.com Rev. 1.2, 22-Feb-08
