PHILIPS Low Capacitance Double ESD Protection Diode Data Sheet

Summary

This low capacitance, double ESD protection diode is designed to safeguard electronic systems and data lines from damaging electrostatic discharge at 3.3V and 5V. Featuring an ultra-small SOT883 package, it provides reliable uni or bi-directional anti-static protection for transmission circuits. This comprehensive datasheet covers all critical performance details, including absolute maximum ratings, electrical characteristics, thermal specifications, and non-repetitive pulse power data. It is essential for designers working on portable electronics, cellular handsets, computers, and advanced communication/audio equipment seeking high-level robust component solutions.

📄 Preview ‹ PAGE OF 9 ›

‹

PHILIPS Low Capacitance Double ESD Protection Diode Data Sheet - Page 1

›

Page 1 Text Content

查询PESD3V3L2UM供应商

DISCRETE SEMICONDUCTORS

DATA SHEET

BOTTOM VIEW

PESDx L2UM series Low capacitance double ESD protection diode Product specification Aug

Page Summary Contents For PHILIPS Low Capacitance Double ESD Protection Diode Data Sheet

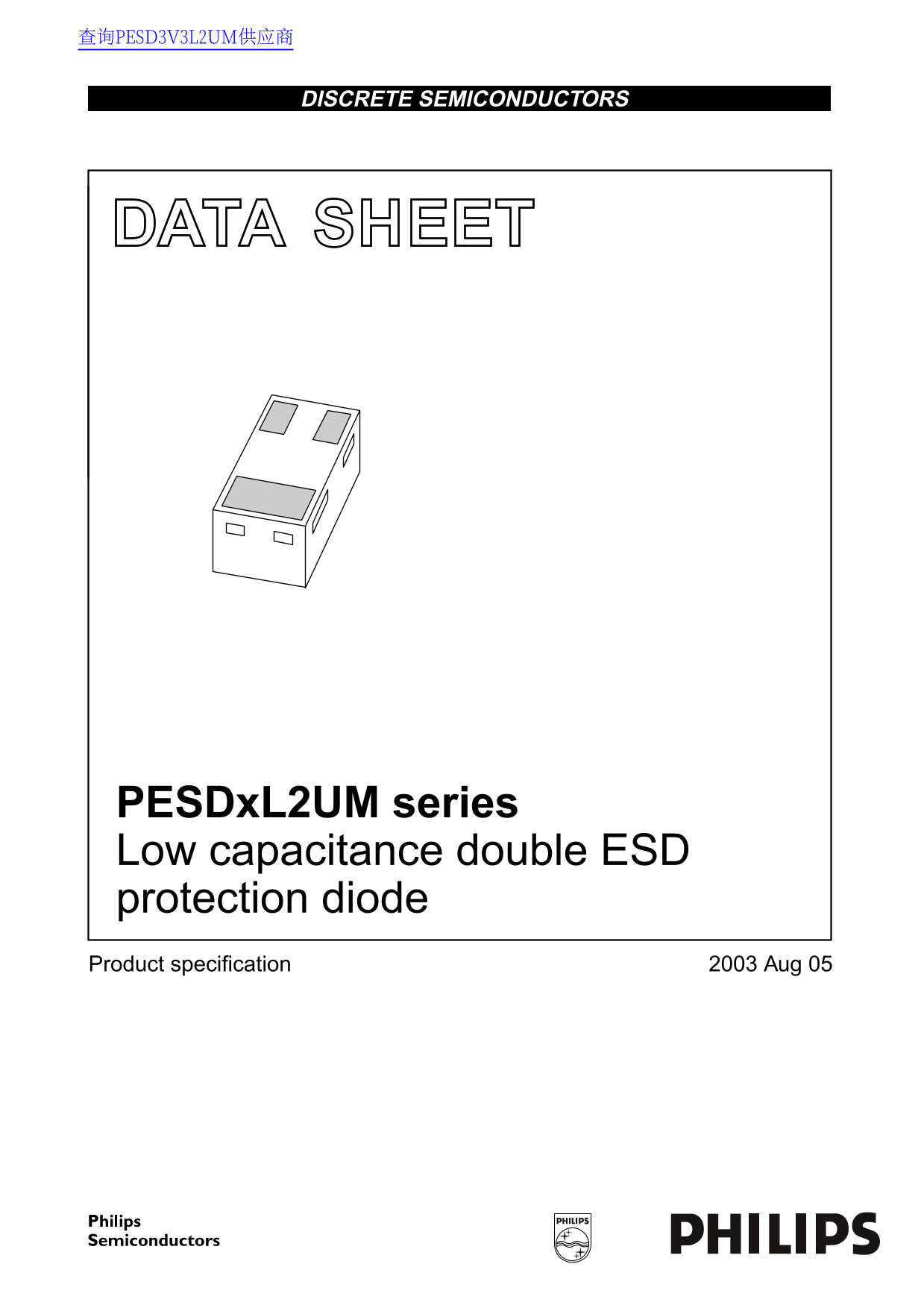

Page 1 查询PESD3V3L2UM供应商 DISCRETE SEMICONDUCTORS DATA SHEET BOTTOM VIEW PESDx L2UM series Low capacitance double ESD protection diode Product specification Aug

Page 2 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series FEATURES DESCRIPTION Uni-directional ESD protection of two lines or Low capacitance ESD prote...

Page 3 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PAR...

Page 4 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series ELECTRICAL CHARACTERISTICS Tj °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN....

Page 5 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series MLE215 MLE216 handbook, halfpage handbook, halfpage Cd (p F) IZSM (A) PESD3V3L2UM PESD3V3L2UM...

Page 6 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series handbook, full pagewidth ESD TESTER RG 223/U 4 GHz DIGITAL 50 Ω coax RZ OSCILLOSCOPE10× ATTEN...

Page 7 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series PACKAGE OUTLINE Leadless ultra small plastic package; 3 solder lands; body 1.0 x 0.6 x 0.5 mm...

Page 8 Philips Semiconductors Product specification Low capacitance double ESD protection diode PESDx L2UM series DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data D...

Page 9 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
