PHILIPS PESDxL4UW series Low Capacitance Quadruple ESD Protection Array Data Sheet User Manual
Summary
This low capacitance quadruple ESD protection array is a compact SOT665 surface mount component designed to safeguard up to four signal or data lines against severe ElectroStatic Discharge (ESD) damage. Ideal for designers of portable electronics, cellular handsets, and communication systems. The datasheet provides comprehensive engineering details, including electrical characteristics, thermal limits, and compliance specifications (IEC 61000-4-2), ensuring reliable protection in high-performance computing and audio/video equipment.

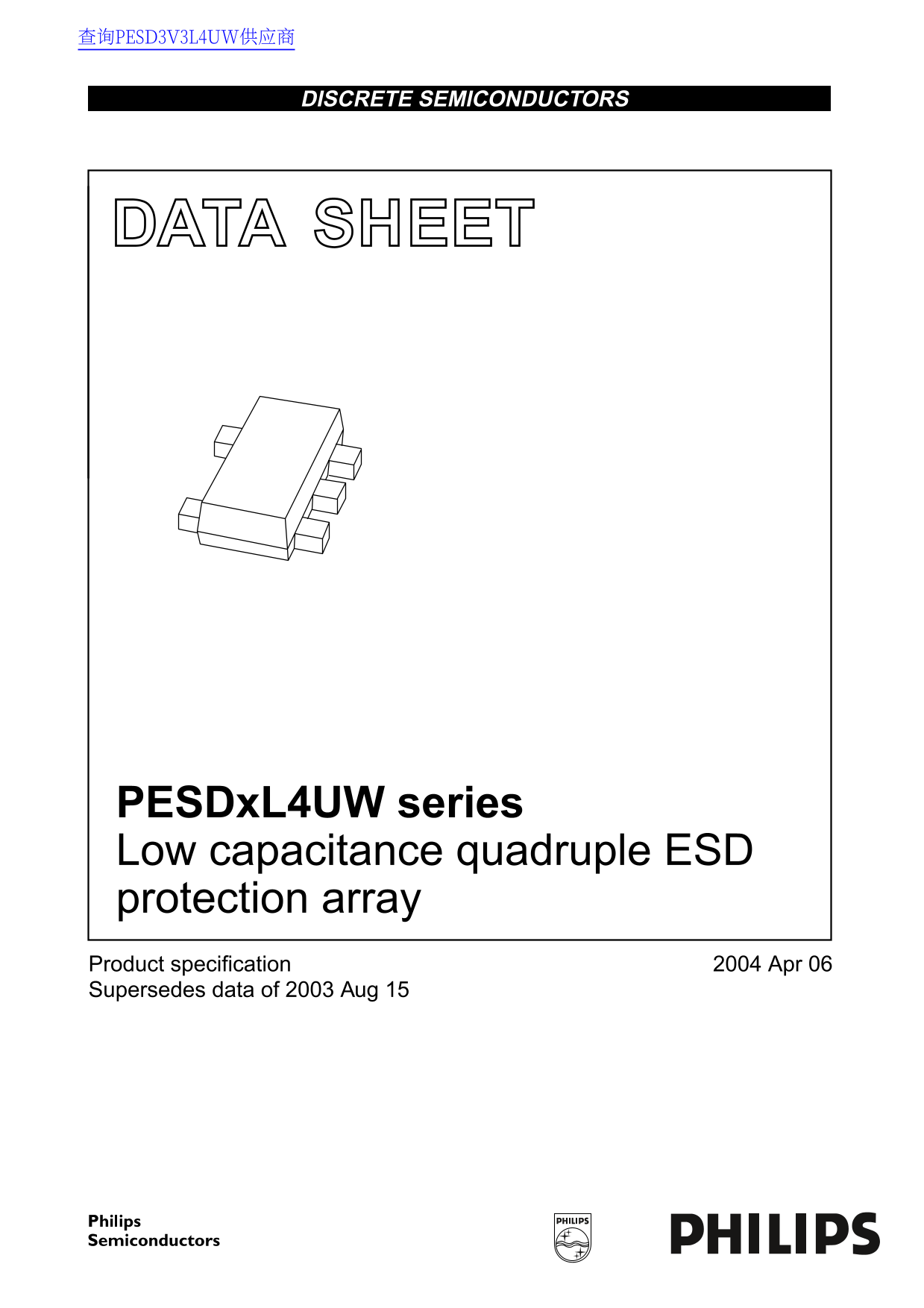

Page 1 Text Content
查询PESD3V3L4UW供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PESDx L4UW series Low capacitance quadruple ESD protection array Product specification Apr Supersedes data of 2003 Aug 15
Page Summary Contents For PHILIPS PESDxL4UW series Low Capacitance Quadruple ESD Protection Array Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 9 |
| File Size | 74.86 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What package does PESD3V3L4UW use?
It uses the ultra small SOT665 5-lead plastic surface mount package.
What ESD protection level does PESD3V3L4UW support?
It supports IEC 61000-4-2 level 4: 15 kV air, 8 kV contact, and 20 kV HBM.
What is the reverse standoff voltage of PESD3V3L4UW?
The reverse standoff voltage is 3.3 V.
What are common applications for PESD3V3L4UW?
It is used in cellular handsets, portable electronics, computers, communication and audio/video systems.
