PHILIPS PESDxS1UB series ESD protection diodes data sheet - SOD 523 Package
Summary
A product datasheet for the PESDxS1UB series of unidirectional ESD protection diodes in SOD523 package. These diodes protect one transmission or data line from ESD and transient damage, featuring max peak pulse power of 330W, low clamping voltage of 20V, ultra-low leakage current below 700nA, and ESD protection exceeding 23kV. Available in multiple voltage variants (3.3V, 5V, 12V, 15V, 24V). The manual covers electrical characteristics, pinning information, ordering details, and application guidance. Intended for electronics engineers designing protection circuits for computers, communication systems, audio/video equipment, and CAN bus applications.

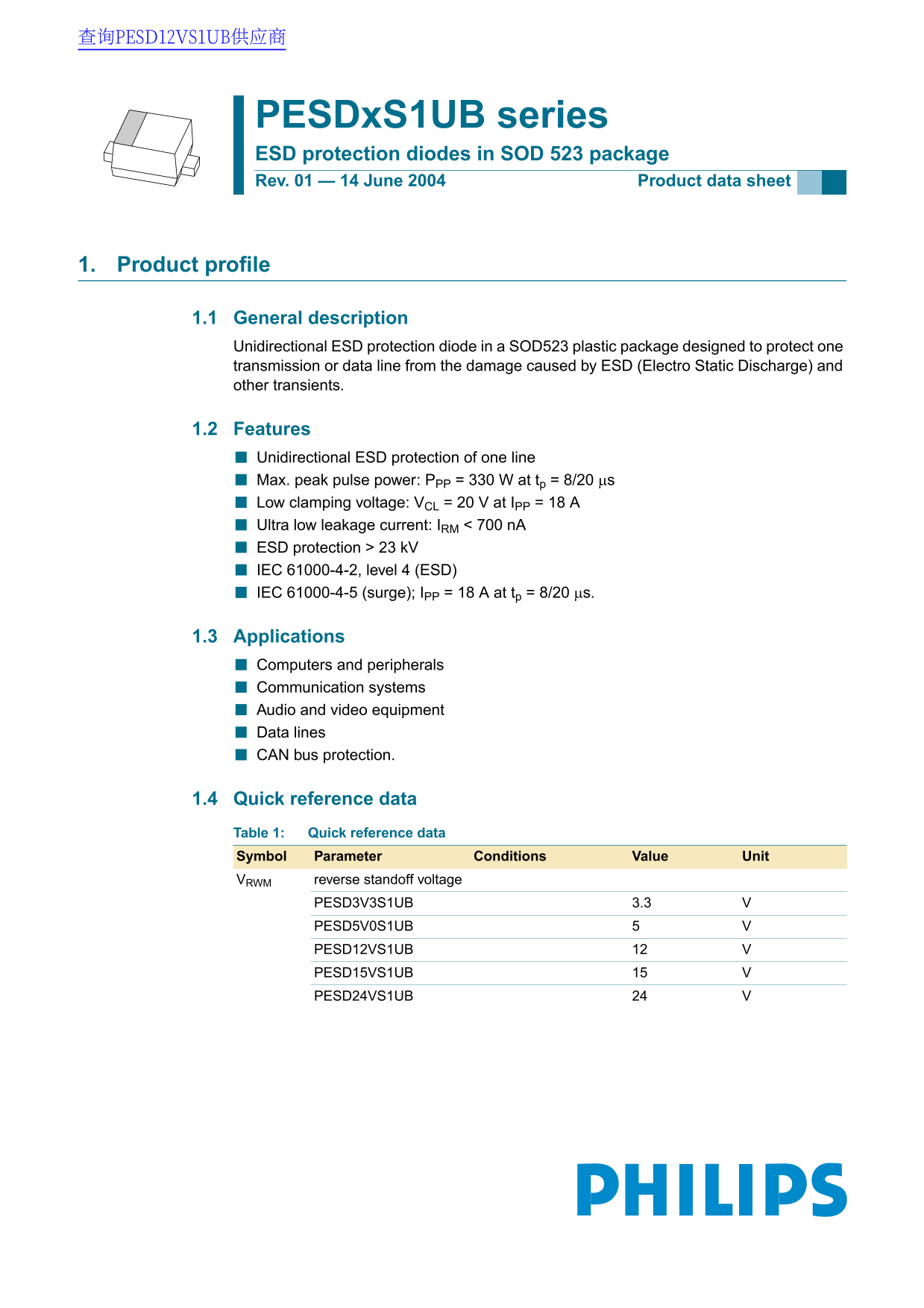

Page 1 Text Content
查询PESD12VS1UB供应商
PESDx S1UB series ESD protection diodes in SOD 523 package Rev. 01 — 14 June 2004 Product data sheet
1. Product profile
1.1 General description Unidirectional ESD protection diode in SOD523 plastic package designed to protect one transmission or data line from the damage caused by ESD (Electro Static Discharge) and other transients.
1.2 Features Unidirectional ESD protection of one line Max. peak pulse power: PPP = 330 W at tp = 8/20 µs Low clamping voltage: VCL = 20 V at IPP = 18 A Ultra low leakage current: IRM < 700 n A ESD protection > 23 k V IEC 61000-4-2, level 4 (ESD) IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 µs.
1.3 Applications Computers and peripherals Communication systems Audio and video equipment Data lines CAN bus protection.
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Conditions Value Unit
VRWM reverse standoff voltage PESD3V3S1UB 3.3 PESD5V0S1UB PESD12VS1UB PESD15VS1UB PESD24VS1UB
Page Summary Contents For PHILIPS PESDxS1UB series ESD protection diodes data sheet - SOD 523 Package
Manual Details
| Brand | Philips |
|---|---|
| Pages | 15 |
| File Size | 98.28 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the reverse standoff voltage for the PESD12VS1UB diode?
The reverse standoff voltage (V_RWM) for the PESD12VS1UB is 12 V.
What applications is the PESDxS1UB series designed for?
It is designed for computers, communication systems, audio/video equipment, data lines, and CAN bus protection.
What is the peak pulse current rating for the PESD12VS1UB?
The peak pulse current (I_PP) for the PESD12VS1UB is 5 A for an 8/20 μs pulse.
What is the diode capacitance of the PESD12VS1UB?
The diode capacitance (C_d) is 38 pF typical at V_R = 0 V and f = 1 MHz.
What package is the PESDxS1UB series available in?
It is available in a plastic surface-mounted SOD523 package (SC-79).
