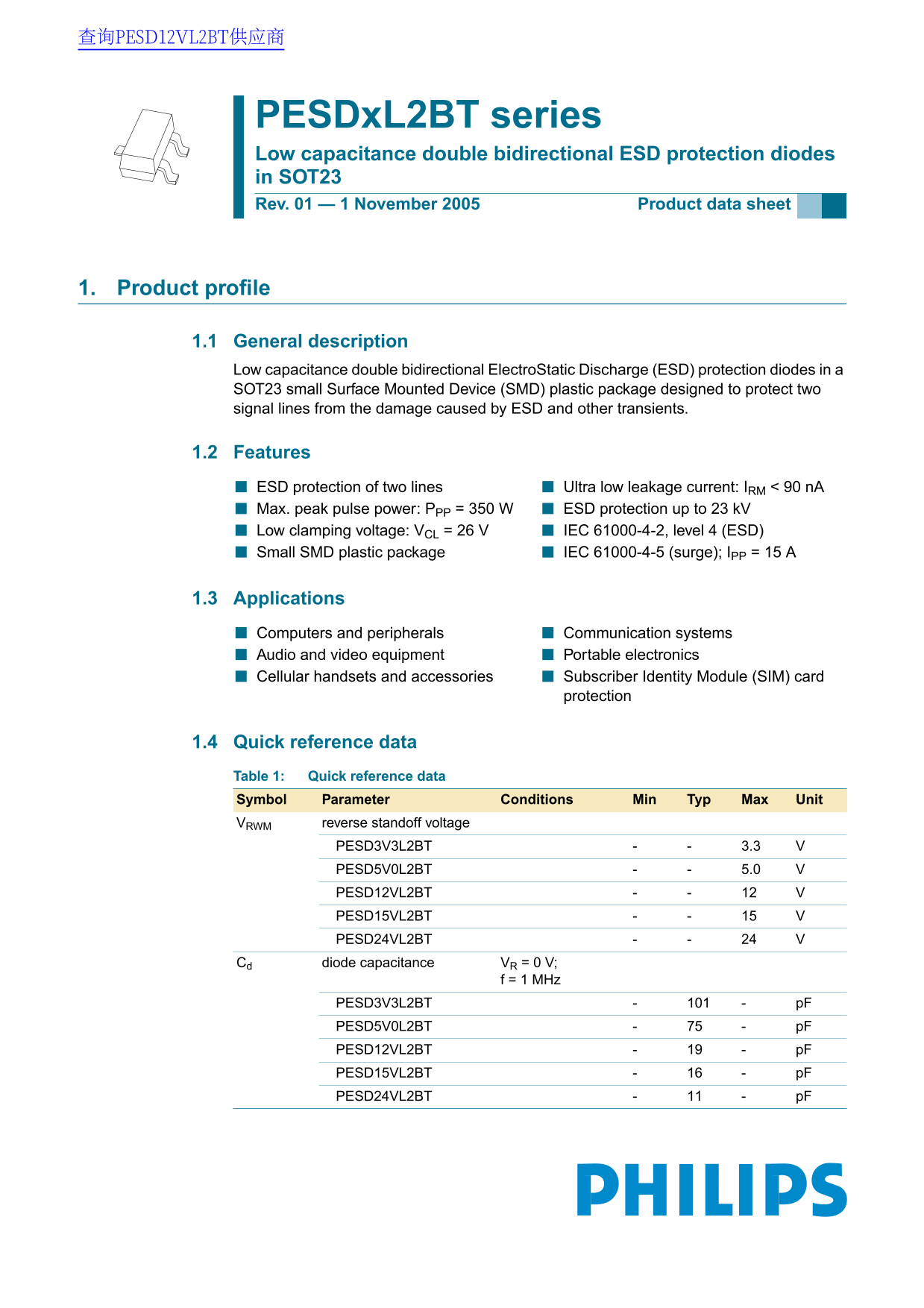

PESDx L2BT series Low capacitance double bidirectional ESD protection diodes in SOT23 Rev. 01 — 1 November 2005 Product data sheet
1. Product profile
1.1 General description Low capacitance double bidirectional Electro Static Discharge (ESD) protection diodes in SOT23 small Surface Mounted Device (SMD) plastic package designed to protect two signal lines from the damage caused by ESD and other transients.
1.2 Features ESD protection of two lines Ultra low leakage current: IRM n A Max. peak pulse power: PPP ESD protection up to 23 k V Low clamping voltage: VCL IEC 61000-4-2, level 4 (ESD)
Small SMD plastic package IEC 61000-4-5 (surge); IPP
1.3 Applications Computers and peripherals Communication systems Audio and video equipment Portable electronics Cellular handsets and accessories Subscriber Identity Module (SIM) card
protection
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VRWM reverse standoff voltage PESD3V3L2BT 3.3 PESD5V0L2BT 5.0 PESD12VL2BT PESD15VL2BT PESD24VL2BT Cd diode capacitance VR V;
PESD3V3L2BT p F PESD5V0L2BT p F PESD12VL2BT p F PESD15VL2BT p F PESD24VL2BT p F
