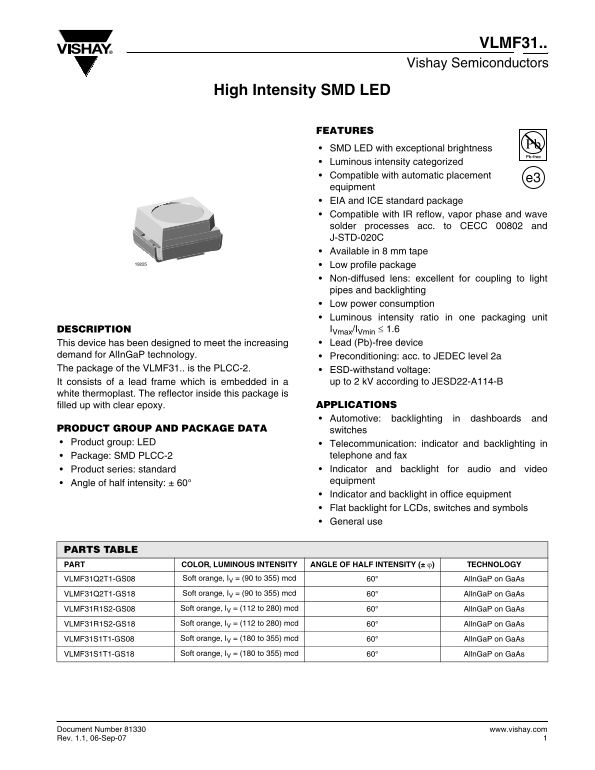

VLMF31..
Vishay Semiconductors
High Intensity SMD LED
FEATURES SMD LED with exceptional brightness Luminous intensity categorized Compatible with automatic placement
equipment EIA and ICE standard package Compatible with IR reflow, vapor phase and wave solder processes acc. to CECC 00802 and J-STD-020C Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Low power consumption Luminous intensity ratio in one packaging unit DESCRIPTION IVmax/IVmin ≤ 1.6 This device has been designed to meet the increasing Lead (Pb)-free device
demand for Al In Ga P technology. Preconditioning: acc. to JEDEC level 2a The package of the VLMF31.. is the PLCC-2. ESD-withstand voltage:
It consists of a lead frame which is embedded in a up to 2 k V according to JESD22-A114-B
white thermoplast. The reflector inside this package is
filled up with clear epoxy. APPLICATIONS Automotive: backlighting in dashboards and
PRODUCT GROUP AND PACKAGE DATA switches Product group: LED Telecommunication: indicator and backlighting in
Package: SMD PLCC-2 telephone and fax Product series: standard Indicator and backlight for audio and video equipment
Angle of half intensity: ± 60°
Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use
PARTS TABLE PART COLOR, LUMINOUS INTENSITY ANGLE OF HALF INTENSITY (± ϕ) TECHNOLOGY
VLMF31Q2T1-GS08 Soft orange, IV = (90 to 355) mcd 60° Alln Ga P on Ga As
VLMF31Q2T1-GS18 Soft orange, IV = (90 to 355) mcd 60° Alln Ga P on Ga As
VLMF31R1S2-GS08 Soft orange, IV = (112 to 280) mcd 60° Alln Ga P on Ga As
VLMF31R1S2-GS18 Soft orange, IV = (112 to 280) mcd 60° Alln Ga P on Ga As
VLMF31S1T1-GS08 Soft orange, IV = (180 to 355) mcd 60° Alln Ga P on Ga As
VLMF31S1T1-GS18 Soft orange, IV = (180 to 355) mcd 60° Alln Ga P on Ga As
