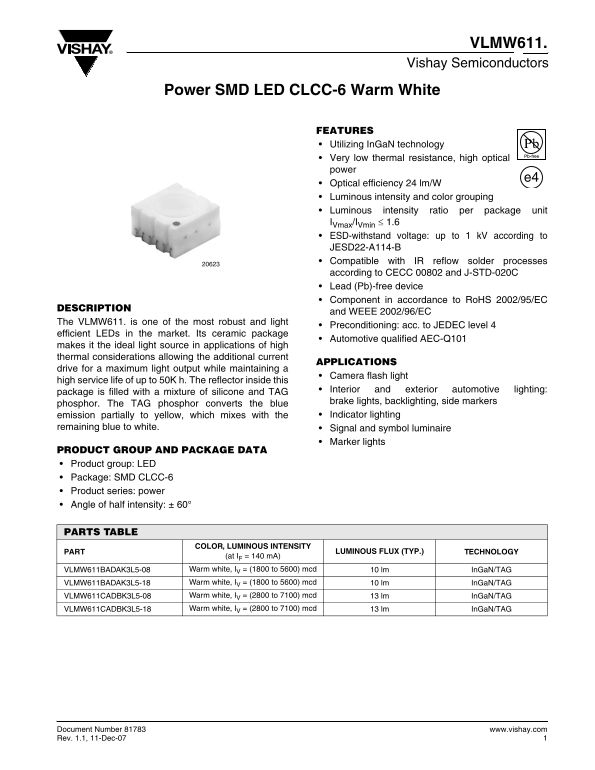

VLMW611.
Vishay Semiconductors
Power SMD LED CLCC-6 Warm White
FEATURES Utilizing In Ga N technology Very low thermal resistance, high optical power
Optical efficiency 24 lm/W Luminous intensity and color grouping Luminous intensity ratio per package unit IVmax/IVmin ≤ 1.6 ESD-withstand voltage: up to 1 k V according to JESD22-A114-B Compatible with IR reflow solder processes according to CECC 00802 and J-STD-020C Lead (Pb)-free device Component in accordance to Ro HS 2002/95/EC
DESCRIPTION
and WEEE 2002/96/EC
The VLMW611. is one of the most robust and light
Preconditioning: acc. to JEDEC level 4
efficient LEDs in the market. Its ceramic package
Automotive qualified AEC-Q101
makes it the ideal light source in applications of high thermal considerations allowing the additional current
APPLICATIONS
drive for a maximum light output while maintaining a
Camera flash light
high service life of up to 50K h. The reflector inside this
Interior and exterior automotive lighting:
package is filled with a mixture of silicone and TAG
brake lights, backlighting, side markers
phosphor. The TAG phosphor converts the blue
emission partially to yellow, which mixes with the Indicator lighting
remaining blue to white. Signal and symbol luminaire
Marker lights
PRODUCT GROUP AND PACKAGE DATA Product group: LED Package: SMD CLCC-6 Product series: power Angle of half intensity: ± 60°
PARTS TABLE
COLOR, LUMINOUS INTENSITY
PART LUMINOUS FLUX (TYP.) TECHNOLOGY
(at IF = 140 m A)
VLMW611BADAK3L5-08 Warm white, IV = (1800 to 5600) mcd 10 lm In Ga N/TAG VLMW611BADAK3L5-18 Warm white, IV = (1800 to 5600) mcd 10 lm In Ga N/TAG VLMW611CADBK3L5-08 Warm white, IV = (2800 to 7100) mcd 13 lm In Ga N/TAG VLMW611CADBK3L5-18 Warm white, IV = (2800 to 7100) mcd 13 lm In Ga N/TAG
