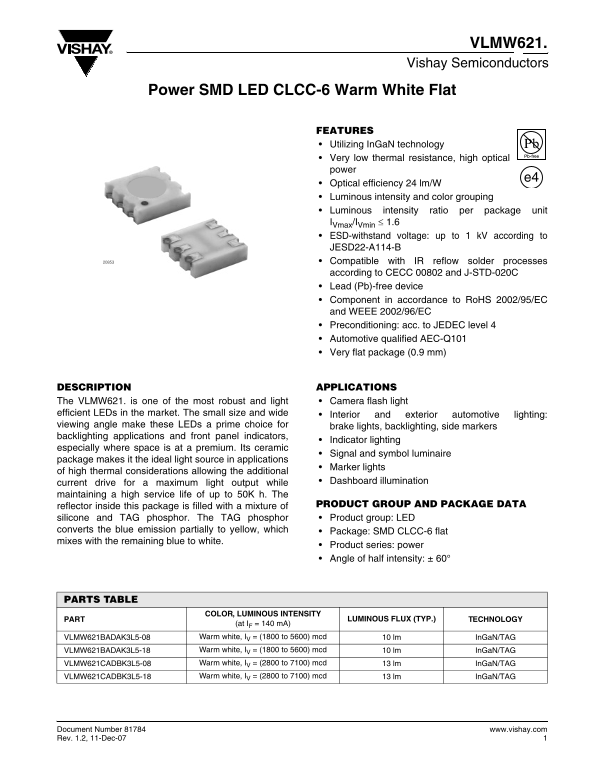

Vishay VLMW621. Power SMD LED CLCC-6 Warm White Flat Data Sheet User Manual

VLMW621.

Vishay Semiconductors

Power SMD LED CLCC-6 Warm White Flat

FEATURES Utilizing In Ga N technology Very low thermal resistance, high optical power

Optical efficiency 24 lm/W Luminous intensity and color grouping Luminous intensity ratio per package unit IVmax/IVmin ≤ 1.6 ESD-withstand voltage: up to 1 k V according to JESD22-A114-B Compatible with IR reflow solder processes according to CECC 00802 and J-STD-020C Lead (Pb)-free device Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Preconditioning: acc. to JEDEC level 4 Automotive qualified AEC-Q101 Very flat package (0.9 mm)

DESCRIPTION APPLICATIONS The VLMW621. is one of the most robust and light Camera flash light

efficient LEDs in the market. The small size and wide Interior and exterior automotive lighting: viewing angle make these LEDs a prime choice for brake lights, backlighting, side markers backlighting applications and front panel indicators,

Indicator lighting

especially where space is at a premium. Its ceramic

Signal and symbol luminaire

package makes it the ideal light source in applications

Marker lights

of high thermal considerations allowing the additional

current drive for a maximum light output while Dashboard illumination

maintaining a high service life of up to 50K h. The

reflector inside this package is filled with a mixture of PRODUCT GROUP AND PACKAGE DATA silicone and TAG phosphor. The TAG phosphor Product group: LED

converts the blue emission partially to yellow, which Package: SMD CLCC-6 flat mixes with the remaining blue to white.

Product series: power Angle of half intensity: ± 60°

PARTS TABLE

COLOR, LUMINOUS INTENSITY

PART LUMINOUS FLUX (TYP.) TECHNOLOGY

(at IF = 140 m A)

VLMW621BADAK3L5-08 Warm white, IV = (1800 to 5600) mcd 10 lm In Ga N/TAG VLMW621BADAK3L5-18 Warm white, IV = (1800 to 5600) mcd 10 lm In Ga N/TAG VLMW621CADBK3L5-08 Warm white, IV = (2800 to 7100) mcd 13 lm In Ga N/TAG VLMW621CADBK3L5-18 Warm white, IV = (2800 to 7100) mcd 13 lm In Ga N/TAG

Document Number 81784 www.vishay.com Rev. 1.2, 11-Dec-07
