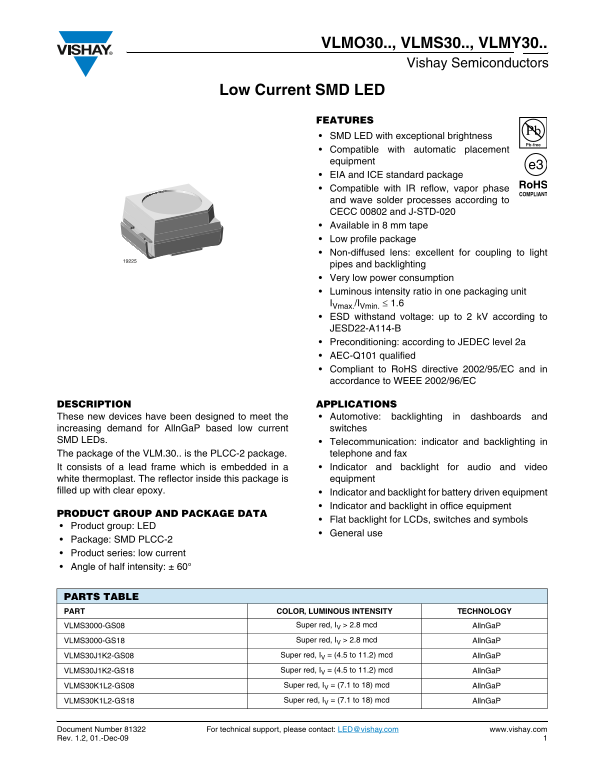

VLMO30.., VLMS30.., VLMY30..
Vishay Semiconductors
Low Current SMD LED
FEATURES SMD LED with exceptional brightness Compatible with automatic placement equipment EIA and ICE standard package Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020 Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Very low power consumption Luminous intensity ratio in one packaging unit IVmax./IVmin. ≤ 1.6 ESD withstand voltage: up to 2 k V according to JESD22-A114-B Preconditioning: according to JEDEC level 2a AEC-Q101 qualified Compliant to Ro HS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
DESCRIPTION APPLICATIONS These new devices have been designed to meet the Automotive: backlighting in dashboards and increasing demand for Alln Ga P based low current switches
SMD LEDs. Telecommunication: indicator and backlighting in
The package of the VLM.30.. is the PLCC-2 package. telephone and fax It consists of a lead frame which is embedded in a Indicator and backlight for audio and video white thermoplast. The reflector inside this package is equipment
filled up with clear epoxy. Indicator and backlight for battery driven equipment
Indicator and backlight in office equipment
PRODUCT GROUP AND PACKAGE DATA
Flat backlight for LCDs, switches and symbols
Product group: LED
General use
Package: SMD PLCC-2 Product series: low current Angle of half intensity: ± 60°
PARTS TABLE PART COLOR, LUMINOUS INTENSITY TECHNOLOGY
VLMS3000-GS08 Super red, IV > 2.8 mcd Alln Ga P
VLMS3000-GS18 Super red, IV > 2.8 mcd Alln Ga P
VLMS30J1K2-GS08 Super red, IV = (4.5 to 11.2) mcd Alln Ga P
VLMS30J1K2-GS18 Super red, IV = (4.5 to 11.2) mcd Alln Ga P
VLMS30K1L2-GS08 Super red, IV = (7.1 to 18) mcd Alln Ga P
VLMS30K1L2-GS18 Super red, IV = (7.1 to 18) mcd Alln Ga P
Document Number 81322 For technical support, please contact: [email protected] www.vishay.com Rev. 1.2, 01.-Dec-09
