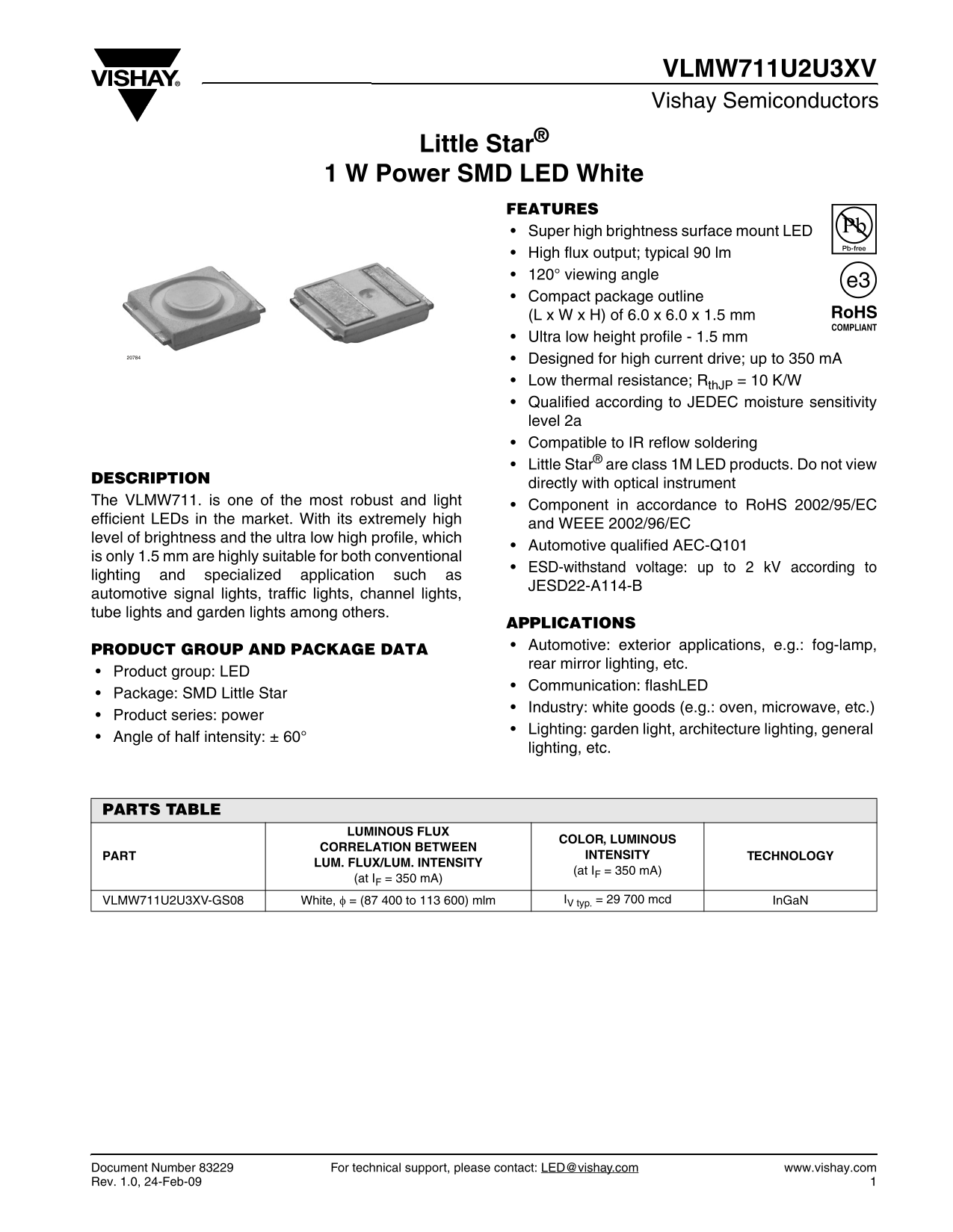

VLMW711U2U3XV Vishay Semiconductors
Little Star®
1 W Power SMD LED White
FEATURES Super high brightness surface mount LED High flux output; typical 90 lm 120° viewing angle Compact package outline (L x W x H) of 6.0 x 6.0 x 1.5 mm Ultra low height profile - 1.5 mm Designed for high current drive; up to 350 m A Low thermal resistance; Rth JP = 10 K/W Qualified according to JEDEC moisture sensitivity level 2a Compatible to IR reflow soldering Little Star® are class 1M LED products. Do not view
DESCRIPTION
directly with optical instrument
The VLMW711. is one of the most robust and light
Component in accordance to Ro HS 2002/95/EC
efficient LEDs in the market. With its extremely high
and WEEE 2002/96/EC
level of brightness and the ultra low high profile, which
Automotive qualified AEC-Q101
is only 1.5 mm are highly suitable for both conventional
ESD-withstand voltage: up to 2 k V according to
lighting and specialized application such as
JESD22-A114-B
automotive signal lights, traffic lights, channel lights, tube lights and garden lights among others.
APPLICATIONS Automotive: exterior applications, e.g.: fog-lamp,
PRODUCT GROUP AND PACKAGE DATA
rear mirror lighting, etc.
Product group: LED
Communication: flash LED
Package: SMD Little Star
Industry: white goods (e.g.: oven, microwave, etc.)
Product series: power
Lighting: garden light, architecture lighting, general
Angle of half intensity: ± 60°
lighting, etc.
PARTS TABLE
LUMINOUS FLUX
COLOR, LUMINOUS
CORRELATION BETWEEN
PART INTENSITY TECHNOLOGY
LUM. FLUX/LUM. INTENSITY
(at IF = 350 m A)
(at IF = 350 m A)
VLMW711U2U3XV-GS08 White, φ = (87 400 to 113 600) mlm IV typ. = 29 700 mcd In Ga N
