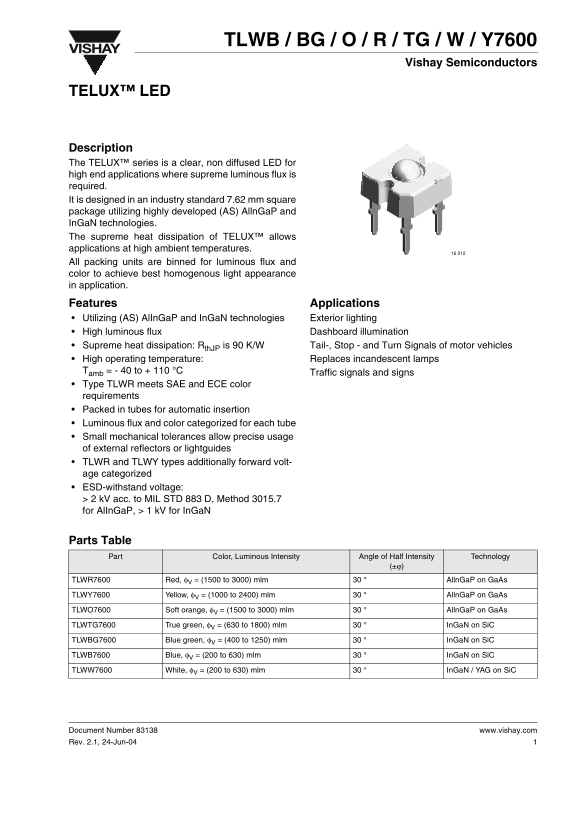

TLWB / BG / O / R / TG / W / Y7600
VISHAY
Vishay Semiconductors
TELUX™ LED
Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) Alln Ga P and In Ga N technologies. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application.
Features Applications Utilizing (AS) Al In Ga P and In Ga N technologies Exterior lighting High luminous flux Dashboard illumination Supreme heat dissipation: Rth JP is 90 K/W Tail-, Stop - and Turn Signals of motor vehicles
High operating temperature: Replaces incandescent lamps
Tamb = - 40 to + 110 °C Traffic signals and signs Type TLWR meets SAE and ECE color requirements Packed in tubes for automatic insertion Luminous flux and color categorized for each tube Small mechanical tolerances allow precise usage of external reflectors or lightguides TLWR and TLWY types additionally forward volt- age categorized ESD-withstand voltage: > 2 k V acc. to MIL STD 883 D, Method 3015.7 for Al In Ga P, > 1 k V for In Ga N
Parts Table Part Color, Luminous Intensity Angle of Half Intensity Technology
TLWR7600 Red, φV = (1500 to 3000) mlm Alln Ga P on Ga As
TLWY7600 Yellow, φV = (1000 to 2400) mlm Alln Ga P on Ga As
TLWO7600 Soft orange, φV = (1500 to 3000) mlm Alln Ga P on Ga As
TLWTG7600 True green, φV = (630 to 1800) mlm In Ga N on Si C
TLWBG7600 Blue green, φV = (400 to 1250) mlm In Ga N on Si C
TLWB7600 Blue, φV = (200 to 630) mlm In Ga N on Si C
TLWW7600 White, φV = (200 to 630) mlm In Ga N / YAG on Si C
