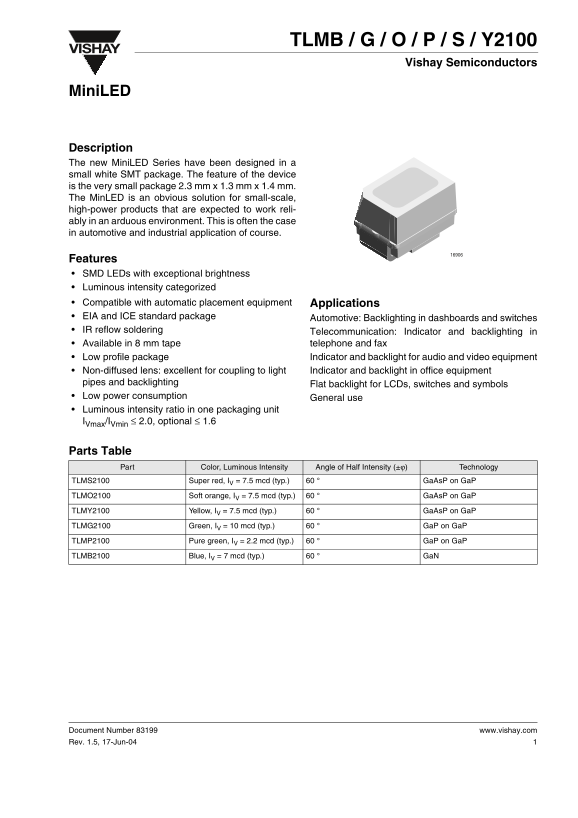

TLMB / G / O / P / S / Y2100
VISHAY
Vishay Semiconductors
Mini LED
Description The new Mini LED Series have been designed in a small white SMT package. The feature of the device is the very small package 2.3 mm x 1.3 mm x 1.4 mm. The Min LED is an obvious solution for small-scale, high-power products that are expected to work reli- ably in an arduous environment. This is often the case in automotive and industrial application of course.
Features SMD LEDs with exceptional brightness Luminous intensity categorized Compatible with automatic placement equipment Applications EIA and ICE standard package Automotive: Backlighting in dashboards and switches IR reflow soldering Telecommunication: Indicator and backlighting in Available in 8 mm tape telephone and fax Low profile package Indicator and backlight for audio and video equipment Non-diffused lens: excellent for coupling to light Indicator and backlight in office equipment pipes and backlighting Flat backlight for LCDs, switches and symbols Low power consumption General use Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 2.0, optional ≤ 1.6
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLMS2100 Super red, IV = 7.5 mcd (typ.) Ga As P on Ga P
TLMO2100 Soft orange, IV = 7.5 mcd (typ.) Ga As P on Ga P
TLMY2100 Yellow, IV = 7.5 mcd (typ.) Ga As P on Ga P
TLMG2100 Green, IV = 10 mcd (typ.) Ga P on Ga P
TLMP2100 Pure green, IV = 2.2 mcd (typ.) Ga P on Ga P
TLMB2100 Blue, IV = 7 mcd (typ.) Ga N
