Discover high-brightness, low-power Surface Mount Device (SMD) LEDs engineered for critical indication and backlighting applications across various industries. Available in optimized colors like Red, Orange, and Yellow, these reliable components are ideal for automotive dashboards, telecommunications, and general consumer electronics. This manual provides comprehensive technical data, covering electrical ratings, optimal optical performance, and assembly compatibility with common soldering processes (including IR-Reflow). Designed to be lead-free and RoHS compliant, they ensure dependable illumination for modern equipment.

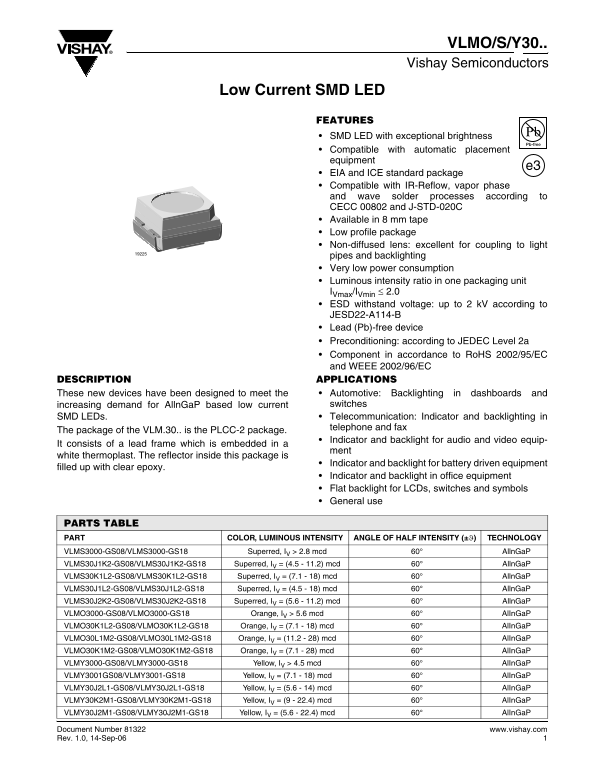

Page 1 Text Content
VLMO/S/Y30.. Vishay Semiconductors
Low Current SMD LED
FEATURES SMD LED with exceptional brightness Compatible with automatic placement equipment
EIA and ICE standard package Compatible with IR-Reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Very low power consumption Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 2.0 ESD withstand voltage: up to 2 k V according to JESD22-A114-B Lead (Pb)-free device Preconditioning: according to JEDEC Level 2a Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC DESCRIPTION APPLICATIONS These new devices have been designed to meet the Automotive: Backlighting in dashboards and increasing demand for Alln Ga P based low current switches SMD LEDs. Telecommunication: Indicator and backlighting in telephone and fax
The package of the VLM.30.. is the PLCC-2 package.
Indicator and backlight for audio and video equip-
It consists of a lead frame which is embedded in a
white thermoplast. The reflector inside this package is
Indicator and backlight for battery driven equipment
filled up with clear epoxy.
Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use
PARTS TABLE PART COLOR, LUMINOUS INTENSITY ANGLE OF HALF INTENSITY (±ϑ) TECHNOLOGY
VLMS3000-GS08/VLMS3000-GS18 Superred, IV > 2.8 mcd 60° Alln Ga P
VLMS30J1K2-GS08/VLMS30J1K2-GS18 Superred, IV = (4.5 - 11.2) mcd 60° Alln Ga P
VLMS30K1L2-GS08/VLMS30K1L2-GS18 Superred, IV = (7.1 - 18) mcd 60° Alln Ga P
VLMS30J1L2-GS08/VLMS30J1L2-GS18 Superred, IV = (4.5 - 18) mcd 60° Alln Ga P VLMS30J2K2-GS08/VLMS30J2K2-GS18 Superred, IV = (5.6 - 11.2) mcd 60° Alln Ga P
VLMO3000-GS08/VLMO3000-GS18 Orange, IV > 5.6 mcd 60° Al In Ga P
VLMO30K1L2-GS08/VLMO30K1L2-GS18 Orange, IV = (7.1 - 18) mcd 60° Al In Ga P
VLMO30L1M2-GS08/VLMO30L1M2-GS18 Orange, IV = (11.2 - 28) mcd 60° Al In Ga P
VLMO30K1M2-GS08/VLMO30K1M2-GS18 Orange, IV = (7.1 - 28) mcd 60° Al In Ga P VLMY3000-GS08/VLMY3000-GS18 Yellow, IV > 4.5 mcd 60° Al In Ga P
VLMY3001GS08/VLMY3001-GS18 Yellow, IV = (7.1 - 18) mcd 60° Al In Ga P
VLMY30J2L1-GS08/VLMY30J2L1-GS18 Yellow, IV = (5.6 - 14) mcd 60° Al In Ga P
VLMY30K2M1-GS08/VLMY30K2M1-GS18 Yellow, IV = (9 - 22.4) mcd 60° Al In Ga P
VLMY30J2M1-GS08/VLMY30J2M1-GS18 Yellow, IV = (5.6 - 22.4) mcd 60° Al In Ga P
Document Number 81322 www.vishay.com Rev. 1.0, 14-Sep-06
Page Summary Contents For Vishay VLMO S Y30.. Data Handbook
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 9 |
| File Size | 152.29 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What soldering methods are compatible with these LEDs?
They are compatible with IR-Reflow, vapor phase, and wave solder processes.
Can I use this component in life-sustaining medical devices?
No. The products are not designed for use in medical, life-saving, or life-sustaining applications.
What is the maximum rated power dissipation (P)?
The absolute maximum rating for power dissipation is 40 mW.
Are these components environmentally compliant?
Yes, they are Lead (Pb)-free and comply with RoHS and WEEE standards.
