The Vishay Siliconix TP0610K is a high-performance P-Channel MOSFET engineered for reliable power switching in diverse circuits. Featuring low On-Resistance, fast switching speed, and ESD protection, it is ideal for driving relays, solenoids, lamps, and solid-state systems in battery-operated or high-speed converters. This manual provides comprehensive technical specifications, electrical characteristics, and thermal data required to properly integrate the device into circuit design.

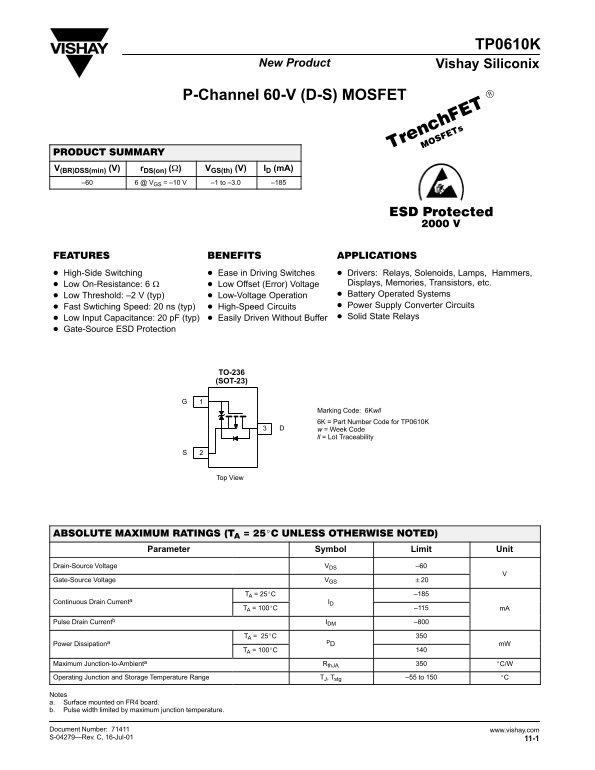

Page 1 Text Content
TP0610K Vishay Siliconix New Product
P-Channel 60-V (D-S) MOSFET
V(BR)DSS(min) (V) r DS(on) () VGS(th) (V) ID (m A) –60 6 @ VGS = –10 V –1 to –3.0 –185
High-Side Switching Ease in Driving Switches Drivers: Relays, Solenoids, Lamps, Hammers, Low On-Resistance: 6 Ω Low Offset (Error) Voltage Displays, Memories, Transistors, etc. Low Threshold: –2 V (typ) Low-Voltage Operation Battery Operated Systems Fast Swtiching Speed: 20 ns (typ) High-Speed Circuits Power Supply Converter Circuits Low Input Capacitance: 20 p F (typ) Easily Driven Without Buffer Solid State Relays
Gate-Source ESD Protection
TO-236 (SOT-23)
Marking Code: 6Kwll 6K = Part Number Code for TP0610K w = Week Code ll = Lot Traceability
Top View
Parameter Symbol Limit Unit
Drain-Source Voltage VDS –60
Gate-Source Voltage VGS
TA = 25C –185
Continuous Drain Currenta ID
TA = 100C –115 m A
Pulse Drain Currentb IDM –800
TA = 25C
Power Dissipationa m W
TA = 100C
Maximum Junction-to-Ambienta Rth JA C/W Operating Junction and Storage Temperature Range TJ, Tstg –55 to 150
Notes a. Surface mounted on FR4 board. b. Pulse width limited by maximum junction temperature.
Document Number: 71411 www.vishay.com S-04279—Rev. C, 16-Jul-01 11-1
Page Summary Contents For Vishay Siliconix - TP0610K Vishay Siliconix New Product Document Number 71411 S-04279—Rev. C, 16-Jul-01 Owner's Manual User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 4 |
| File Size | 47.80 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended application range for this MOSFET?
It supports applications such as High-Side Switching, Solid State Relays, and low-voltage operation power supply converter circuits.
How can I identify the specific part number or lot batch?
The part number code (6Kwll 6K) is visible in the G1 Marking Code. Lot traceability is indicated by the S2 Top View marking.
What are the maximum operating temperatures and junction limits?
The Operating Junction Temperature range is -55 to 150°C, while the Maximum Junction-to-Ambient Power Dissipation occurs at 100°C.
Does this component handle rapid switching or low power needs?
It features a fast switching speed of 20 ns (typ) and can be easily driven without an external buffer due to its low input capacitance (20 pF (typ)).
