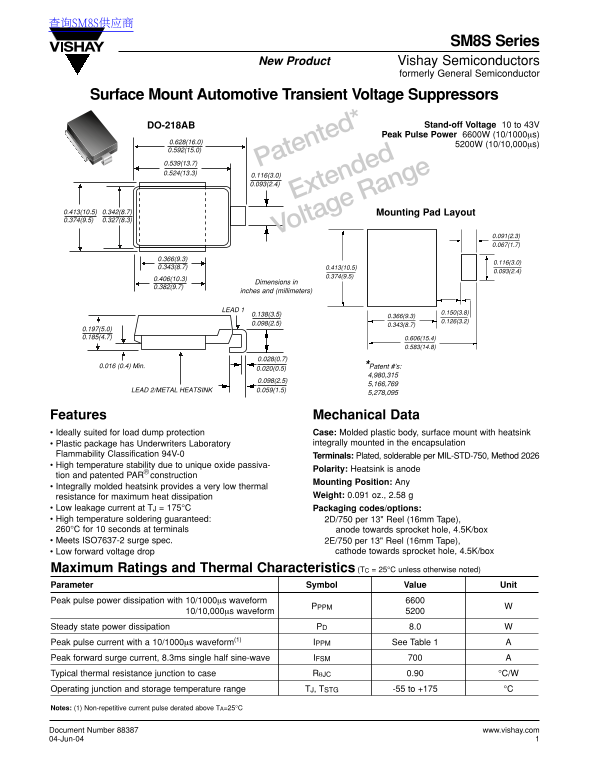

SM8S Series
New Product Vishay Semiconductors
formerly General Semiconductor
Surface Mount Automotive Transient Voltage Suppressors
DO-218AB Stand-off Voltage 10 to 43V
Peak Pulse Power 6600W (10/1000µs)
0.539(13.7) Patented* 0.524(13.3)
Extended
0.413(10.5) 0.342(8.7) Mounting Pad Layout 0.374(9.5) 0.327(8.3)
Voltage Range
Dimensions in
inches and (millimeters)
LEAD 1
0.016 (0.4) Min. *Patent #’s:
LEAD 2/METAL HEATSINK 0.059(1.5)
Features Mechanical Data • Ideally suited for load dump protection Case: Molded plastic body, surface mount with heatsink
• Plastic package has Underwriters Laboratory integrally mounted in the encapsulation
Flammability Classification 94V-0 Terminals: Plated, solderable per MIL-STD-750, Method 2026 • High temperature stability due to unique oxide passiva-
Polarity: Heatsink is anode
tion and patented PAR® construction
Mounting Position: Any
• Integrally molded heatsink provides a very low thermal
resistance for maximum heat dissipation Weight: 0.091 oz., 2.58 g
• Low leakage current at TJ = 175°C Packaging codes/options:
• High temperature soldering guaranteed: 2D/750 per 13" Reel (16mm Tape), 260°C for 10 seconds at terminals anode towards sprocket hole, 4.5K/box • Meets ISO7637-2 surge spec. 2E/750 per 13" Reel (16mm Tape),
• Low forward voltage drop cathode towards sprocket hole, 4.5K/box
Maximum Ratings and Thermal Characteristics (TC = 25°C unless otherwise noted) Parameter Symbol Value Unit Peak pulse power dissipation with 10/1000µs waveform
10/10,000µs waveform
Steady state power dissipation PD 8.0 Peak pulse current with a 10/1000µs waveform(1) IPPM See Table 1 Peak forward surge current, 8.3ms single half sine-wave IFSM Typical thermal resistance junction to case RθJC 0.90 °C/W Operating junction and storage temperature range TJ, TSTG -55 to +175 °C
Notes: (1) Non-repetitive current pulse derated above TA=25°C
