The 0603 SMD LED series offers exceptional brightness in one of the industry's smallest packages, enabling miniaturization without sacrificing performance across various crucial wavelengths. This comprehensive guide provides all necessary details, including absolute maximum electrical ratings alongside specific optical and electrical characteristics for multiple color variants (Red, Green, Blue, etc.). It is essential reading for electronics designers and engineers developing high-reliability systems for applications ranging from advanced automotive features and navigation controls to industrial display units.

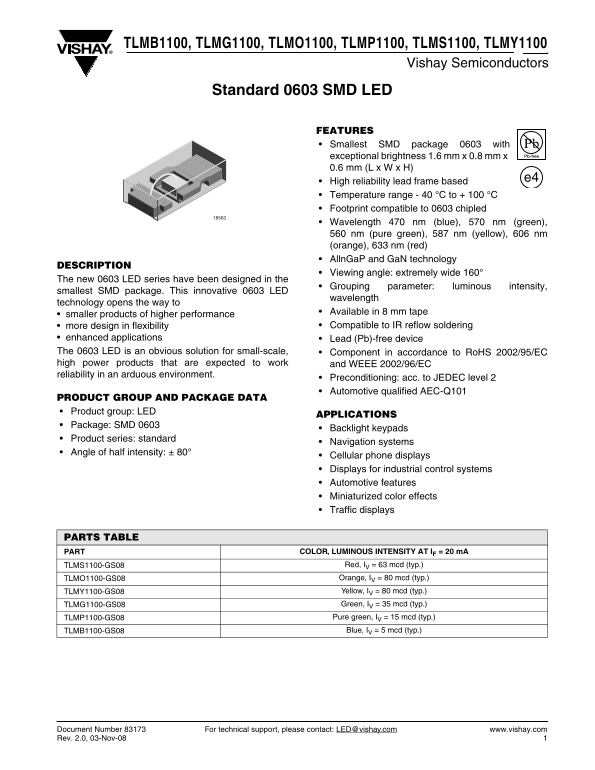

Page 1 Text Content
TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100
Vishay Semiconductors
Standard 0603 SMD LED
FEATURES Smallest SMD package 0603 with exceptional brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H)
High reliability lead frame based Temperature range - 40 °C to + 100 °C Footprint compatible to 0603 chipled Wavelength 470 nm (blue), 570 nm (green), 560 nm (pure green), 587 nm (yellow), 606 nm (orange), 633 nm (red) Alln Ga P and Ga N technology
DESCRIPTION
Viewing angle: extremely wide 160°
The new 0603 LED series have been designed in the
Grouping parameter: luminous intensity,
smallest SMD package. This innovative 0603 LED
wavelength
technology opens the way to
Available in 8 mm tape
• smaller products of higher performance
• more design in flexibility Compatible to IR reflow soldering
• enhanced applications Lead (Pb)-free device The 0603 LED is an obvious solution for small-scale, Component in accordance to Ro HS 2002/95/EC high power products that are expected to work and WEEE 2002/96/EC reliability in an arduous environment.
Preconditioning: acc. to JEDEC level 2 Automotive qualified AEC-Q101
PRODUCT GROUP AND PACKAGE DATA Product group: LED
APPLICATIONS
Package: SMD 0603
Backlight keypads
Product series: standard
Navigation systems
Angle of half intensity: ± 80°
Cellular phone displays Displays for industrial control systems Automotive features Miniaturized color effects Traffic displays
PARTS TABLE
PART COLOR, LUMINOUS INTENSITY AT IF = 20 m A
TLMS1100-GS08 Red, IV = 63 mcd (typ.) TLMO1100-GS08 Orange, IV = 80 mcd (typ.) TLMY1100-GS08 Yellow, IV = 80 mcd (typ.) TLMG1100-GS08 Green, IV = 35 mcd (typ.) TLMP1100-GS08 Pure green, IV = 15 mcd (typ.) TLMB1100-GS08 Blue, IV = 5 mcd (typ.)
Document Number 83173 For technical support, please contact: [email protected] www.vishay.com Rev. 2.0, 03-Nov-08
Page Summary Contents For Vishay Semiconductors Data Handbook / Owner's Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 16 |
| File Size | 207.87 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the physical size and package type of these LEDs?
They are in a small SMD 0603 package, measuring 1.6 mm x 0.8 mm x 0.6 mm.
Do these LEDs support various colors?
Yes, they are available in red (633 nm), orange (606 nm), yellow (587 nm), green (560 nm), blue (470 nm), and multiple other wavelengths.
What is the maximum operating temperature range?
The device can operate in a temperature range of -40 °C to +100 °C.
Are these components compatible with high reliability applications?
They are RoHS and WEEE compliant, lead-free, and preconditioned to JEDEC level 2 for reliable operation in arduous environments.
