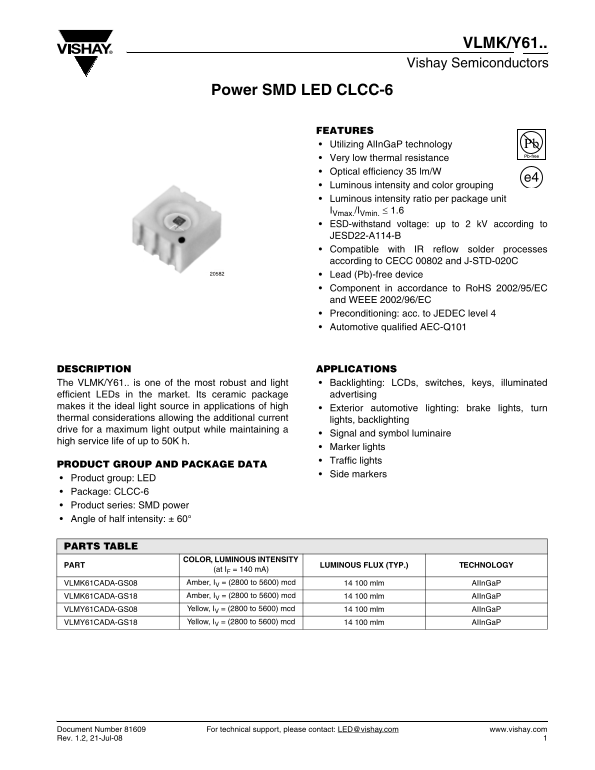

VLMK/Y61.. Vishay Semiconductors
Power SMD LED CLCC-6
FEATURES Utilizing Al In Ga P technology Very low thermal resistance Optical efficiency 35 lm/W
Luminous intensity and color grouping Luminous intensity ratio per package unit IVmax./IVmin. ≤ 1.6 ESD-withstand voltage: up to 2 k V according to JESD22-A114-B Compatible with IR reflow solder processes according to CECC 00802 and J-STD-020C Lead (Pb)-free device Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Preconditioning: acc. to JEDEC level 4 Automotive qualified AEC-Q101
DESCRIPTION APPLICATIONS The VLMK/Y61.. is one of the most robust and light Backlighting: LCDs, switches, keys, illuminated efficient LEDs in the market. Its ceramic package advertising
makes it the ideal light source in applications of high Exterior automotive lighting: brake lights, turn thermal considerations allowing the additional current lights, backlighting drive for a maximum light output while maintaining a
Signal and symbol luminaire
high service life of up to 50K h.
Marker lights Traffic lights
PRODUCT GROUP AND PACKAGE DATA
Side markers
Product group: LED Package: CLCC-6 Product series: SMD power Angle of half intensity: ± 60°
PARTS TABLE
COLOR, LUMINOUS INTENSITY
PART LUMINOUS FLUX (TYP.) TECHNOLOGY
(at IF = 140 m A) VLMK61CADA-GS08 Amber, IV = (2800 to 5600) mcd 14 100 mlm AIIn Ga P VLMK61CADA-GS18 Amber, IV = (2800 to 5600) mcd 14 100 mlm AIIn Ga P VLMY61CADA-GS08 Yellow, IV = (2800 to 5600) mcd 14 100 mlm AIIn Ga P VLMY61CADA-GS18 Yellow, IV = (2800 to 5600) mcd 14 100 mlm AIIn Ga P
Document Number 81609 For technical support, please contact: [email protected] www.vishay.com Rev. 1.2, 21-Jul-08
