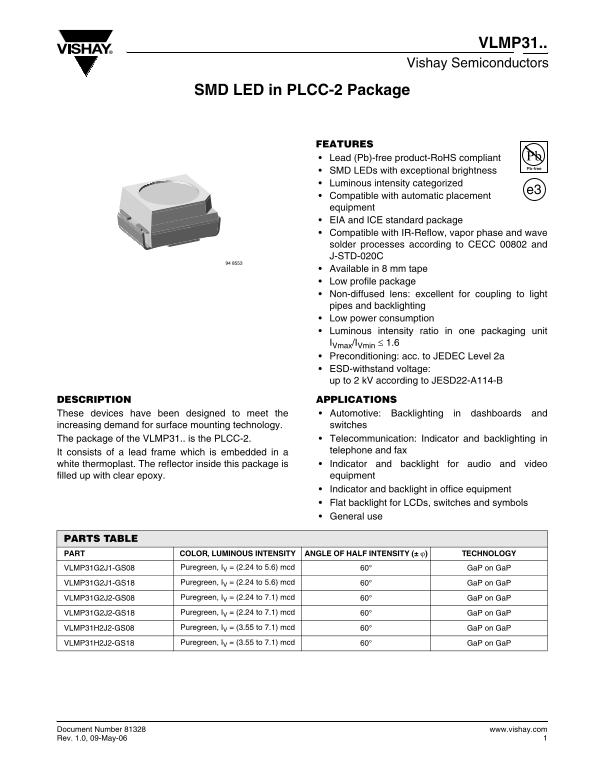

VLMP31..
Vishay Semiconductors
SMD LED in PLCC-2 Package
FEATURES Lead (Pb)-free product-Ro HS compliant SMD LEDs with exceptional brightness Luminous intensity categorized
Compatible with automatic placement equipment EIA and ICE standard package Compatible with IR-Reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Low power consumption Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 1.6 Preconditioning: acc. to JEDEC Level 2a ESD-withstand voltage: up to 2 k V according to JESD22-A114-B
DESCRIPTION APPLICATIONS These devices have been designed to meet the Automotive: Backlighting in dashboards and increasing demand for surface mounting technology. switches The package of the VLMP31.. is the PLCC-2. Telecommunication: Indicator and backlighting in It consists of a lead frame which is embedded in a telephone and fax white thermoplast. The reflector inside this package is Indicator and backlight for audio and video filled up with clear epoxy. equipment Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use
PARTS TABLE PART COLOR, LUMINOUS INTENSITY ANGLE OF HALF INTENSITY (± ϕ) TECHNOLOGY
VLMP31G2J1-GS08 Puregreen, IV = (2.24 to 5.6) mcd 60° Ga P on Ga P
VLMP31G2J1-GS18 Puregreen, IV = (2.24 to 5.6) mcd 60° Ga P on Ga P
VLMP31G2J2-GS08 Puregreen, IV = (2.24 to 7.1) mcd 60° Ga P on Ga P
VLMP31G2J2-GS18 Puregreen, IV = (2.24 to 7.1) mcd 60° Ga P on Ga P
VLMP31H2J2-GS08 Puregreen, IV = (3.55 to 7.1) mcd 60° Ga P on Ga P
VLMP31H2J2-GS18 Puregreen, IV = (3.55 to 7.1) mcd 60° Ga P on Ga P
