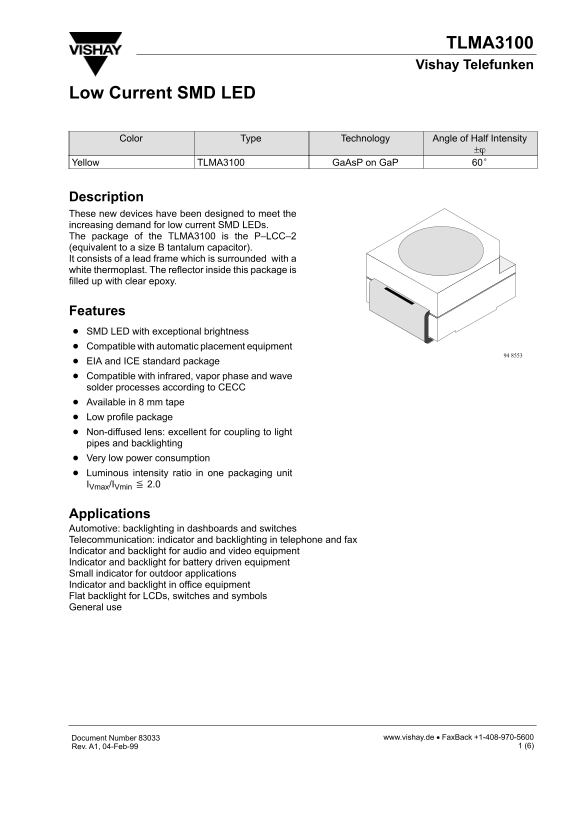

TLMA3100 Vishay Telefunken
Low Current SMD LED
Color Type Technology Angle of Half Intensity
Yellow TLMA3100 Ga As P on Ga P
Description These new devices have been designed to meet the increasing demand for low current SMD LEDs. The package of the TLMA3100 is the P–LCC–2 (equivalent to a size B tantalum capacitor). It consists of a lead frame which is surrounded with a white thermoplast. The reflector inside this package is filled up with clear epoxy.
Features SMD LED with exceptional brightness Compatible with automatic placement equipment
EIA and ICE standard package Compatible with infrared, vapor phase and wave solder processes according to CECC Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Very low power consumption Luminous intensity ratio in one packaging unit IVmax/IVmin 2.0
Applications Automotive: backlighting in dashboards and switches Telecommunication: indicator and backlighting in telephone and fax Indicator and backlight for audio and video equipment Indicator and backlight for battery driven equipment Small indicator for outdoor applications Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use
www.vishay.de • Fax Back +1-408-970-5600Document Number 83033
1 (6)Rev. A1, 04-Feb-99
