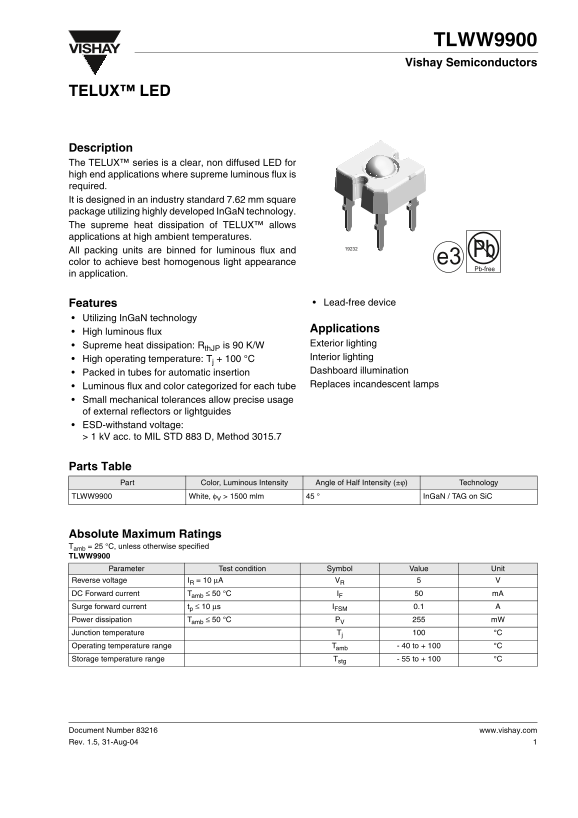

TLWW9900
VISHAY
Vishay Semiconductors
TELUX™ LED
Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed In Ga N technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and Pb
color to achieve best homogenous light appearance e3 Pb-free
in application.
Features Lead-free device
Utilizing In Ga N technology
Applications
High luminous flux
Supreme heat dissipation: Rth JP is 90 K/W Exterior lighting High operating temperature: Tj + 100 °C Interior lighting Packed in tubes for automatic insertion Dashboard illumination Luminous flux and color categorized for each tube Replaces incandescent lamps
Small mechanical tolerances allow precise usage of external reflectors or lightguides ESD-withstand voltage: > 1 k V acc. to MIL STD 883 D, Method 3015.7
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLWW9900 White, φV > 1500 mlm In Ga N / TAG on Si C
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLWW9900
Parameter Test condition Symbol Value Unit
Reverse voltage IR = 10 µA VR
DC Forward current Tamb ≤ 50 °C IF m A
Surge forward current tp ≤ 10 µs IFSM 0.1
Power dissipation Tamb ≤ 50 °C PV m W
Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C
Storage temperature range Tstg - 55 to + 100 °C
Document Number 83216 www.vishay.com Rev. 1.5, 31-Aug-04
