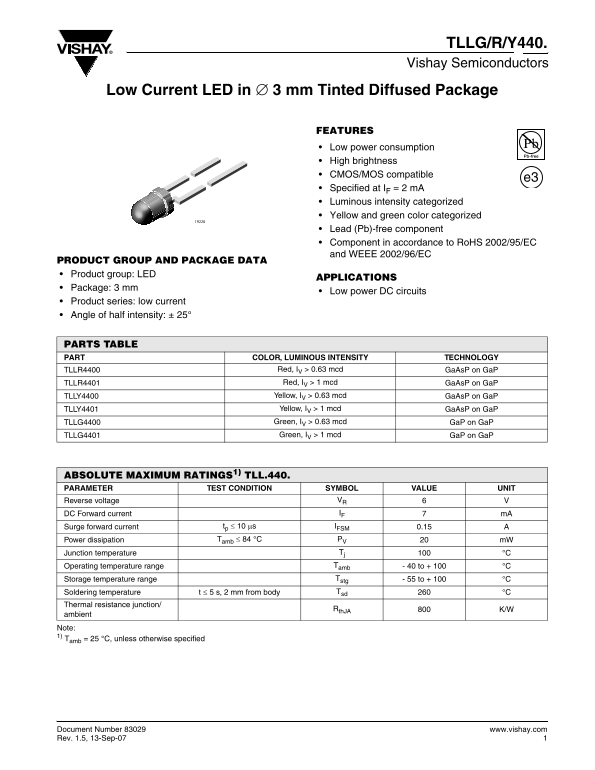

TLLG/R/Y440. Vishay Semiconductors
Low Current LED in ∅ 3 mm Tinted Diffused Package
FEATURES Low power consumption High brightness CMOS/MOS compatible
Specified at IF = 2 m A Luminous intensity categorized Yellow and green color categorized Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
PRODUCT GROUP AND PACKAGE DATA Product group: LED
APPLICATIONS
Package: 3 mm
Low power DC circuits
Product series: low current Angle of half intensity: ± 25°
PARTS TABLE PART COLOR, LUMINOUS INTENSITY TECHNOLOGY
TLLR4400 Red, IV > 0.63 mcd Ga As P on Ga P TLLR4401 Red, IV > 1 mcd Ga As P on Ga P TLLY4400 Yellow, IV > 0.63 mcd Ga As P on Ga P TLLY4401 Yellow, IV > 1 mcd Ga As P on Ga P TLLG4400 Green, IV > 0.63 mcd Ga P on Ga P TLLG4401 Green, IV > 1 mcd Ga P on Ga P
ABSOLUTE MAXIMUM RATINGS1) TLL.440. PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Reverse voltage VR DC Forward current IF m A Surge forward current tp ≤ 10 μs IFSM 0.15
Power dissipation Tamb ≤ 84 °C PV m W
Junction temperature Tj °C Operating temperature range Tamb - 40 to + 100 °C Storage temperature range Tstg - 55 to + 100 °C Soldering temperature t ≤ 5 s, 2 mm from body Tsd °C
Thermal resistance junction/
Rth JA K/W
ambient Note: 1) Tamb = 25
°C, unless otherwise specified
