ST STP08DP05 Low-voltage 8-bit Constant Current LED Sink with Full Outputs Error Detection

Summary

The STP08DP05 is an advanced low voltage, 8-bit constant current sink designed specifically for precise LED driving applications. It provides up to five independent channels with features for adjustable intensity control and comprehensive failure detection (open/short circuits), ensuring reliable system operation. This manual details the device's electrical characteristics, operational parameters, time diagrams, and advanced functionality modes. It is essential reading for electronics designers and engineers integrating high-performance, fault-tolerant LED lighting solutions into portable or display systems.

📄 Preview 📖 Table of Contents Contents PAGE OF 30

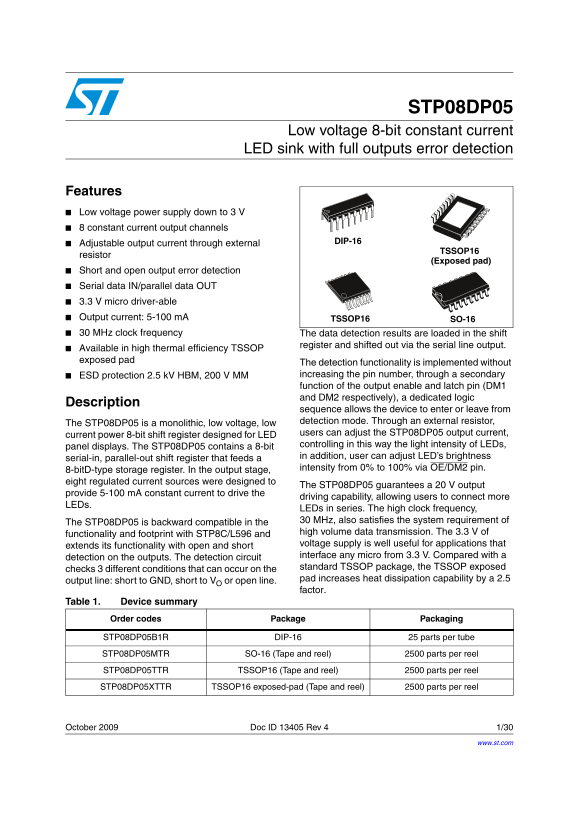

Page 1 Text Content

STP08DP05

Low voltage 8-bit constant current LED sink with full outputs error detection

Features Low voltage power supply down to 3 V 8 constant current output channels

DIP-16

Adjustable output current through external

TSSOP16

resistor

(Exposed pad)

Short and open output error detection Serial data IN/parallel data OUT 3.3 V micro driver-able Output current: 5-100 m A TSSOP16 SO-16 30 MHz clock frequency The data detection results are loaded in the shift

register and shifted out via the serial line output.

Available in high thermal efficiency TSSOP exposed pad

The detection functionality is implemented without ESD protection 2.5 k V HBM, 200 V MM increasing the pin number, through a secondary function of the output enable and latch pin (DM1 and DM2 respectively), a dedicated logic

Description

sequence allows the device to enter or leave from detection mode. Through an external resistor,

The STP08DP05 is a monolithic, low voltage, low

users can adjust the STP08DP05 output current,

current power 8-bit shift register designed for LED

controlling in this way the light intensity of LEDs,

panel displays. The STP08DP05 contains a 8-bit

in addition, user can adjust LED’s brightness

serial-in, parallel-out shift register that feeds a

intensity from 0% to 100% via OE/DM2 pin.

8-bit D-type storage register. In the output stage, eight regulated current sources were designed to

The STP08DP05 guarantees a 20 V output

provide 5-100 m A constant current to drive the

driving capability, allowing users to connect more

LEDs.

LEDs in series. The high clock frequency, 30 MHz, also satisfies the system requirement of

The STP08DP05 is backward compatible in the

high volume data transmission. The 3.3 V of

functionality and footprint with STP8C/L596 and

voltage supply is well useful for applications that

extends its functionality with open and short

interface any micro from 3.3 V. Compared with a

detection on the outputs. The detection circuit

standard TSSOP package, the TSSOP exposed

checks 3 different conditions that can occur on the

pad increases heat dissipation capability by a 2.5

output line: short to GND, short to VO or open line.

factor.

Table 1. Device summary

Order codes Package Packaging

STP08DP05B1R DIP-16 25 parts per tube STP08DP05MTR SO-16 (Tape and reel) 2500 parts per reel STP08DP05TTR TSSOP16 (Tape and reel) 2500 parts per reel STP08DP05XTTR TSSOP16 exposed-pad (Tape and reel) 2500 parts per reel

October 2009 Doc ID 13405 Rev 4 1/30

www.st.com

Page Summary Contents For ST STP08DP05 Low-voltage 8-bit Constant Current LED Sink with Full Outputs Error Detection

Page 1 STP08DP05 Low voltage 8-bit constant current LED sink with full outputs error detection Features Low voltage power supply down to 3 V 8 constant current output channels DIP-16 Adjustable output curren...
Page 2 Contents STP08DP05 Contents Summary description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin connection and description . . . . . . . . . . . . . . . . . ....
Page 3 STP08DP05 Summary description 1 Summary description Table 2. Typical current accuracy Current accuracy Output voltage Output current Between bits Between ICs ≥1.3 V ±1.5% ±5% 20 to 100 m A 1.1 Pin con...
Page 4 Block diagram STP08DP05 2 Block diagram Figure 2. Normal mode - block diagram 4/30 Doc ID 13405 Rev 4
Page 5 STP08DP05 Maximum rating 3 Maximum rating Stressing the device above the rating listed in the “absolute maximum ratings” table may cause permanent damage to the device. These are stress ratings only a...
Page 6 Maximum rating STP08DP05 3.3 Recommended operating conditions Table 6. Recommended operating conditions Symbol Parameter Test conditions Min. Typ. Max. Unit VDD Supply voltage 3.0 5.5 VO Output voltag...
Page 7 STP08DP05 Electrical characteristics 4 Electrical characteristics VDD = 3.3 V to 5 V, T = 25 °C, unless otherwise specified. Table 7. Electrical characteristics Symbol Parameter Test conditions Min. T...
Page 8 Switching characteristics STP08DP05 5 Switching characteristics VDD = 5 V, T = 25 °C, unless otherwise specified. Table 8. Switching characteristics Symbol Parameter Test conditions Min. Typ. Max. Uni...
Page 9 STP08DP05 Equivalent circuit and outputs 6 Equivalent circuit and outputs Figure 3. OE/DM2 terminal Figure 4. LE/DM1 terminal Figure 5. CLK, SDI terminal Figure 6. SDO terminal Doc ID 13405 Rev 4 9/30
Page 10 Truth table and timing diagram STP08DP05 7 Truth table and timing diagram 7.1 Truth table Table 9. Truth table Clock LE/DM1 OE/DM2 SDI OUT0 ........ OUT0 ........ OUT7 SDO H L Dn Dn ..... Dn -5 ..... ...
Page 11 STP08DP05 Truth table and timing diagram Figure 8. Clock, serial-in, serial-out Figure 9. Clock, serial-in, latch, enable, outputs Doc ID 13405 Rev 4 11/30
Page 12 Truth table and timing diagram STP08DP05 Figure 10. Outputs 12/30 Doc ID 13405 Rev 4
Page 13 STP08DP05 Typical characteristics 8 Typical characteristics Figure 11. Output current-REXT resistor TA = 25 °C, Vdrop = 0.3 V; 1.2 V, Iset = 3 m A; 5 m A; 10 m A; 20 m A; 50 m A; 80 m A, Max Table 10....
Page 14 Typical characteristics STP08DP05 Figure 12. ISET vs drop out voltage (VDROP) dr op (m Vdd 5.0V Vdd 3.0V Iset (m A) Table 11. ISET vs drop out voltage (VDROP) Vdd I set Rext Vdrop min Vdrop max Vdrop ...
Page 15 STP08DP05 Typical characteristics Figure 13. Power dissipation vs temperature package Note: The exposed-pad should be soldered to the PBC to realize the thermal benefits. Doc ID 13405 Rev 4 15/30
Page 16 Test circuit STP08DP05 9 Test circuit Figure 14. DC characteristics Figure 15. AC characteristics 16/30 Doc ID 13405 Rev 4
Page 17 STP08DP05 Test circuit Figure 16. Timing example for open and/or short detection Doc ID 13405 Rev 4 17/30
Page 18 Detection mode functionality STP08DP05 10 Detection mode functionality 10.1 Phase one: “entering in detection mode“ From the “normal mode” condition the device can switch to the “error mode” by a logi...
Page 19 STP08DP05 Detection mode functionality 10.2 Phase two: “error detection“ The eight data bits must be set “1” in order to set ON all the outputs during the detection. The data are latched by LE/DM1 and...
Page 20 Detection mode functionality STP08DP05 10.3 Phase three: “resuming to normal mode” The sequence for re-entering in normal mode is showed in the following table and diagram: Table 13. Resuming to norma...
Page 21 STP08DP05 Detection mode functionality 10.4 Error detection conditions VDD = 3.3 to 5 V temperature range 25 °C. Table 14. Detection condition Open line or output No error SW-1 or SW-3b short to GND =...
Page 22 Package mechanical data STP08DP05 11 Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of ...
Page 23 STP08DP05 Package mechanical data Plastic DIP-16 (0.25) MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. Doc ID 13405 Rev 4 23/30
Page 24 Package mechanical data STP08DP05 TSSOP16 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. 0.65 BSC 0.0256 BSC PIN 1 IDENTIFICATION 24/30 Doc ID 13405 Rev 4
Page 25 STP08DP05 Package mechanical data TSSOP16 EXPOSED PAD MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. Doc ID 13405 Rev 4 25/30
Page 26 Package mechanical data STP08DP05 Tape & Reel TSSOP16 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. Ao 6.7 6.9 0.264 0.272 Bo 5.3 5.5 0.209 0.217 Ko 1.6 1.8 0.063 0.071 Po 3.9 4.1 0.153 0....
Page 27 STP08DP05 Package mechanical data SO-16 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. c1 45° (typ.) 0.62 0.024 8° (max.) Doc ID 13405 Rev 4 27/30
Page 28 Package mechanical data STP08DP05 Tape & Reel SO-16 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. Ao 6.45 6.65 0.254 0.262 Bo 10.3 10.5 0.406 0.414 Ko 2.1 2.3 0.082 0.090 Po 3.9 4.1 0.153 ...
Page 29 STP08DP05 Revision history 12 Revision history Table 15. Document revision history Date Revision Changes 3-Apr-2007 First release 21-May-2007 Updated Table 7 on page Updated Section 8: Typical charact...
Page 30 STP08DP05 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, co...
