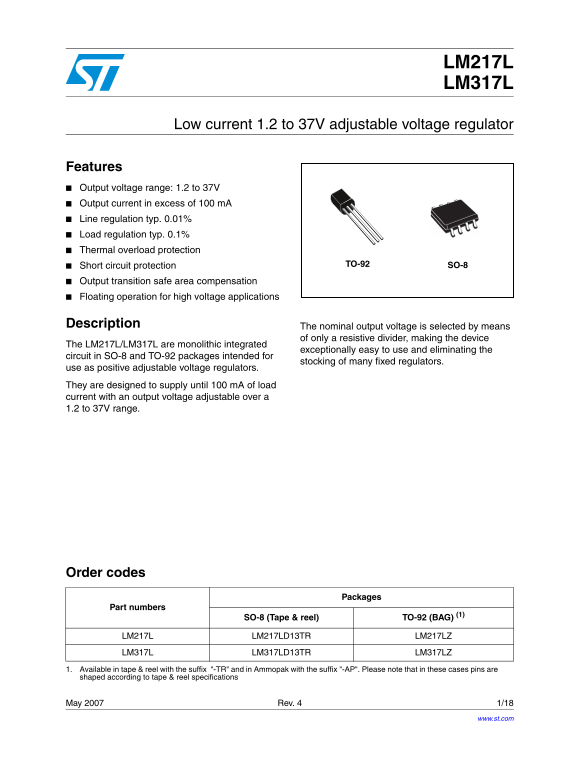

LM217L LM317L
Low current 1.2 to 37V adjustable voltage regulator
Features Output voltage range: 1.2 to 37V Output current in excess of 100 m A Line regulation typ. 0.01% Load regulation typ. 0.1% Thermal overload protection
Short circuit protection SO-8TO-92
Output transition safe area compensation Floating operation for high voltage applications
Description The nominal output voltage is selected by means
of only a resistive divider, making the device
The LM217L/LM317L are monolithic integrated
exceptionally easy to use and eliminating the
circuit in SO-8 and TO-92 packages intended for
stocking of many fixed regulators.
use as positive adjustable voltage regulators. They are designed to supply until 100 m A of load current with an output voltage adjustable over a 1.2 to 37V range.
Order codes
Packages
Part numbers
SO-8 (Tape & reel) TO-92 (BAG) (1)
LM217L LM217LD13TR LM217LZ LM317L LM317LD13TR LM317LZ
1. Available in tape & reel with the suffix "-TR" and in Ammopak with the suffix "-AP". Please note that in these cases pins are shaped according to tape & reel specifications
