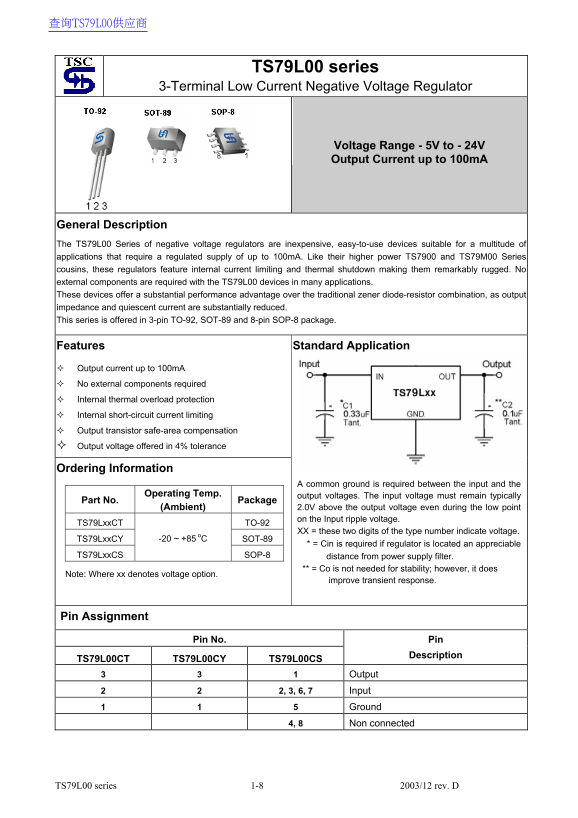

TS79L00 series

3-Terminal Low Current Negative Voltage Regulator

Voltage Range - 5V to - 24V Output Current up to 100m A

General Description The TS79L00 Series of negative voltage regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100m A. Like their higher power TS7900 and TS79M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS79L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantially reduced. This series is offered in 3-pin TO-92, SOT-89 and 8-pin SOP-8 package.

Features Standard Application Output current up to 100m A No external components required Internal thermal overload protection Internal short-circuit current limiting Output transistor safe-area compensation Output voltage offered in 4% tolerance

Ordering Information

A common ground is required between the input and the

Operating Temp. output voltages. The input voltage must remain typically

Part No. Package

(Ambient) 2.0V above the output voltage even during the low point

on the Input ripple voltage.

TS79Lxx CT TO-92

XX = these two digits of the type number indicate voltage.

TS79Lxx CY SOT-89 -20 ~ +85 o C

* = Cin is required if regulator is located an appreciable

TS79Lxx CS SOP-8 distance from power supply filter.

** = Co is not needed for stability; however, it does

Note: Where xx denotes voltage option.

improve transient response.

Pin Assignment

Pin No. Pin

Description

TS79L00CT TS79L00CY TS79L00CS 3 3 1 Output 2 2 2, 3, 6, 7 Input 1 1 5 Ground 4, 8 Non connected

TS79L00 series 1-8 2003/12 rev. D
