RICOH RP105x SERIES Low Voltage 400mA LDO Regulator Data Sheet User Manual

Summary

The RP105x series is a high-performance, CMOS-based Low Dropout Regulator (LDO) designed for powering portable and battery-operated electronics. Capable of handling up to 400mA and featuring ultra-low on resistance and excellent transient response, it provides stable voltage output from minimal input power. This manual provides detailed specifications, technical data, recommended packages (DFN, SOT-23), and application guidance for developers building communication equipment, cameras, and general portable devices requiring highly reliable power management.

📄 Preview PAGE OF 25

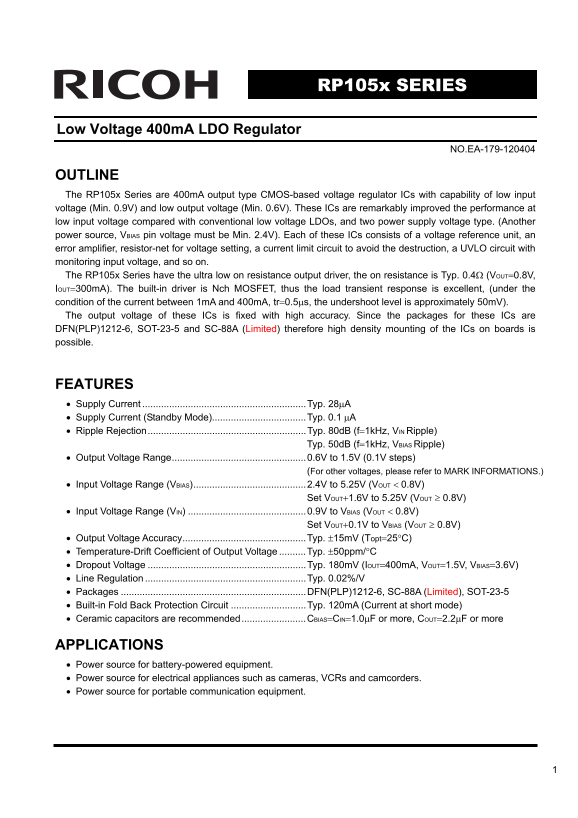

Page 1 Text Content

RP105x SERIES

Low Voltage 400m A LDO Regulator

NO.EA-179-120404

OUTLINE The RP105x Series are 400m A output type CMOS-based voltage regulator ICs with capability of low input voltage (Min. 0.9V) and low output voltage (Min. 0.6V). These ICs are remarkably improved the performance at low input voltage compared with conventional low voltage LDOs, and two power supply voltage type. (Another power source, VBIAS pin voltage must be Min. 2.4V). Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit to avoid the destruction, a UVLO circuit with monitoring input voltage, and so on. The RP105x Series have the ultra low on resistance output driver, the on resistance is Typ. 0.4Ω (VOUT=0.8V, IOUT=300m A). The built-in driver is Nch MOSFET, thus the load transient response is excellent, (under the condition of the current between 1m A and 400m A, tr=0.5μs, the undershoot level is approximately 50m V). The output voltage of these ICs is fixed with high accuracy. Since the packages for these ICs are DFN(PLP)1212-6, SOT-23-5 and SC-88A (Limited) therefore high density mounting of the ICs on boards is possible.

FEATURES • Supply Current .............................................................Typ. 28μA • Supply Current (Standby Mode)...................................Typ. 0.1 μA • Ripple Rejection...........................................................Typ. 80d B (f=1k Hz, VIN Ripple) .....................................................................................Typ. 50d B (f=1k Hz, VBIAS Ripple) • Output Voltage Range..................................................0.6V to 1.5V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Input Voltage Range (VBIAS)..........................................2.4V to 5.25V (VOUT < 0.8V) .....................................................................................Set VOUT+1.6V to 5.25V (VOUT ≥ 0.8V) • Input Voltage Range (VIN) ............................................0.9V to VBIAS (VOUT < 0.8V) .....................................................................................Set VOUT+0.1V to VBIAS (VOUT ≥ 0.8V) • Output Voltage Accuracy..............................................Typ. ±15m V (Topt=25°C) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±50ppm/°C • Dropout Voltage ...........................................................Typ. 180m V (IOUT=400m A, VOUT=1.5V, VBIAS=3.6V) • Line Regulation ............................................................Typ. 0.02%/V • Packages .....................................................................DFN(PLP)1212-6, SC-88A (Limited), SOT-23-5 • Built-in Fold Back Protection Circuit ............................Typ. 120m A (Current at short mode) • Ceramic capacitors are recommended........................CBIAS=CIN=1.0μF or more, COUT=2.2μF or more

APPLICATIONS • Power source for battery-powered equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for portable communication equipment.

Page Summary Contents For RICOH RP105x SERIES Low Voltage 400mA LDO Regulator Data Sheet User Manual

Page 1 RP105x SERIES Low Voltage 400m A LDO Regulator NO.EA-179-120404 OUTLINE The RP105x Series are 400m A output type CMOS-based voltage regulator ICs with capability of low input voltage (Min. 0.9V) and l...
Page 2 RP105x BLOCK DIAGRAMS RP105xxxx B RP105xxxx D VBIAS VBIAS VIN VOUT VIN VOUT UVLO UVLO Vref Vref Current Limit Current Limit GNDCE GNDCE SELECTION GUIDE The output voltage, auto discharge function, pac...
Page 3 RP105x PIN CONFIGURATIONS • DFN(PLP)1212-6 • SC-88A • SOT-23-5 Mark Side Bump Side 4 6 (mark side) (mark side) PIN DESCRIPTIONS • DFN(PLP)1212-6 Pin No Symbol Pin Description 1 VBIAS Input Pin 1 2 GND...
Page 4 RP105x ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VBIAS Input Voltage 6.0 V VIN Input Voltage (for Driver) −0.3 to VBIAS+0.3 V VCE Input Voltage (CE Pin) 6.0 V VOUT Output Voltage −0.3 to VIN+0....
Page 5 RP105x ELECTRICAL CHARACTERISTICS VBIAS=VCE=3.6V, VIN=Set VOUT+0.5V, IOUT=1m A, CBIAS=CIN=1.0μF, COUT=2.2μF, unless otherwise noted. The specification in is checked and guaranteed by design engineerin...
Page 6 RP105x • Dropout Voltage VDIF (IOUT=300m A) (V) VDIF (IOUT=400m A) (V) Set VOUT VBIAS VGS Typ. Max. Typ. Max. • Dropout Voltage (VGS(V), VDIF(V), IOUT=200m A) Topt=25°C VBIAS=2.5V VBIAS=3.0V VBIAS=3.3...
Page 7 RP105x TYPICAL APPLICATION DC/DC_OUT VR_OUT VIN LX VBIAS VOUT Li-ion 4.7μH RP500x RP105x 3.6V or 3cell CE VOUT CE AGND PGND VIN GND CBIAS CIN COUT 10μF Step-down DC/DC Converter (External Components) ...
Page 8 tp lt tp lt tp lt RP105x TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (CBIAS=1.0μF, CIN=COUT=2.2μF, Topt=25°C) RP105x06xx RP105x06xx VBIAS=2.4V VBIAS=3.6V VIN=0.79V VIN=0.79V VIN=1.1V ...
Page 9 tp lt tp lt tp lt RP105x RP105x15xx RP105x15xx VBIAS=3.1V VBIAS=3.6V VIN=1.76V 1.0 1.0 VIN=1.76V VIN=2.0V VIN=2.0V 0.8 VIN=3.1V 0.8 VIN=3.6V Output Current IOUT (m A) Output Current IOUT (m A) RP105x1...
Page 10 tp lt tp lt tp lt RP105x RP105x15xx RP105x06xx VIN=2.0V VBIAS=2.4V 1.0 0.8 IOUT=1m A 0.3 IOUT=1m A 0.6 IOUT=30m A IOUT=30m A IOUT=50m A IOUT=50m A Input Voltage VBIAS (V) Input Voltage VIN (V) tp lt t...
Page 11 ly rr IS μA tp lt tp lt RP105x RP105x10xx RP105x15xx VBIAS=5.25V VBIAS=2.4V IOUT=1m A IOUT=1m A 0.4 IOUT=30m A IOUT=30m A IOUT=50m A 0.4 IOUT=50m A Input Voltage VIN (V) Input Voltage VIN (V) RP105x15...
Page 12 ly rr IS μA ly rr IS μA ly rr IS μA RP105x RP105x15xx RP105x06xx VIN=2.0V VBIAS=2.4V Input Voltage VBIAS (V) Input Voltage VIN (V) ly rr IS μA ly rr IS μA ly rr IS μA RP105x06xx RP105x06xx VBIAS=3.6V ...
Page 13 tp lt ly rr IS μA RP105x ly rr IS μA RP105x10xx RP105x15xx VBIAS=5.25V VBIAS=2.4V 2.5 3.5 4.51.50.5 5.25 1.81.20.6 2.11.50.90.3 2.4 Input Voltage VIN (V) Input Voltage VIN (V) RP105x15xx RP105x15xx tp...
Page 14 tp lt ly rr IS μA ly rr IS μA RP105x RP105x15xx VIN=2.0V Temperature Topt (°C) ly rr IS μA 5) Supply Current vs. Temperature (CBIAS=CIN=COUT=none, VBIAS=3.6V) RP105x06xx RP105x10xx VIN=1.1V VIN=1.5V T...
Page 15 ro lt IF ro lt IF ro lt IF RP105x 6) Dropout Voltage vs. Output Current (CBIAS=1.0μF, CIN=COUT=2.2μF) RP105x06xx RP105x10xx Output Current IOUT (m A) Output Current IOUT (m A) ro lt IF RP105x15xx Outp...
Page 16 ip le je ti ip le je ti ip le je ti RP105x 8) Ripple Rejection vs. Input Bias Voltage (COUT=2.2μF, Ripple=0.2Vp-p, Topt=25°C) RP105x10xx RP105x10xx CBIAS=none, CIN=2.2μF, IOUT=1m A CBIAS=none, CIN=2.2...
Page 17 tp lt ip le je ti ip le je ti RP105x RP105x15xx RP105x06xx VIN=2.0V, CBIAS=none, CIN=2.2μF VIN=1.1V, CBIAS=1.0μF, CIN=none IOUT=1m A IOUT=1m A IOUT=30m A IOUT=30m A IOUT=150m A In lt IA Frequency f (k...
Page 18 tp lt tp lt tp lt RP105x RP105x15xx RP105x06xx VIN=2.0V, CBIAS=none, CIN=2.2μF VBIAS=3.6V, CBIAS=1.0μF, CIN=none Input Voltage(VBIAS) Input Voltage(VIN) Output Voltage Output Voltage tp rr IO In lt IA...
Page 19 tp lt tp lt tp lt RP105x RP105x15xx RP105x06xx VIN=2.0V VIN=1.1V Output Current Output Current 50m A 100m A 1m A 400m A Output Voltage Output Voltage lt )CE Input Voltage tp rr IO tp rr IO Time t (μs)...
Page 20 tp lt tp lt tp lt RP105x RP105x06xx RP105x10xx VIN=1.1V VIN=1.5V IOUT=400m A IOUT=0m A CE Input Voltage Output Voltage Output Voltage lt lt lt )CE Input Voltage Time t (μs) Time t (μs) tp lt tp lt tp ...
Page 21 tp lt tp lt tp lt RP105x RP105x15xx VIN=2.0V IOUT=400m A CE Input Voltage Output Voltage lt lt lt Time t (μs) tp lt tp lt 13) Turn Off Speed with CE Pin (VBIAS=3.6V, CBIAS=1.0μF, CIN=COUT=2.2μF, Topt=...
Page 22 tp lt tp lt tp lt RP105x RP105x10xx RP105x10xx VIN=1.5V VIN=1.5V IOUT=30m A IOUT=400m A CE Input Voltage CE Input Voltage Output Voltage Output Voltage lt lt lt Time t (μs) Time t (μs) tp lt tp lt RP1...
Page 23 tp lt tp lt tp lt RP105x 14) Turn On Transient with VIN pin (VBIAS=3.6V, CBIAS=1.0μF, CIN=none, COUT=2.2μF, Topt=25°C) RP105x06xx RP105x06xx IOUT=0m A IOUT=30m A VIN Input Voltage VIN Input Voltage Ou...
Page 24 RP105x ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the w...
Page 25 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 25
File Size 375.30 KB
Published June 01, 2026
89 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What type and value of capacitors should I use for optimal operation?

Ceramic capacitors are recommended: CBIAS=CIN=1.0μF or more, and COUT=2.2μF or more.

What is the minimum input voltage required for this regulator?

The Input Voltage Range (VIN) starts at 0.9V; however, VBIAS must be a minimum of 2.4V.

How much protection against overcurrent does the device offer?

It features a built-in Fold Back Protection Circuit circuit with a capacity up to Typ. 120mA.

What physical packages are available for this IC series?

The ICs come in DFN(PLP)1212-6, SC-88A (Limited), and SOT-23-5 packages.
