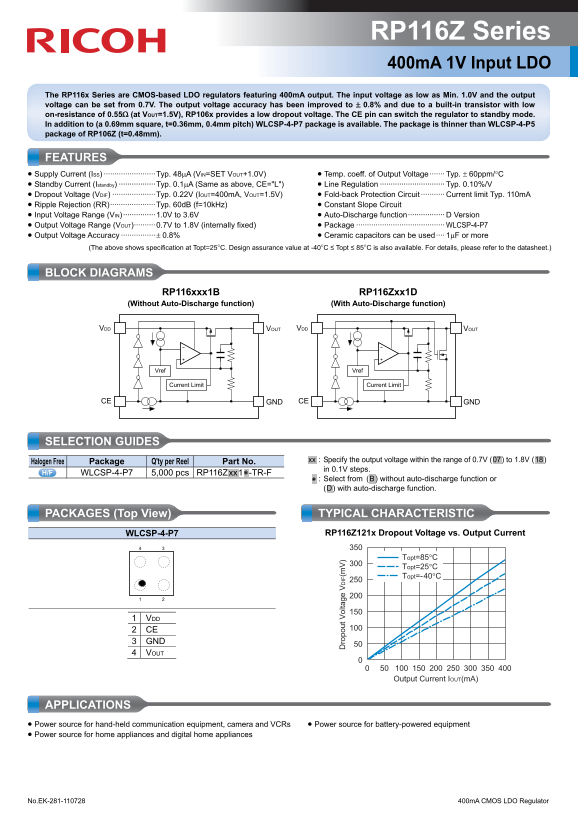

RP116Z Series 400m A 1V Input LDO
The RP116x Series are CMOS-based LDO regulators featuring 400m A output. The input voltage as low as Min. 1.0V and the output voltage can be set from 0.7V. The output voltage accuracy has been improved to ± 0.8% and due to a built-in transistor with low on-resistance of 0.55Ω (at VOUT=1.5V), RP106x provides a low dropout voltage. The CE pin can switch the regulator to standby mode. In addition to (a 0.69mm square, t=0.36mm, 0.4mm pitch) WLCSP-4-P7 package is available. The package is thinner than WLCSP-4-P5 package of RP106Z (t=0.48mm).
FEATURES • Supply Current (ISS) ························Typ. 48μA (VIN=SET VOUT+1.0V) • Temp. coeff. of Output Voltage······· Typ. ± 60ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (Same as above, CE="L") • Line Regulation ······························ Typ. 0.10%/V • Dropout Voltage (VDIF) ····················Typ. 0.22V (IOUT=400m A, VOUT=1.5V) • Fold-back Protection Circuit ··········· Current limit Typ. 110m A • Ripple Rejection (RR)·····················Typ. 60d B (f=10k Hz) • Constant Slope Circuit • Input Voltage Range (VIN) ···············1.0V to 3.6V • Auto-Discharge function················· D Version • Output Voltage Range (VOUT)··········0.7V to 1.8V (internally fixed) • Package ········································· WLCSP-4-P7 • Output Voltage Accuracy ················± 0.8% • Ceramic capacitors can be used···· 1μF or more
(The above shows specification at Topt=25°C. Design assurance value at -40°C ≤ Topt ≤ 85°C is also available. For details, please refer to the datasheet.)
BLOCK DIAGRAMS RP116xxx1B RP116Zxx1D (Without Auto-Discharge function) (With Auto-Discharge function)
VDD VOUT VDD VOUT
ro po ut ol ta ge IF (m
Vref Vref
Current Limit Current Limit
CE GND CE GND
SELECTION GUIDES
.xx. : Specify the output voltage within the range of 0.7V (.07.) to 1.8V (.18.)
Halogen Free Package Q'ty per Reel Part No.
in 0.1V steps.
WLCSP-4-P7 5,000 pcs RP116Z.xx.1.∗ -TR-F
.∗ : Select from (.B.) without auto-discharge function or (.D.) with auto-discharge function.
PACKAGES (Top View) TYPICAL CHARACTERISTIC
WLCSP-4-P7 RP116Z121x Dropout Voltage vs. Output Current
Topt=85°C Topt=25°C Topt=-40°C
1 VDD 2 CE 3 GND 4 VOUT
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, camera and VCRs • Power source for battery-powered equipment • Power source for home appliances and digital home appliances
No.EK-281-110728 400m A CMOS LDO Regulator
