RICOH RP170x SERIES 300mA 10V INPUT LDO REGULATOR
Summary
This CMOS-based LDO regulator offers stable power management up to 300mA for portable applications. Designed with an optimized input range (2.6V–10V), it is ideal for battery-powered devices, including communications equipment and cameras running off 2-cell lithium-ion batteries. Features include ultra-low standby current and built-in fold-back/thermal protection, ensuring reliable performance. This manual provides comprehensive technical specifications, package options (SOT-23-5, etc.), and selection guides to help engineers choose the perfect solution for demanding low-power electronics projects.
Page 1 Text Content

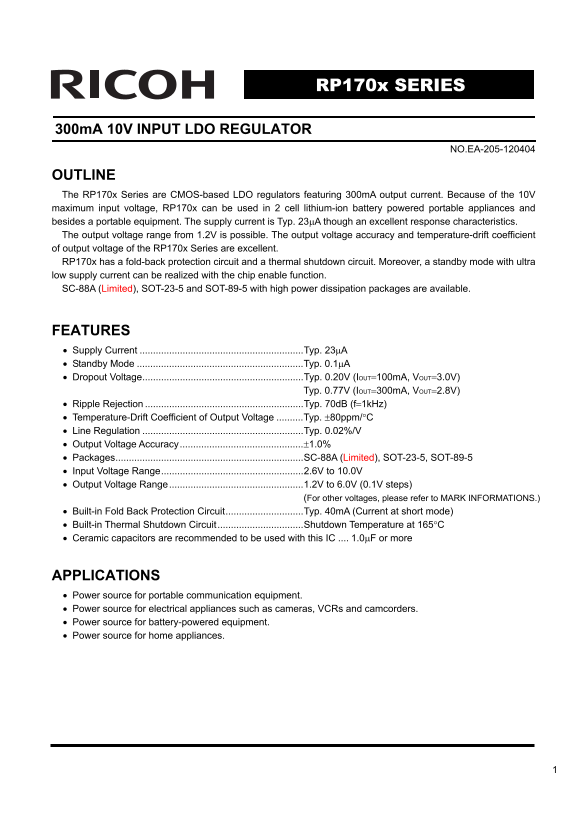

RP170x SERIES
300m A 10V INPUT LDO REGULATOR
NO.EA-205-120404
OUTLINE The RP170x Series are CMOS-based LDO regulators featuring 300m A output current. Because of the 10V maximum input voltage, RP170x can be used in 2 cell lithium-ion battery powered portable appliances and besides a portable equipment. The supply current is Typ. 23μA though an excellent response characteristics. The output voltage range from 1.2V is possible. The output voltage accuracy and temperature-drift coefficient of output voltage of the RP170x Series are excellent. RP170x has a fold-back protection circuit and a thermal shutdown circuit. Moreover, a standby mode with ultra low supply current can be realized with the chip enable function. SC-88A (Limited), SOT-23-5 and SOT-89-5 with high power dissipation packages are available.
FEATURES • Supply Current .............................................................Typ. 23μA • Standby Mode ..............................................................Typ. 0.1μA • Dropout Voltage............................................................Typ. 0.20V (IOUT=100m A, VOUT=3.0V) Typ. 0.77V (IOUT=300m A, VOUT=2.8V) • Ripple Rejection ...........................................................Typ. 70d B (f=1k Hz) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±80ppm/°C • Line Regulation ............................................................Typ. 0.02%/V • Output Voltage Accuracy..............................................±1.0% • Packages......................................................................SC-88A (Limited), SOT-23-5, SOT-89-5 • Input Voltage Range.....................................................2.6V to 10.0V • Output Voltage Range..................................................1.2V to 6.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Fold Back Protection Circuit.............................Typ. 40m A (Current at short mode) • Built-in Thermal Shutdown Circuit ................................Shutdown Temperature at 165°C • Ceramic capacitors are recommended to be used with this IC 1.0μF or more
APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment. • Power source for home appliances.
