RICOH R1171x SERIES 2.0A 1.5A LDO REGULATOR Data Manual

Summary

The R1171x Series is a high-performance CMOS LDO voltage regulator featuring low dropout voltage, high accuracy, and minimal standby power consumption. Designed to extend battery life, these regulators are ideal for portable electronic applications, including notebook PCs, cameras, and home appliances. This manual provides comprehensive technical details, covering electrical characteristics, package options (HSOP-6J/TO-252), pin configurations, and application guidelines for engineers selecting optimal stable power solutions.

📄 Preview PAGE OF 24

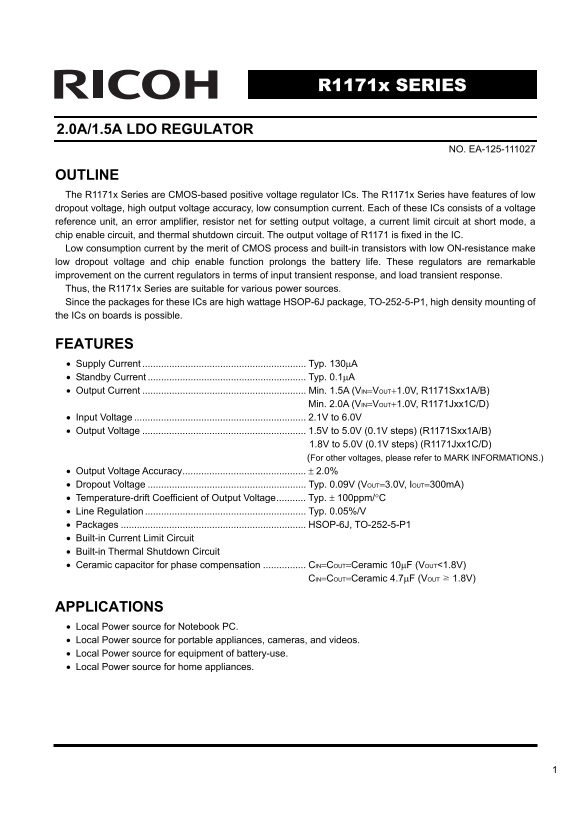

Page 1 Text Content

R1171x SERIES

2.0A/1.5A LDO REGULATOR

NO. EA-125-111027

OUTLINE The R1171x Series are CMOS-based positive voltage regulator ICs. The R1171x Series have features of low dropout voltage, high output voltage accuracy, low consumption current. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor net for setting output voltage, a current limit circuit at short mode, a chip enable circuit, and thermal shutdown circuit. The output voltage of R1171 is fixed in the IC. Low consumption current by the merit of CMOS process and built-in transistors with low ON-resistance make low dropout voltage and chip enable function prolongs the battery life. These regulators are remarkable improvement on the current regulators in terms of input transient response, and load transient response. Thus, the R1171x Series are suitable for various power sources. Since the packages for these ICs are high wattage HSOP-6J package, TO-252-5-P1, high density mounting of the ICs on boards is possible.

FEATURES • Supply Current Typ. 130μA • Standby Current Typ. 0.1μA • Output Current Min. 1.5A (VIN=VOUT+1.0V, R1171Sxx1A/B)

Min. 2.0A (VIN=VOUT+1.0V, R1171Jxx1C/D)

• Input Voltage 2.1V to 6.0V • Output Voltage 1.5V to 5.0V (0.1V steps) (R1171Sxx1A/B)

1.8V to 5.0V (0.1V steps) (R1171Jxx1C/D)

(For other voltages, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy.............................................. ± 2.0% • Dropout Voltage Typ. 0.09V (VOUT=3.0V, IOUT=300m A) • Temperature-drift Coefficient of Output Voltage........... Typ. ± 100ppm/°C • Line Regulation Typ. 0.05%/V • Packages HSOP-6J, TO-252-5-P1 • Built-in Current Limit Circuit • Built-in Thermal Shutdown Circuit • Ceramic capacitor for phase compensation CIN=COUT=Ceramic 10μF (VOUT<1.8V) CIN=COUT=Ceramic 4.7μF (VOUT 1.8V)

APPLICATIONS • Local Power source for Notebook PC. • Local Power source for portable appliances, cameras, and videos. • Local Power source for equipment of battery-use. • Local Power source for home appliances.

Page Summary Contents For RICOH R1171x SERIES 2.0A 1.5A LDO REGULATOR Data Manual

Page 1 R1171x SERIES 2.0A/1.5A LDO REGULATOR NO. EA-125-111027 OUTLINE The R1171x Series are CMOS-based positive voltage regulator ICs. The R1171x Series have features of low dropout voltage, high output vol...
Page 2 BLOCK DIAGRAMS R1171xxx1A/C R1171xxx1B/D VDD VOUT VDD VOUT GND GND Vref Vref Current Limit Current Limit Thermal Shutdown Thermal Shutdown CE GND CE GND SELECTION GUIDE The output voltage, chip enable...
Page 3 PIN CONFIGURATIONS HSOP-6J TO-252-5-P1 PIN DESCRIPTIONS • HSOP-6J Pin No Symbol Pin Description 1 VOUT Output Pin 2 GND Ground Pin 3 CE or CE Chip Enable Pin 4 NC No Connection 5 GND Ground Pin 6 VDD ...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 7.0 V VCE Input Voltage ( CE or CE Input Pin) −0.3 to VIN+0.3 V VOUT Output Voltage −0.3 to VIN+0.3 V Power Dissipation (HSOP-6J)∗1 1...
Page 5 ELECTRICAL CHARACTERISTICS • R1171Sxx1A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VOUT Output Voltage VIN−VOUT=1.0V, IOUT=200m A ×0.98 ×1.02 ΔVOUT/ ΔIOUT Load Regulation VIN−VOUT=1.0V 1m A ...
Page 6 • R1171Sxx1B Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN−VOUT=1.0V VOUT Reference Voltage for ×1.02 Adjustable Voltage Regulator IOUT=200m A ×0.98 ΔVOUT/ ΔIOUT Load Regulation VIN−VOUT=1....
Page 7 • R1171Jxx1C Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VOUT Output Voltage VIN−VOUT=1.0V IOUT=200m A ×0.98 ×1.02 ΔVOUT/ ΔIOUT Load Regulation VIN−VOUT=1.0V 1m A IOUT 300m A 10 60 m V 1.8 VO...
Page 8 • R1171Jxx1D Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN−VOUT=1.0V VOUT Reference Voltage for ×1.02 Adjustable Voltage Regulator IOUT=200m A ×0.98 ΔVOUT/ ΔIOUT Load Regulation VIN−VOUT=1....
Page 9 TEST CIRCUITS CE CE VDD VOUT VDD VOUT IN OUTR1171xxx1B IN OUTR1171xxx1B Series Series IOUT ISS CIN CIN COUT COUT GND GND Standard Test Circuit Supply Current Test Circuit CE CE VDD VOUT VDD VOUT IN OU...
Page 10 ut pu t V ol ta ge T( ut pu t V ol ta ge T( ut pu t V ol ta ge T( TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (Topt=25°C) R1171S151x R1171S201x 1.8 2.5 VIN=2.5V VIN=3.0V VIN=2.0V VIN=...
Page 11 ro po ut ol ta ge IF (V ut pu t V ol ta ge T( ut pu t V ol ta ge T( 2) Output Voltage vs. Input Voltage (Topt=25°C) R1171x151B R1171x201B IOUT=1m A 1.7 IOUT=10m A IOUT=100m A 2.1 IOUT=300m A IOUT=500m...
Page 12 ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V Output Current IOUT(m A) Output Current IOUT(m A) ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V Output...
Page 13 up pl ur re nt IS (μ ut pu t V ol ta ge T( ut pu t V ol ta ge T( 4) Output Voltage vs. Temperature R1171x151B R1171x201B VIN=2.5V, IOUT=200m A VIN=3.0V, IOUT=200m A Temperature Topt(°C) Temperature To...
Page 14 up pl ur re nt IS (μ up pl ur re nt IS (μ up pl ur re nt IS (μ Input Voltage VIN(V) Input Voltage VIN(V) 6) Supply Current vs. Temperature R1171x151B R1171x201B up pl ur re nt IS (μ up pl ur re nt IS ...
Page 15 ip pl ej ec tio (d ip pl ej ec tio (d ro po ut ol ta ge IF (V 7) Dropout Voltage vs. Set Output Voltage (Topt=25°C) R1171Sxx1x R1171Jxx1x IOUT=1500m A IOUT=2000m A 0.7 0.7 IOUT=1000m A IOUT=1000m A IO...
Page 16 ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d 9) Ripple Rejection vs. Input Voltage R1171x301x R1171x301x IOUT=1m A,COUT=4.7μF IOUT=10m A,COUT=4.7μF f=400Hz f=400Hz f=1k Hz f=1k Hz f=10k Hz...
Page 17 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) 10) Input Transient Response (Topt=25°C) R1171x151B tr=tf=5μs, IOUT=1000m A, COUT=Ceramic 10μF Input Voltage Output Voltage T...
Page 18 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) R1171x501B tr=tf=5μs, IOUT=1000m A, COUT=Ceramic 4.7μF Input Voltage Output Voltage Time t(μs) 11) Load Transient Response (T...
Page 19 R1171x301B ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) tr=tf=10μs, VIN=4.0V, COUT=Ceramic 4.7μF Output Current 3.15 3.10 3.05 Output Voltage 3.00 2.95 2.90 2.85 Time t(μs) R1171x501B tr=tf=10μs,...
Page 20 Technical Notes on External Components and Typical Application 1. Phase Compensation In these ICs, phase compensation is made with the output capacitor for securing stable operation even if the load c...
Page 21 ESR vs. Output Current (Topt=25°C, VIN=Set Output Voltage+1V, CIN=Ceramic 10μF) VOUTCE R1171xxx1B COUT Spectrum S.A Analyzer VIN GND VIN CIN As an output capacitor for this IC, Ceramic capacitor is re...
Page 22 (Ω ES (Ω (Ω CIN=COUT=Ceramic 4.7μF CIN=COUT=Ceramic 2.2μF Output Current IOUT(m A) Output Current IOUT(m A) CIN=COUT=Ceramic 4.7μF CIN=COUT=Ceramic 2.2μF Output Current IOUT(m A) Output Current IOUT(m...
Page 23 CIN=COUT=Ceramic 4.7μF CIN=COUT=Ceramic 2.2μF Output Current IOUT(m A) Output Current IOUT(m A) (Ω (Ω CIN=COUT=Ceramic 4.7μF CIN=COUT=Ceramic 2.2μF Output Current IOUT(m A) Output Current IOUT(m A)
Page 24 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 24
File Size 514.85 KB
Published June 04, 2026
67 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What capacitors are required for phase compensation?

A ceramic capacitor must be used: 10μF if VOUT < 1.8V, or 4.7μF if VOUT ≥ 1.8V.

How does the regulator handle overheating and overcurrent conditions?

The R1171x Series features built-in thermal shutdown circuitry and a current limit circuit at short mode for protection.

What is the approximate standby power consumption?

The typical measured standby current is 0.1μA, which helps prolong the battery life of connected devices.
