RICOH RP153L SERIES 150mA DUAL LDO REGULATOR DATASHEET, USER MANUAL

Summary

A high-accuracy, CMOS dual LDO voltage regulator designed for powering sensitive electronics in portable applications. This component features low dropout, excellent transient response, and stable power delivery ideal for battery-powered communication equipment, cameras, and other handheld appliances. The manual provides engineers with comprehensive technical documentation, including detailed specifications (low current draw, high ripple rejection), operational ranges, pin configurations, and design guidelines to ensure reliable power supply integration into complex systems.

📄 Preview PAGE OF 20

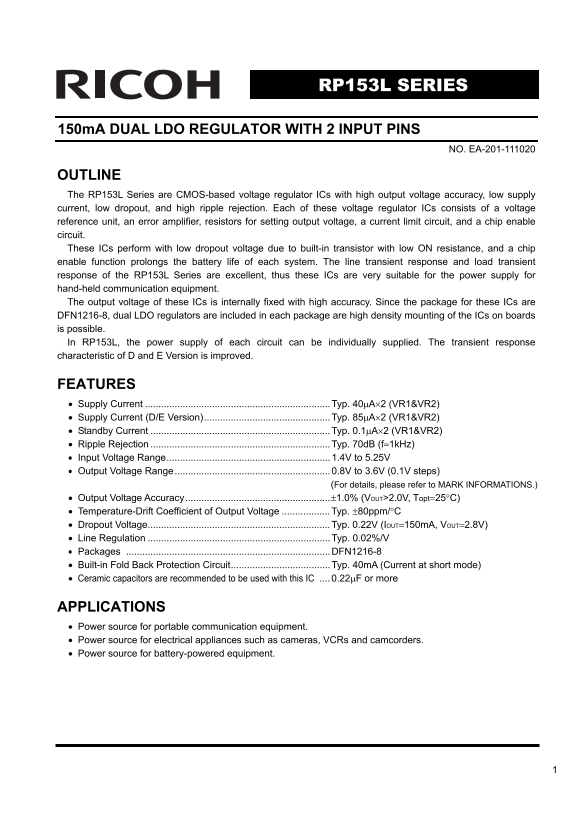

Page 1 Text Content

RP153L SERIES

150m A DUAL LDO REGULATOR WITH 2 INPUT PINS

NO. EA-201-111020

OUTLINE The RP153L Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dropout, and high ripple rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting output voltage, a current limit circuit, and a chip enable circuit. These ICs perform with low dropout voltage due to built-in transistor with low ON resistance, and a chip enable function prolongs the battery life of each system. The line transient response and load transient response of the RP153L Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. The output voltage of these ICs is internally fixed with high accuracy. Since the package for these ICs are DFN1216-8, dual LDO regulators are included in each package are high density mounting of the ICs on boards is possible. In RP153L, the power supply of each circuit can be individually supplied. The transient response characteristic of D and E Version is improved.

FEATURES • Supply Current .....................................................................Typ. 40μA×2 (VR1&VR2) • Supply Current (D/E Version)...............................................Typ. 85μA×2 (VR1&VR2) • Standby Current ...................................................................Typ. 0.1μA×2 (VR1&VR2) • Ripple Rejection ...................................................................Typ. 70d B (f=1k Hz) • Input Voltage Range............................................................. 1.4V to 5.25V • Output Voltage Range.......................................................... 0.8V to 3.6V (0.1V steps) (For details, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy......................................................±1.0% (VOUT>2.0V, Topt=25°C) • Temperature-Drift Coefficient of Output Voltage ..................Typ. ±80ppm/°C • Dropout Voltage....................................................................Typ. 0.22V (IOUT=150m A, VOUT=2.8V) • Line Regulation ....................................................................Typ. 0.02%/V • Packages ............................................................................DFN1216-8 • Built-in Fold Back Protection Circuit.....................................Typ. 40m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC .... 0.22μF or more

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH RP153L SERIES 150mA DUAL LDO REGULATOR DATASHEET, USER MANUAL

Page 1 RP153L SERIES 150m A DUAL LDO REGULATOR WITH 2 INPUT PINS NO. EA-201-111020 OUTLINE The RP153L Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dr...
Page 2 RP153L BLOCK DIAGRAMS RP153Lxxx A/D VOUT1 Error Amp. R1_1 Current Limit CE1 GND Error Amp. Current Limit CE2 VOUT2 RP153Lxxx B/E VOUT1 Error Amp. R1_1 Current Limit Error Amp. Current Limit CE2 VOUT2
Page 3 RP153L SELECTION GUIDE The output voltage, auto discharge function, package, and the taping type, etc. for the ICs can be selected at the user’s request. Product Name Package Quantity per Reel Pb Free...
Page 4 RP153L ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.0 V VCE Input Voltage (CE Pin) −0.3 to 6.0 V VOUT1, VOUT2 Output Voltage −0.3 to VIN+0.3 V IOUT1, IOUT2 Output Current 180 m...
Page 5 RP153L ELECTRICAL CHARACTERISTICS • RP153L VIN=Set VOUT+1.0V (VOUT>1.5V), VIN=2.5V (VOUT ≤1.5V), IOUT=1m A, CIN=COUT=0.22μF, unless otherwise noted. The specification in is checked and guaranteed b...
Page 6 RP153L • Dropout Voltage by Output Voltage Dropout Voltage VDIF (V) Output Voltage VOUT (V) Condition Typ. Max. VOUT=0.8 0.63 0.87 VOUT=0.9 0.55 0.80 1.0 ≤ VOUT < 1.2 0.50 0.72 1.2 ≤ VOUT < 1.4 ...
Page 7 RP153L TYPICAL APPLICATIONS CE2 VOUT2 VOUT2 RP153L Series COUT2 VIN1 VDD1 GND CE1 VOUT1 VOUT1 COUT1 CIN1=CIN2=COUT1=COUT2=Ceramic 0.22μF (External Components) Murata : GRM155B31A224KE18B TECHNICAL NOT...
Page 8 RP153L TEST CIRCUITS CE2 VOUT2 CE2 VOUT2 VOUT2 IOUT2 RP153L COUT2 RP153L Series Series VDD2 VDD2 COUT2 GND ISS CE1 VOUT1 CE1 VOUT1 IOUT1 CIN CIN COUT1 VOUT1 COUT1 CIN=COUT1=COUT2=0.22μF CIN=COUT1=COUT...
Page 9 tp lt tp lt tp lt RP153L TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (Topt=25°C) 0.8V(VR1/VR2) 2.5V(VR1/VR2) 0.9 3.0 0.8 VIN=1.4V VIN=1.5V VIN=1.6V 0.5 VIN=2.8V VIN=1.8V VIN=3.5V VIN=...
Page 10 ly rr IS μA ly rr IS μA tp lt RP153L 3.6V(VR1/VR2) 4.0 3.5 3.0 2.5 2.0 1.5 IOUT=1m A IOUT=30m A IOUT=50m A Input Voltage VIN (V) ly rr IS μA 3) Supply Current vs. Input Voltage 0.8V(VR1/VR2) 2.5V(VR1/...
Page 11 ly rr IS μA tp lt tp lt RP153L 4) Output Voltage vs. Temperature 0.8V(VR1/VR2) 2.5V(VR1/VR2) 0.83 2.50 Temperature Topt (°C) Temperature Topt (°C) ly rr IS μA tp lt 3.6V(VR1/VR2) 3.60 Temperature Topt...
Page 12 ro lt IF ro lt IF ly rr IS μA RP153L 3.6V(VR1/VR2) Temperature Topt (°C) ro lt IF 6) Dropout Voltage vs. Output Current 0.8V(VR1/VR2) 2.5V(VR1/VR2) Topt=85°C Topt=85°C Topt=25°C Topt=25°C Topt=-40°C T...
Page 13 ip le je ti In lt IN ro lt IF RP153L 7) Dropout Voltage vs. Set Output Voltage IOUT=150m A IOUT=50m A IOUT=30m A IOUT=10m A 0.5 1.0 2.0 2.51.5 3.5 4.03.0 Set Output Voltage VREG (V) 8) Minimum Operati...
Page 14 tp lt ip le je ti ip le je ti RP153L 10) Ripple Rejection vs. Frequency (CIN=none, COUT1=COUT2=Ceramic 0.22μF, Ripple=0.2Vp-p,Topt=25°C) 0.8V(VR1/VR2) 2.5V(VR1/VR2) VIN=3.0V VIN=3.5V IOUT=1m A IOUT=1m...
Page 15 tp lt ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP153L 3.6V(VR1/VR2) Input Voltage Output Voltage In lt IN Time t (μs) ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m 12) Load Transient Response (...
Page 16 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP153L 3.6V(A/B version) 3.6V(D/E version) Output Current Output Current 1m A 150m A 1m A 150m A 3.5 Output Voltage 3.5 Output Voltage...
Page 17 tp lt ut pu t V ol ta ge (V tp lt RP153L 3.6V(A/B version) 3.6V(D/E version) Output Current Output Current Output Voltage Output Voltage Time t (µs) Time t (µs) lt ut pu t C ur re nt IO (m 13) Turn On...
Page 18 tp lt tp lt RP153L 14) Turn Off Speed with CE pin (CIN=COUT1=COUT2=0.22μF, Topt=25°C) 0.8V B Version (VR1/ VR2) 2.5V B Version (VR1/ VR2) VIN=1.8V VIN=3.5V CE Input Voltage CE Input Voltage Output Vol...
Page 19 RP153L ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the w...
Page 20 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 20
File Size 705.87 KB
Published June 01, 2026
67 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the output voltage range available for this regulator?

The output voltage can be set anywhere from 0.8V to 3.6V in increments of 0.1V.

What type and value capacitor are recommended for use with the RP153L ICs?

It is recommended that ceramic capacitors measuring 0.22μF or more be used with this IC.

How can I minimize power consumption when the device is not actively running?

The IC includes a chip enable function and offers an optional auto-discharge function at off state to prolong battery life.
