RICOH R5326x SERIES Automatic Mode Shift Dual 150mA LDO Data Sheet User Manual

Summary

Explore efficient power management with this dual LDO voltage regulator series. These advanced CMOS ICs feature automatic mode shifting between fast and low-power modes, offering stellar efficiency and maintained high output accuracy crucial for portable electronics. The detailed manual provides essential technical specifications covering electrical characteristics, multiple package options (WLCSP/DFN), and pin configurations. It is tailored for design engineers creating power sources for applications ranging from battery-operated equipment and cameras to handheld communication devices requiring stable and highly efficient operation.

📄 Preview PAGE OF 27

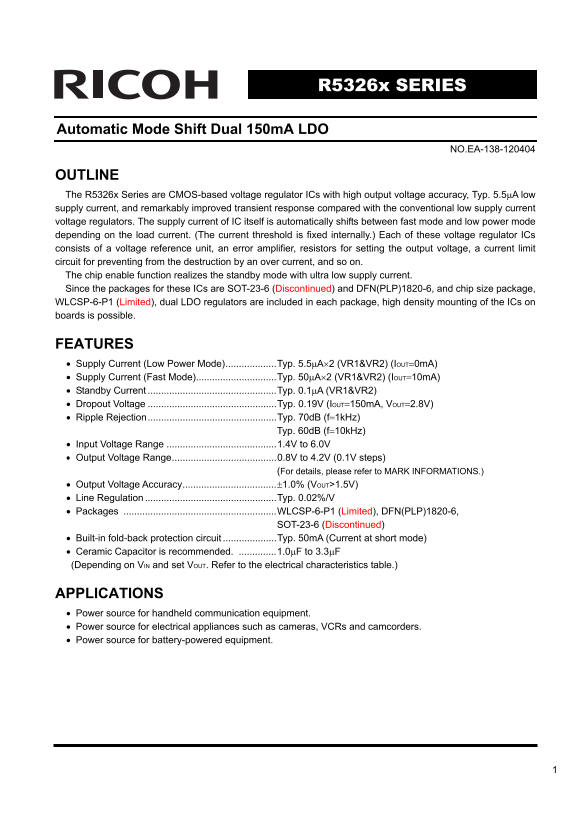

Page 1 Text Content

R5326x SERIES

Automatic Mode Shift Dual 150m A LDO

NO.EA-138-120404

OUTLINE The R5326x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, Typ. 5.5μA low supply current, and remarkably improved transient response compared with the conventional low supply current voltage regulators. The supply current of IC itself is automatically shifts between fast mode and low power mode depending on the load current. (The current threshold is fixed internally.) Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting the output voltage, a current limit circuit for preventing from the destruction by an over current, and so on. The chip enable function realizes the standby mode with ultra low supply current. Since the packages for these ICs are SOT-23-6 (Discontinued) and DFN(PLP)1820-6, and chip size package, WLCSP-6-P1 (Limited), dual LDO regulators are included in each package, high density mounting of the ICs on boards is possible.

FEATURES • Supply Current (Low Power Mode)...................Typ. 5.5μA×2 (VR1&VR2) (IOUT=0m A) • Supply Current (Fast Mode)..............................Typ. 50μA×2 (VR1&VR2) (IOUT=10m A) • Standby Current ................................................Typ. 0.1μA (VR1&VR2) • Dropout Voltage ................................................Typ. 0.19V (IOUT=150m A, VOUT=2.8V) • Ripple Rejection................................................Typ. 70d B (f=1k Hz)

Typ. 60d B (f=10k Hz)

• Input Voltage Range .........................................1.4V to 6.0V • Output Voltage Range.......................................0.8V to 4.2V (0.1V steps) (For details, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy...................................±1.0% (VOUT>1.5V) • Line Regulation .................................................Typ. 0.02%/V • Packages .........................................................WLCSP-6-P1 (Limited), DFN(PLP)1820-6,

SOT-23-6 (Discontinued)

• Built-in fold-back protection circuit ....................Typ. 50m A (Current at short mode) • Ceramic Capacitor is recommended. ..............1.0μF to 3.3μF (Depending on VIN and set VOUT. Refer to the electrical characteristics table.)

APPLICATIONS • Power source for handheld communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH R5326x SERIES Automatic Mode Shift Dual 150mA LDO Data Sheet User Manual

Page 1 R5326x SERIES Automatic Mode Shift Dual 150m A LDO NO.EA-138-120404 OUTLINE The R5326x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, Typ. 5.5μA low supply current, and...
Page 2 BLOCK DIAGRAMS R5326xxxx A CE1 VOUT1 Error Amp. Current Limit VDD GND Error Amp. Current Limit CE2 VOUT2 R5326xxxx B CE1 VOUT1 Error Amp. Current Limit VDD GND Error Amp. Current Limit CE2 VOUT2
Page 3 SELECTION GUIDE The output voltage, auto discharge function, package for the ICs can be selected at the user’s request. Product Name Package Quantity per Reel Pb Free Halogen Free R5326Zxxx∗-E2-F WLCS...
Page 4 PIN CONFIGURATIONS WLCSP-6-P1 DFN(PLP)1820-6 SOT-23-6 Mark Side Bump Side Top View Bottom View 6 5 4 (mark side) PIN DESCRIPTIONS • WLCSP-6-P1 (Limited), SOT-23-6 (Discontinued) Pin No Symbol Pin Desc...
Page 5 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.5 V VCE Input Voltage (CE Pin) −0.3 to 6.5 V VOUT Output Voltage −0.3 to VIN+0.3 V IOUT1, IOUT2 Output Current 200 m A Power Dissip...
Page 6 ELECTRICAL CHARACTERISTICS • R5326xxxx A/B VR1/VR2 Topt=25°C Symbol Item Conditions MIN. TYP. MAX. Unit VOUT > 1.5V ×0.99 ×1.01 VOUT Output Voltage VIN−VOUT=1V IOUT=1m A VOUT IOUT Output Current VI...
Page 7 TYPICAL APPLIATION CE2 VOUT2 OUT2 R5326x Series C3 IN VDD GND CE1 VOUT1 OUT1 C2 (External Components) Capacitor; Ceramic Type C1 : 1.0μF Ceramic C2, C3 : Refer to the following table Recommended Ceram...
Page 8 TECHNICAL NOTES When using these ICs, consider the following points: Mounting on PCB Make VDD and GND lines sufficient. If their impedance is high, noise pickup or unstable operation may result. Conne...
Page 9 tp lt (V tp lt (V tp lt (V TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current 0.8V(VR1/VR2) 1.5V(VR1/VR2) 0.9 1.6 0.8 1.4 VIN=1.4V 0.4 VIN=1.5V VIN=1.6V 0.3 VIN=1.8V VIN=1.8V 0.4 0.2 VIN=2.5...
Page 10 ly rr IS (μ ly rr IS (μ tp lt (V 2.8V(VR1/VR2) 4.0V(VR1/VR2) 3.0 4.5 IOUT=1m A IOUT=1m A IOUT=10m A IOUT=10m A IOUT=100m A IOUT=100m A IOUT=150m A 0.5 IOUT=150m A Input Voltage VIN(V) Input Voltage VI...
Page 11 tp lt (V tp lt (V ly rr IS (μ 4) Supply current vs. Output current Low Power Mode to Fast Mode Fast Mode to Low Power Mode Output Current IOUT(m A) 5) Output Voltage vs. Temperature tp lt (V tp lt (V ...
Page 12 ro lt IF (V ro lt IF (V R5326x ly rr IS (μ 6) Supply Current vs. Temperature IOUT=0m A Temperature Topt(°C) ro lt IF (V ro lt IF (V 7) Dropout Voltage vs. Output Current 0.8V(VR1/VR2) 0.9V(VR1/VR2) 0....
Page 13 ro lt IF (m ro lt IF (V ro lt IF (V 1.5V(VR1/VR2) 2.0V(VR1/VR2) Output Current IOUT(m A) Output Current IOUT(m A) 2.8V(VR1/VR2) 4.0V(VR1/VR2) ro lt IF (V ro lt IF (V Output Current IOUT(m A) Output Cu...
Page 14 ip le je ti (d ip le je ti (d In lt (V 9) Ripple Rejection vs. Input Voltage (Topt=25°C, Ripple 0.5Vp-p, CIN=none, COUT=Ceramic 1.0μF) 2.8V(VR1/VR2) 2.8V(VR1/VR2) IOUT=1m A IOUT=10m A 100Hz 100Hz 1k H...
Page 15 ip le je ti (d ip le je ti (d ip le je ti (d 11) Ripple Rejection vs Frequency (CIN=none) 0.8V(VR1/VR2) 0.8V(VR1/VR2) VIN=2.2VDC+0.5Vp-p, VIN=2.2VDC+0.5Vp-p, COUT=Ceramic 2.2μF COUT=Ceramic 3.3μF IOUT...
Page 16 tp lt (V tp lt (V ip le je ti (d 4.0V(VR1/VR2) 4.0V(VR1/VR2) VIN=5.0VDC+0.5Vp-p, VIN=5.0VDC+0.5Vp-p, COUT=Ceramic 1.0μF COUT=Ceramic 2.2μF IOUT=1m A IOUT=1m A IOUT=10m A IOUT=10m A IOUT=50m A IOUT=50m...
Page 17 tp lt (V tp lt (V R5326x tp lt (V 13) Load Transient Response1 (tr=tf=0.5μs, CIN=1.0μF) 0.8V(VR1/VR2) 0.8V(VR1/VR2) COUT=Ceramic 2.2μF COUT=Ceramic 3.3μF Output Current Output Current 0.9 0.9 Output V...
Page 18 tp lt (V tp lt (V tp lt (V 1.5V (VR1/VR2) 1.5V (VR1/VR2) COUT=Ceramic 1.0μF COUT=Ceramic 2.2μF Output Current Output Current Output Voltage Output Voltage tp rr IO (m tp rr IO (m tp rr IO (m Time t (μ...
Page 19 tp lt (V tp lt (V tp lt (V 2.8V (VR1/VR2) 2.8V (VR1/VR2) COUT=Ceramic 1μF COUT=Ceramic 2.2μF Output Current Output Current Output Voltage Output Voltage tp rr IO (m tp rr IO (m tp rr IO (m Time t (μs)...
Page 20 tp lt (V tp lt (V tp lt (V 4.0V (VR1/VR2) 4.0V (VR1/VR2) COUT=Ceramic 1.0μF COUT=Ceramic 2.2μF Output Current Output Current Output Voltage Output Voltage 3.9 tp rr IO (m 3.9 tp rr IO (m tp rr IO (m T...
Page 21 tp lt (V tp lt (V tp lt (V 14) Load Transient Response2 (tr=tf=0.5μs, CIN=1.0μF) 2.8V(VR1/VR2) 2.8V(VR1/VR2) COUT=Ceramic 1.0μF COUT=Ceramic 1.0μF VR1 Output Current VR2 Output Current 2.8 2.8 VR1 Out...
Page 22 tp lt (V tp lt (V tp lt (V 16) Turn on speed with CE Pin (CIN=Ceramic 1.0μF) 0.8V(VR1/VR2) 1.5V(VR1/VR2) VIN=1.8V, VIN=2.5V, COUT=Ceramic 2.2μF COUT=Ceramic 1.0μF CE Input Voltage CE Input Voltage Out...
Page 23 tp lt (V 2.8V(VR1/VR2) 4.0V(VR1/VR2) VIN=3.8V, VIN=5.0V, COUT=Ceramic 1.0μF COUT=Ceramic 1.0μF IOUT=0m A IOUT=0m A IOUT=0.1m A 3.8 IOUT=0.1m A 5.0 IOUT=10m A IOUT=10m A IOUT=150m A IOUT=150m A CE Inpu...
Page 24 ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the white no...
Page 25 1.0V(VR1/VR2) 1.2V(VR1/VR2) VIN=1.5V to 6.0V, VIN=1.65V to 6.0V, COUT=Ceramic 2.2μF,murata) COUT=Ceramic 1.0μF,murata) VIN1.5 Upper Limit(Ω) VIN1.65 Upper Limit(Ω) VIN1.5 Lower Limit(Ω) VIN1.65 Lower ...
Page 26 0.8V(VR1/VR2) 1.0V(VR1/VR2) VIN=1.5V to 6.0V, VIN=1.5V to 6.0V, COUT=Ceramic 2.2μF,kyocera) COUT=Ceramic 2.2μF,kyocera) VIN1.5 Upper Limit(Ω) VIN1.5 Upper Limit(Ω) VIN1.5 Lower Limit(Ω) VIN1.5 Lower L...
Page 27 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
