RICOH RP152x Series Low Voltage Dual 150mA LDO with sequence control
Summary
The RP152x is a versatile CMOS dual output Low Dropout (LDO) regulator, providing stable power up to 150mA for demanding electronics. This ultra-low quiescent current solution features highly customizable voltage outputs and optional built-in start-up sequence control for precise system initialization. Designed for engineers building battery-powered devices—such as handheld communication gear, cameras, and smart home appliances—it offers reliable performance across a wide 1.4V to 5.25V input range with minimized power dissipation.

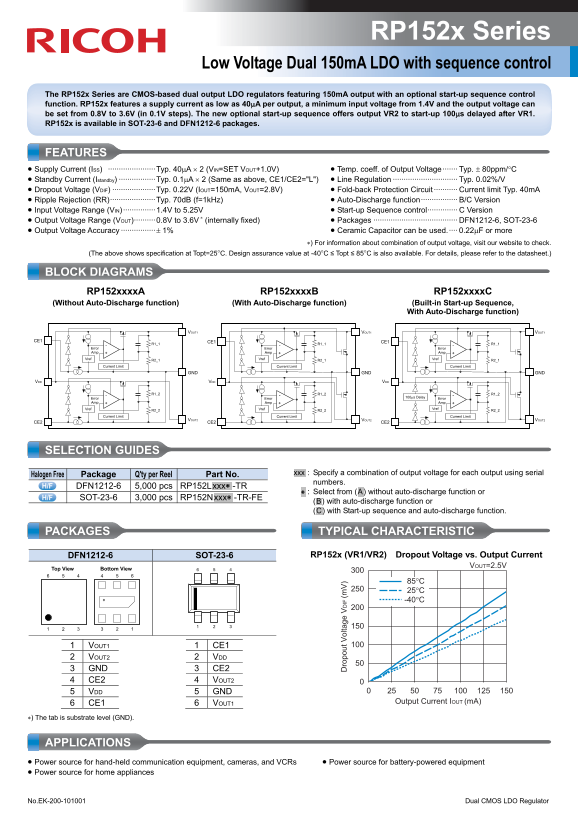

Page 1 Text Content
RP152x Series
Low Voltage Dual 150m A LDO with sequence control
The RP152x Series are CMOS-based dual output LDO regulators featuring 150m A output with an optional start-up sequence control function. RP152x features a supply current as low as 40μA per output, a minimum input voltage from 1.4V and the output voltage can be set from 0.8V to 3.6V (in 0.1V steps). The new optional start-up sequence offers output VR2 to start-up 100μs delayed after VR1. RP152x is available in SOT-23-6 and DFN1212-6 packages.
FEATURES • Supply Current (ISS) ······················Typ. 40μA × 2 (VIN=SET VOUT+1.0V) • Temp. coeff. of Output Voltage······· Typ. ± 80ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA × 2 (Same as above, CE1/CE2="L") • Line Regulation ······························ Typ. 0.02%/V • Dropout Voltage (VDIF) ····················Typ. 0.22V (IOUT=150m A, VOUT=2.8V) • Fold-back Protection Circuit ··········· Current limit Typ. 40m A • Ripple Rejection (RR)·····················Typ. 70d B (f=1k Hz) • Auto-Discharge function················· B/C Version • Input Voltage Range (VIN) ···············1.4V to 5.25V • Start-up Sequence control·············· C Version • Output Voltage Range (VOUT)··········0.8V to 3.6V ∗ (internally fixed) • Packages ······································· DFN1212-6, SOT-23-6 • Output Voltage Accuracy ················± 1% • Ceramic Capacitor can be used.···· 0.22μF or more
∗) For information about combination of output voltage, visit our website to check.
(The above shows specification at Topt=25°C. Design assurance value at -40°C ≤ Topt ≤ 85°C is also available. For details, please refer to the datasheet.)
BLOCK DIAGRAMS
RP152xxxx A RP152xxxx B RP152xxxx C
(Without Auto-Discharge function) (With Auto-Discharge function) (Built-in Start-up Sequence,
With Auto-Discharge function)
VOUT1 VOUT1 VOUT1
CE1 CE1 CE1
R1_1 ro po ut ol ta ge IF (m V) R1_1 R1_1
Error Error Error Amp + Amp Amp +
Vref R2_1 Vref R2_1 Vref R2_1
Current Limit Current Limit Current Limit
GND GND GND
VDD VDD VDD
R1_2 R1_2 - 100μs Delay R1_2
Error Error Error Amp + Amp Amp +
Vref R2_2 Vref R2_2 Vref R2_2
Current Limit Current Limit Current Limit
VOUT2 VOUT2 VOUT2
CE2 CE2 CE2
SELECTION GUIDES
Part No. .xxx. : Specify a combination of output voltage for each output using serial
Halogen Free Package Q'ty per Reel
numbers.
DFN1212-6 5,000 pcs RP152L.xxx∗ -TR
.∗ : Select from (.A.) without auto-discharge function or
SOT-23-6 3,000 pcs RP152N.xxx∗ -TR-FE
(.B.) with auto-discharge function or (.C.) with Start-up sequence and auto-discharge function.
PACKAGES TYPICAL CHARACTERISTIC
DFN1212-6 SOT-23-6 RP152x (VR1/VR2) Dropout Voltage vs. Output Current
Top View Bottom View VOUT=2.5V
1 VOUT1 1 CE1 2 VOUT2 2 VDD 3 GND 3 CE2 4 CE2 4 VOUT2 5 VDD 5 GND
6 CE1 6 VOUT1 Output Current IOUT (m A)
∗) The tab is substrate level (GND).
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Power source for home appliances
No.EK-200-101001 Dual CMOS LDO Regulator
Page Summary Contents For RICOH RP152x Series Low Voltage Dual 150mA LDO with sequence control
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 2 |
| File Size | 304.35 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the main specifications of the RP152x regulator?
It features dual outputs, 150mA capacity, a minimum input voltage of 1.4V, and an output range set from 0.8V to 3.6V.
Can I control the startup sequence between both outputs (VR1 and VR2)?
The RP152xxxxC version offers built-in start-up sequence control, delaying VR2 by 100μs relative to VR1.
Which packages are available for this product series?
RP152x is available in both SOT-23-6 and DFN1212-6 packages.
What protection circuits does the RP152x offer?
It includes Fold-back Protection Circuitry, Auto-Discharge function (B/C version), and Constant Current limit of Typ. 40mA.
