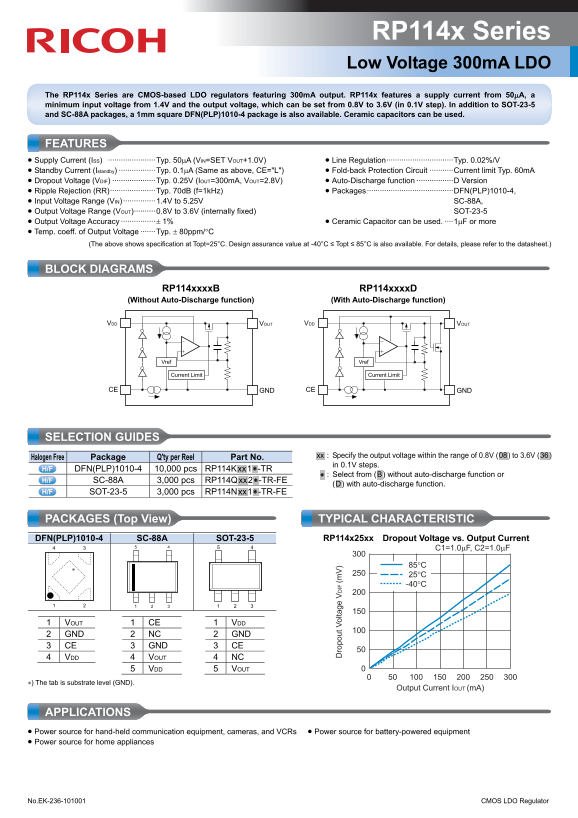

RP114x Series Low Voltage 300m A LDO
The RP114x Series are CMOS-based LDO regulators featuring 300m A output. RP114x features a supply current from 50μA, a minimum input voltage from 1.4V and the output voltage, which can be set from 0.8V to 3.6V (in 0.1V step). In addition to SOT-23-5 and SC-88A packages, a 1mm square DFN(PLP)1010-4 package is also available. Ceramic capacitors can be used.
FEATURES • Supply Current (ISS) ······················Typ. 50μA (VIN=SET VOUT+1.0V) • Line Regulation·······························Typ. 0.02%/V • Standby Current (Istandby) ·················Typ. 0.1μA (Same as above, CE="L") • Fold-back Protection Circuit ···········Current limit Typ. 60m A • Dropout Voltage (VDIF) ····················Typ. 0.25V (IOUT=300m A, VOUT=2.8V) • Auto-Discharge function ·················D Version • Ripple Rejection (RR)·····················Typ. 70d B (f=1k Hz) • Packages········································DFN(PLP)1010-4, • Input Voltage Range (VIN) ···············1.4V to 5.25V SC-88A, • Output Voltage Range (VOUT)··········0.8V to 3.6V (internally fixed) SOT-23-5 • Output Voltage Accuracy ················± 1% • Ceramic Capacitor can be used. ····1μF or more • Temp. coeff. of Output Voltage ·······Typ. ± 80ppm/°C
(The above shows specification at Topt=25°C. Design assurance value at -40°C ≤ Topt ≤ 85°C is also available. For details, please refer to the datasheet.)
BLOCK DIAGRAMS RP114xxxx B RP114xxxx D (Without Auto-Discharge function) (With Auto-Discharge function)
VDD VOUT VDD VOUT
ro po ut ol ta ge IF (m
Vref Vref
Current Limit Current Limit
CE GND CE GND
SELECTION GUIDES
.xx. : Specify the output voltage within the range of 0.8V (.08.) to 3.6V (.36.)
Halogen Free Package Q'ty per Reel Part No.
in 0.1V steps.
DFN(PLP)1010-4 10,000 pcs RP114K.xx.1.∗ -TR
.∗ : Select from (.B.) without auto-discharge function or
SC-88A 3,000 pcs RP114Q.xx.2.∗ -TR-FE
(.D.) with auto-discharge function.
SOT-23-5 3,000 pcs RP114N.xx.1.∗ -TR-FE
PACKAGES (Top View) TYPICAL CHARACTERISTIC
RP114x25xx Dropout Voltage vs. Output Current
DFN(PLP)1010-4 SC-88A SOT-23-5
1 VOUT 1 CE 1 VDD 2 GND 2 NC 2 GND 3 CE 3 GND 3 CE 4 VDD 4 VOUT 4 NC
5 VDD 5 VOUT
∗) The tab is substrate level (GND).
Output Current IOUT (m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Power source for home appliances
No.EK-236-101001 CMOS LDO Regulator
