The RP101x Series offers highly accurate, low dropout CMOS voltage regulators designed for demanding portable applications. Engineered with extremely low quiescent current and superior transient response, these ICs ensure stable power output (1.2V–3.3V) essential for professional-grade electronics. This technical summary provides comprehensive details on specifications, packages (DFN/SOT), electrical performance characteristics, and application guidelines. Ideal for engineers designing battery-powered communication equipment, portable cameras, or other reliable AC/DC powered home appliances.
Page 1 Text Content

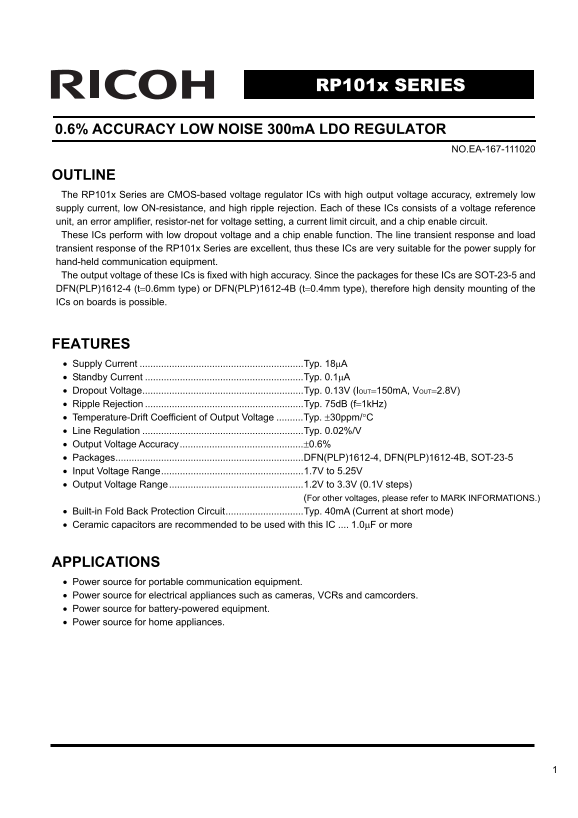

RP101x SERIES
0.6% ACCURACY LOW NOISE 300m A LDO REGULATOR
NO.EA-167-111020
OUTLINE The RP101x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit, and a chip enable circuit. These ICs perform with low dropout voltage and a chip enable function. The line transient response and load transient response of the RP101x Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. The output voltage of these ICs is fixed with high accuracy. Since the packages for these ICs are SOT-23-5 and DFN(PLP)1612-4 (t=0.6mm type) or DFN(PLP)1612-4B (t=0.4mm type), therefore high density mounting of the ICs on boards is possible.
FEATURES • Supply Current .............................................................Typ. 18μA • Standby Current ...........................................................Typ. 0.1μA • Dropout Voltage............................................................Typ. 0.13V (IOUT=150m A, VOUT=2.8V) • Ripple Rejection ...........................................................Typ. 75d B (f=1k Hz) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±30ppm/°C • Line Regulation ............................................................Typ. 0.02%/V • Output Voltage Accuracy..............................................±0.6% • Packages......................................................................DFN(PLP)1612-4, DFN(PLP)1612-4B, SOT-23-5 • Input Voltage Range.....................................................1.7V to 5.25V • Output Voltage Range..................................................1.2V to 3.3V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Fold Back Protection Circuit.............................Typ. 40m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC 1.0μF or more
APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment. • Power source for home appliances.
Page Summary Contents For RICOH RP101x SERIES Low Noise 300mA LDO REGULATOR datasheet specifications manual user guide
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 23 |
| File Size | 379.24 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of power sources are suitable for this regulator?
It is highly suited as the power source for portable communication, battery-powered, and general home appliances.
How does ripple rejection perform?
The typical ripple rejection is 75dB at a frequency of 1kHz.
Which capacitor should be used with this IC?
It is recommended to use ceramic capacitors of 1.0μF or more.
What is the input voltage range for the RP101x Series?
The input voltage can range from 1.7V to 5.25V.
