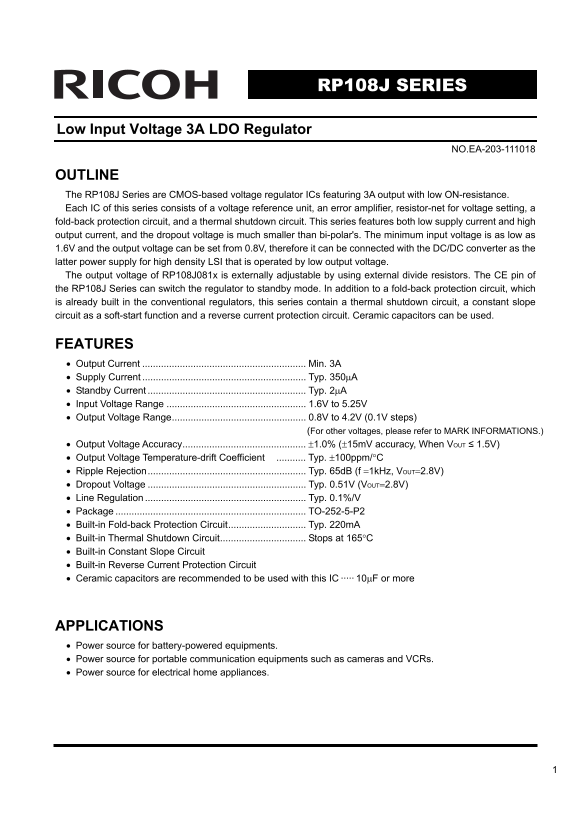

RP108J SERIES
Low Input Voltage 3A LDO Regulator
NO.EA-203-111018
OUTLINE The RP108J Series are CMOS-based voltage regulator ICs featuring 3A output with low ON-resistance. Each IC of this series consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a fold-back protection circuit, and a thermal shutdown circuit. This series features both low supply current and high output current, and the dropout voltage is much smaller than bi-polar's. The minimum input voltage is as low as 1.6V and the output voltage can be set from 0.8V, therefore it can be connected with the DC/DC converter as the latter power supply for high density LSI that is operated by low output voltage. The output voltage of RP108J081x is externally adjustable by using external divide resistors. The CE pin of the RP108J Series can switch the regulator to standby mode. In addition to a fold-back protection circuit, which is already built in the conventional regulators, this series contain a thermal shutdown circuit, a constant slope circuit as a soft-start function and a reverse current protection circuit. Ceramic capacitors can be used.
FEATURES • Output Current Min. 3A • Supply Current Typ. 350μA • Standby Current Typ. 2μA • Input Voltage Range 1.6V to 5.25V • Output Voltage Range.................................................. 0.8V to 4.2V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy.............................................. ±1.0% (±15m V accuracy, When VOUT ≤ 1.5V) • Output Voltage Temperature-drift Coefficient ........... Typ. ±100ppm/°C • Ripple Rejection........................................................... Typ. 65d B (f =1k Hz, VOUT=2.8V) • Dropout Voltage Typ. 0.51V (VOUT=2.8V) • Line Regulation Typ. 0.1%/V • Package TO-252-5-P2 • Built-in Fold-back Protection Circuit............................. Typ. 220m A • Built-in Thermal Shutdown Circuit................................ Stops at 165°C • Built-in Constant Slope Circuit • Built-in Reverse Current Protection Circuit • Ceramic capacitors are recommended to be used with this IC ····· 10μF or more
APPLICATIONS • Power source for battery-powered equipments. • Power source for portable communication equipments such as cameras and VCRs. • Power source for electrical home appliances.
