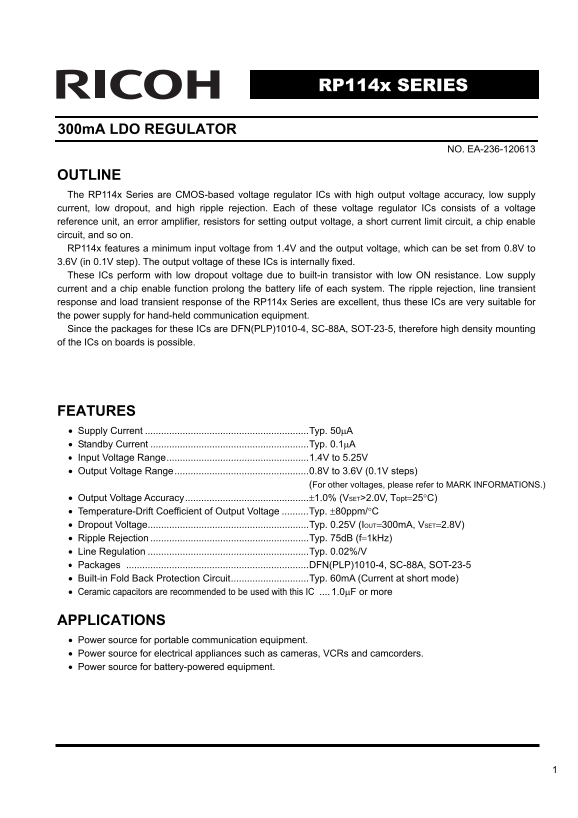

RP114x SERIES

300m A LDO REGULATOR

NO. EA-236-120613

OUTLINE The RP114x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dropout, and high ripple rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting output voltage, a short current limit circuit, a chip enable circuit, and so on. RP114x features a minimum input voltage from 1.4V and the output voltage, which can be set from 0.8V to 3.6V (in 0.1V step). The output voltage of these ICs is internally fixed. These ICs perform with low dropout voltage due to built-in transistor with low ON resistance. Low supply current and a chip enable function prolong the battery life of each system. The ripple rejection, line transient response and load transient response of the RP114x Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. Since the packages for these ICs are DFN(PLP)1010-4, SC-88A, SOT-23-5, therefore high density mounting of the ICs on boards is possible.

FEATURES • Supply Current .............................................................Typ. 50μA • Standby Current ...........................................................Typ. 0.1μA • Input Voltage Range.....................................................1.4V to 5.25V • Output Voltage Range..................................................0.8V to 3.6V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy..............................................±1.0% (VSET>2.0V, Topt=25°C) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±80ppm/°C • Dropout Voltage............................................................Typ. 0.25V (IOUT=300m A, VSET=2.8V) • Ripple Rejection ...........................................................Typ. 75d B (f=1k Hz) • Line Regulation ............................................................Typ. 0.02%/V • Packages ....................................................................DFN(PLP)1010-4, SC-88A, SOT-23-5 • Built-in Fold Back Protection Circuit.............................Typ. 60m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC .... 1.0μF or more

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH RP114x SERIES 300mA LDO REGULATOR datasheet user manual

Page 1 RP114x SERIES 300m A LDO REGULATOR NO. EA-236-120613 OUTLINE The RP114x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dropout, and high ripple ...
Page 2 RP114x BLOCK DIAGRAMS RP114xxxx B RP114xxxx D VDD VOUT VDD VOUT Vref Vref Current Limit Current Limit CE GND CE GND SELECTION GUIDE The set output voltage, auto discharge function, and package, etc. f...
Page 3 RP114x PIN CONFIGURATIONS • DFN(PLP)1010-4 • SC-88A • SOT-23-5 Top View Bottom View 3 4 (mark side) (mark side) PIN DESCRIPTIONS • DFN(PLP)1010-4 Pin No Symbol Pin Description 1 VOUT Output Pin 2 GND ...
Page 4 RP114x ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.0 V VCE Input Voltage (CE Pin) −0.3 to 6.0 V VOUT Output Voltage −0.3 to VIN+0.3 V IOUT Output Current 400 m A Power Dissipa...
Page 5 ow er is si pa tio (m RP114x POWER DISSIPATION (DFN(PLP)1010-4) This specification is at mounted on board. Power Dissipation (PD) depends on conditions of mounting on board. This specification is base...
Page 6 Po er is si pa tio (m RP114x POWER DISSIPATION (SC-88A) This specification is at mounted on board. Power Dissipation (PD) depends on conditions of mounting on board. This specification is based on the...
Page 7 Po er is si pa tio (m RP114x POWER DISSIPATION (SOT-23-5) This specification is at mounted on board. Power Dissipation (PD) depends on conditions of mounting on board. This specification is based on t...
Page 8 RP114x ELECTRICAL CHARACTERISTICS • RP114x VIN=VSET+1.0V (VSET > 1.5V), VIN=2.5V (VSET ≤ 1.5V), IOUT=1m A, CIN=COUT=1.0μF, unless otherwise noted. VSET is Set Output Voltage. The specification in i...
Page 9 RP114x • Dropout Voltage by Set Output Voltage Topt=25°C Dropout Voltage VDIF (V) Set Output Voltage VSET (V) Condition Typ. Max. VSET=0.8 0.560 0.720 VSET=0.9 0.510 0.650 1.0 ≤ VSET < 1.2 0.460 0....
Page 10 RP114x TYPICAL APPLICATIONS VDD VOUT VOUT C1 RP114x C2 Series CE GND (External Components) C2 Ceramic 1.0μF MURATA: GRM155B31A105KE15 TECHNICAL NOTES When using these ICs, consider the following point...
Page 11 RP114x TEST CIRCUITS VDD VOUT C1 RP114x VC2 VOUT IOUT Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF Basic Test Circuit VDD VOUT VOUT ISS C1 RP114x C2A Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF...
Page 12 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP114x TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=1.0μF, C2=1.0μF, Topt=25°C) RP114x08xx RP114x25xx VIN=1.8V VIN...
Page 13 up pl ur re nt (µ up pl ur re nt (µ RP114x ut pu t V ol ta ge (V RP114x36xx 4.0 3.5 3.0 2.5 2.0 1.5 IOUT=1m A IOUT=30m A IOUT=50m A Input Voltage VIN (V) 3) Supply Current vs. Input Voltage (C1=1.0μF,...
Page 14 ut pu t V ol ta ge (V ut pu t V ol ta ge (V up pl ur re nt SS (μ RP114x 4) Output Voltage vs. Temperature (C1=1.0μF, C2=1.0μF, IOUT=1m A) RP114x08xx RP114x25xx VIN=1.8V VIN=3.5V ut pu t V ol ta ge (V ...
Page 15 up pl ur re nt SS (μ ro po ut ol ta ge IF (m ro po ut ol ta ge IF (m RP114x RP114x36xx VIN=4.6V Temperature Topt (°C) 6) Dropout Voltage vs. Output Current (C1=1.0μF, C2=1.0μF) ro po ut ol ta ge IF (m...
Page 16 ro po ut ol ta ge IF (m ro po ut ol ta ge IF (m ro po ut ol ta ge IF (m RP114x 7) Dropout Voltage vs. Set Output Voltage (C1=1.0μF, C2=1.0μF, Topt=25°C) IOUT=30m A IOUT=100m A IOUT=300m A Set Output V...
Page 17 ip pl ej ec tio (d RP114x ip pl ej ec tio (d ip pl ej ec tio (d 9) Ripple Rejection vs. Input Voltage (C1=none, C2=1.0μF, Ripple=0.2Vp-p, Topt=25°C) RP114x25xx RP114x25xx IOUT=1m A IOUT=30m A 1k Hz 1k...
Page 18 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP114x 11) Input Transient Response (IOUT=30m A, tr=tf=5μs, Topt=25°C) RP114x08xx RP114x25xx Input Voltage Input Voltage Output Voltag...
Page 19 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP114x RP114x36xx VIN=4.6V Output Current 50m A<-->100m A Output Voltage Time t (µs) ut pu t C ur re nt (m ut pu t C ur re nt (m...
Page 20 ut pu t V ol tg ag (V ut pu t V ol tg ag (V ut pu t V ol tg ag (V RP114x 13) Turn On Speed with CE pin (C1=1.0μF, C2=1.0μF, Topt=25°C) RP114x08xx RP114x25xx VIN=1.8V VIN=3.5V CE Input Voltage CE Input...
Page 21 ut pu t V ol tg ag (V ut pu t V ol tg ag (V ut pu t V ol tg ag (V RP114x RP114x36x B VIN=4.6V CE Input Voltage IOUT=0m A Output Voltage In pu t V ol ta ge (V In pu t V ol ta ge (V In pu t V ol ta ge (...
Page 22 RP114x ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the w...
Page 23 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
