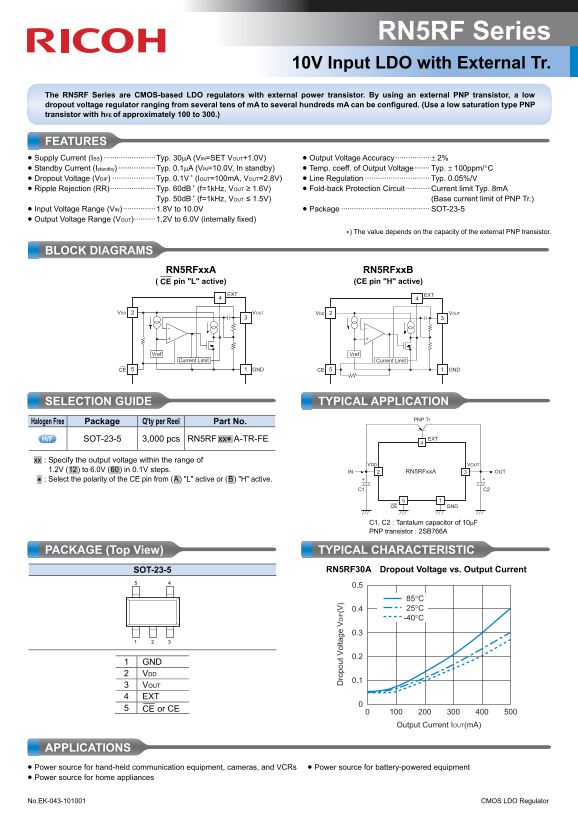

RN5RF Series 10V Input LDO with External Tr.
The RN5RF Series are CMOS-based LDO regulators with external power transistor. By using an external PNP transistor, a low dropout voltage regulator ranging from several tens of m A to several hundreds m A can be configured. (Use a low saturation type PNP transistor with h FE of approximately 100 to 300.)
FEATURES • Supply Current (ISS) ························Typ. 30μA (VIN=SET VOUT+1.0V) • Output Voltage Accuracy················ ± 2% • Standby Current (Istandby) ·················Typ. 0.1μA (VIN=10.0V, In standby) • Temp. coeff. of Output Voltage······· Typ. ± 100ppm/°C • Dropout Voltage (VDIF) ····················Typ. 0.1V ∗ (IOUT=100m A, VOUT=2.8V) • Line Regulation ······························ Typ. 0.05%/V • Ripple Rejection (RR)·····················Typ. 60d B ∗ (f=1k Hz, VOUT ≥ 1.6V) • Fold-back Protection Circuit ··········· Current limit Typ. 8m A Typ. 50d B ∗ (f=1k Hz, VOUT ≤ 1.5V) (Base current limit of PNP Tr.) • Input Voltage Range (VIN) ···············1.8V to 10.0V • Package ········································· SOT-23-5 • Output Voltage Range (VOUT)··········1.2V to 6.0V (internally fixed)
∗) The value depends on the capacity of the external PNP transistor.
BLOCK DIAGRAMS RN5RFxx A RN5RFxx B
CE pin "L" active) (CE pin "H" active)
EXT EXT
VDD VOUT VDD VOUT
ro lt IF (V Vref Vref
Current Limit Current Limit
CE GND CE GND
SELECTION GUIDE TYPICAL APPLICATION
PNP Tr
Halogen Free Package Q'ty per Reel Part No.
SOT-23-5 3,000 pcs RN5RF .xx∗ A-TR-FE
.xx. : Specify the output voltage within the range of
VDD VOUT
1.2V (.12.) to 6.0V (.60.) in 0.1V steps. IN RN5RFxx A OUT .∗. : Select the polarity of the CE pin from (.A.) "L" active or (.B.) "H" active.
GNDCE
C1, C2 : Tantalum capacitor of 10μF PNP transistor : 2SB766A
PACKAGE (Top View) TYPICAL CHARACTERISTIC
SOT-23-5 RN5RF30A Dropout Voltage vs. Output Current
1 GND 2 VDD
3 VOUT 4 EXT 5 CE or CE
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Power source for home appliances
No.EK-043-101001 CMOS LDO Regulator
