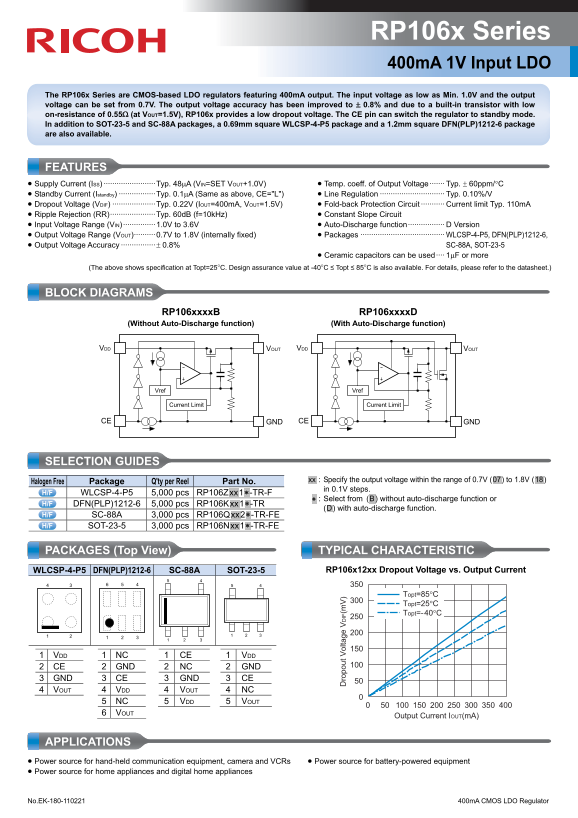

RP106x Series 400m A 1V Input LDO

The RP106x Series are CMOS-based LDO regulators featuring 400m A output. The input voltage as low as Min. 1.0V and the output voltage can be set from 0.7V. The output voltage accuracy has been improved to ± 0.8% and due to a built-in transistor with low on-resistance of 0.55Ω (at VOUT=1.5V), RP106x provides a low dropout voltage. The CE pin can switch the regulator to standby mode. In addition to SOT-23-5 and SC-88A packages, a 0.69mm square WLCSP-4-P5 package and a 1.2mm square DFN(PLP)1212-6 package are also available.

FEATURES • Supply Current (ISS) ························Typ. 48μA (VIN=SET VOUT+1.0V) • Temp. coeff. of Output Voltage······· Typ. ± 60ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (Same as above, CE="L") • Line Regulation ······························ Typ. 0.10%/V • Dropout Voltage (VDIF) ····················Typ. 0.22V (IOUT=400m A, VOUT=1.5V) • Fold-back Protection Circuit ··········· Current limit Typ. 110m A • Ripple Rejection (RR)·····················Typ. 60d B (f=10k Hz) • Constant Slope Circuit • Input Voltage Range (VIN) ···············1.0V to 3.6V • Auto-Discharge function················· D Version • Output Voltage Range (VOUT)··········0.7V to 1.8V (internally fixed) • Packages ······································· WLCSP-4-P5, DFN(PLP)1212-6, • Output Voltage Accuracy ················± 0.8% SC-88A, SOT-23-5

• Ceramic capacitors can be used···· 1μF or more

(The above shows specification at Topt=25°C. Design assurance value at -40°C ≤ Topt ≤ 85°C is also available. For details, please refer to the datasheet.)

BLOCK DIAGRAMS RP106xxxx B RP106xxxx D (Without Auto-Discharge function) (With Auto-Discharge function)

ro po ut ol ta ge IF (m

VDD VOUT VDD VOUT

Vref Vref

Current Limit Current Limit

CE GND CE GND

SELECTION GUIDES

.xx. : Specify the output voltage within the range of 0.7V (.07.) to 1.8V (.18.)

Halogen Free Package Q'ty per Reel Part No.

in 0.1V steps.

WLCSP-4-P5 5,000 pcs RP106Z.xx.1.∗ -TR-F

.∗ : Select from (.B.) without auto-discharge function or

DFN(PLP)1212-6 5,000 pcs RP106K.xx.1.∗ -TR

(.D.) with auto-discharge function.

SC-88A 3,000 pcs RP106Q.xx.2.∗ -TR-FE SOT-23-5 3,000 pcs RP106N.xx.1.∗ -TR-FE

PACKAGES (Top View) TYPICAL CHARACTERISTIC

WLCSP-4-P5 DFN(PLP)1212-6 SC-88A SOT-23-5 RP106x12xx Dropout Voltage vs. Output Current

Topt=85°C Topt=25°C Topt=-40°C

1 VDD 1 NC 1 CE 1 VDD 2 CE 2 GND 2 NC 2 GND 3 GND 3 CE 3 GND 3 CE 4 VOUT 4 VDD 4 VOUT 4 NC

5 NC 5 VDD 5 VOUT 6 VOUT

Output Current IOUT(m A)

APPLICATIONS • Power source for hand-held communication equipment, camera and VCRs • Power source for battery-powered equipment • Power source for home appliances and digital home appliances

No.EK-180-110221 400m A CMOS LDO Regulator
