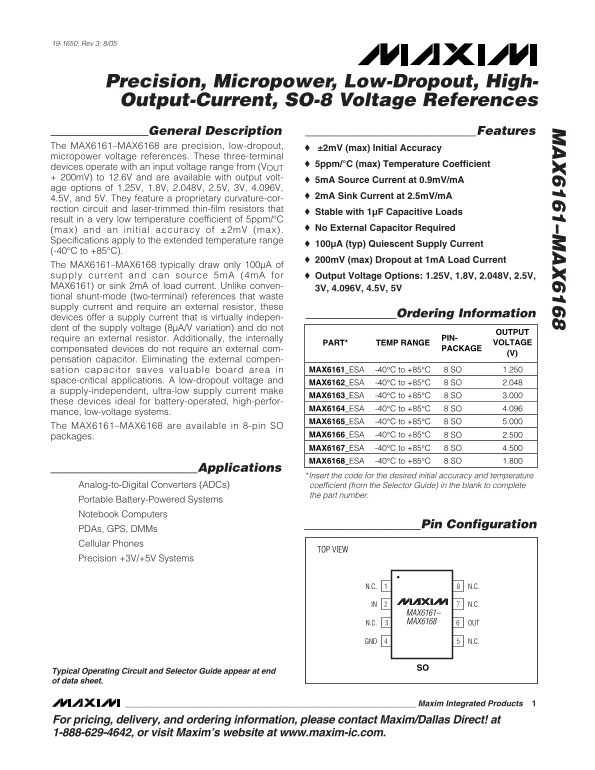

MAXIM MAX6161–MAX6168 Precision, Micropower, Low- Dropout, High Output-Current, SO-8 Voltage References

19-1650; Rev 3; 8/05

Precision, Micropower, Low-Dropout, High- Output-Current, SO-8 Voltage References General Description ____________________________Features The MAX6161–MAX6168 are precision, low-dropout, ±2m V (max) Initial Accuracy

micropower voltage references. These three-terminal

5ppm/°C (max) Temperature Coefficient

devices operate with an input voltage range from (VOUT + 200m V) to 12.6V and are available with output volt-

5m A Source Current at 0.9m V/m A

age options of 1.25V, 1.8V, 2.048V, 2.5V, 3V, 4.096V,

2m A Sink Current at 2.5m V/m A

4.5V, and 5V. They feature a proprietary curvature-cor- rection circuit and laser-trimmed thin-film resistors that

Stable with 1µF Capacitive Loads

result in a very low temperature coefficient of 5ppm/°C

(max) and an init ial accuracy of ±2m V (max). No External Capacitor Required

Specifications apply to the extended temperature range

100µA (typ) Quiescent Supply Current

(-40°C to +85°C).

200m V (max) Dropout at 1m A Load Current

The MAX6161–MAX6168 typically draw only 100µA of supply current and can source 5m A (4m A for Output Voltage Options: 1.25V, 1.8V, 2.048V, 2.5V, MAX6161) or sink 2m A of load current. Unlike conven-

tional shunt-mode (two-terminal) references that waste supply current and require an external resistor, these

Ordering Information

devices offer a supply current that is virtually indepen- dent of the supply voltage (8µA/V variation) and do not

OUTPUT

require an external resistor. Additionally, the internally PIN-

PART* TEMP RANGE VOLTAGE

compensated devices do not require an external com- PACKAGE

pensation capacitor. Eliminating the external compen-

sation capacitor saves valuable board area in MAX6161_ESA -40°C to +85°C 8 SO 1.250

space-critical applications. A low-dropout voltage and MAX6162_ESA -40°C to +85°C 8 SO 2.048 a supply-independent, ultra-low supply current make

MAX6163_ESA -40°C to +85°C 8 SO 3.000

these devices ideal for battery-operated, high-perfor-

MAX6164_ESA -40°C to +85°C 8 SO 4.096

mance, low-voltage systems.

MAX6165_ESA -40°C to +85°C 8 SO 5.000

The MAX6161–MAX6168 are available in 8-pin SO

packages. MAX6166_ESA -40°C to +85°C 8 SO 2.500 MAX6167_ESA -40°C to +85°C 8 SO 4.500 MAX6168_ESA -40°C to +85°C 8 SO 1.800

________________________Applications

*Insert the code for the desired initial accuracy and temperature

Analog-to-Digital Converters (ADCs) coefficient (from the Selector Guide) in the blank to complete

the part number.

Portable Battery-Powered Systems Notebook Computers

___________________Pin Configuration

PDAs, GPS, DMMs Cellular Phones

TOP VIEW

Precision +3V/+5V Systems

N.C.IN

MAX6161– N.C. MAX6168 OUT

N.C.GND

Typical Operating Circuit and Selector Guide appear at end of data sheet.
