These low-current, high-brightness SMD LEDs are engineered in the ultrafine 0603 package, offering a robust solution for demanding miniature applications. Providing exceptional reliability and a wide 160° viewing angle, they are automotive qualified and suitable for critical systems like navigation displays, backlit keypads, and industrial controls. This manual details comprehensive technical specifications, including absolute ratings, optical characteristics (Red, Orange, Yellow), and application guidelines to ensure perfect implementation in your smallest electronic designs.

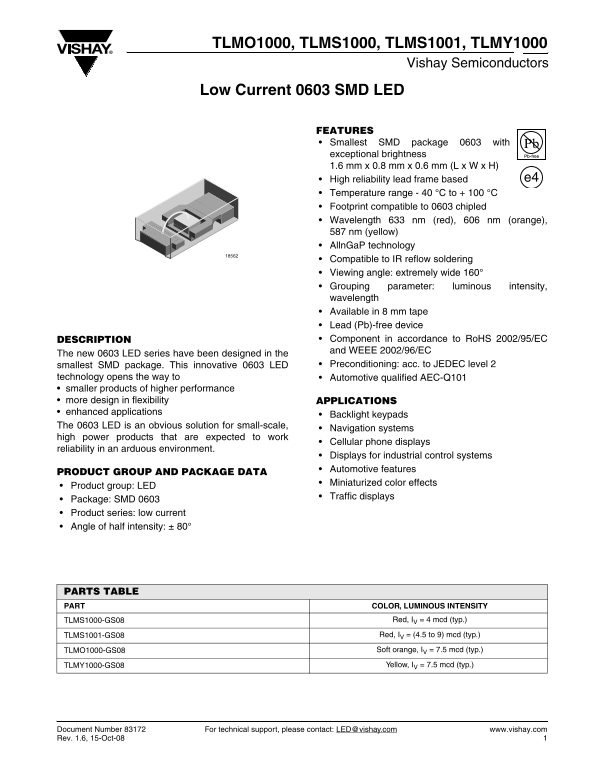

Page 1 Text Content
TLMO1000, TLMS1000, TLMS1001, TLMY1000
Vishay Semiconductors
Low Current 0603 SMD LED
FEATURES Smallest SMD package 0603 with exceptional brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H)
High reliability lead frame based e4
Temperature range - 40 °C to + 100 °C Footprint compatible to 0603 chipled Wavelength 633 nm (red), 606 nm (orange), 587 nm (yellow) Alln Ga P technology Compatible to IR reflow soldering Viewing angle: extremely wide 160° Grouping parameter: luminous intensity, wavelength Available in 8 mm tape Lead (Pb)-free device DESCRIPTION Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
The new 0603 LED series have been designed in the
smallest SMD package. This innovative 0603 LED Preconditioning: acc. to JEDEC level 2
technology opens the way to Automotive qualified AEC-Q101 • smaller products of higher performance • more design in flexibility APPLICATIONS • enhanced applications
Backlight keypads
The 0603 LED is an obvious solution for small-scale,
Navigation systems
high power products that are expected to work
Cellular phone displays
reliability in an arduous environment.
Displays for industrial control systems Automotive features
PRODUCT GROUP AND PACKAGE DATA
Miniaturized color effects
Product group: LED
Traffic displays
Package: SMD 0603 Product series: low current Angle of half intensity: ± 80°
PARTS TABLE PART COLOR, LUMINOUS INTENSITY
TLMS1000-GS08 Red, IV = 4 mcd (typ.)
TLMS1001-GS08 Red, IV = (4.5 to 9) mcd (typ.)
TLMO1000-GS08 Soft orange, IV = 7.5 mcd (typ.)
TLMY1000-GS08 Yellow, IV = 7.5 mcd (typ.)
Document Number 83172 For technical support, please contact: [email protected] www.vishay.com Rev. 1.6, 15-Oct-08
Page Summary Contents For VISHAY - TLMO1000, TLMS1000, TLMS1001, TLMY1000 Low Current 0603 SMD LED Data Manual
Manual Details
| Brand | Current |
|---|---|
| Pages | 11 |
| File Size | 187.31 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical operating temperature range for this LED series?
The operating temperature range is -40 °C to +100 °C ambient.
What package size and soldering method is required for installation?
It uses an SMD 0603 package and is compatible with IR reflow soldering.
Is reverse voltage operation acceptable, and if so, for how long?
Driving the LED in reverse direction is suitable only for short term application.
What is the maximum power dissipation allowed?
The specified power dissipation (P) is 40 mW.
