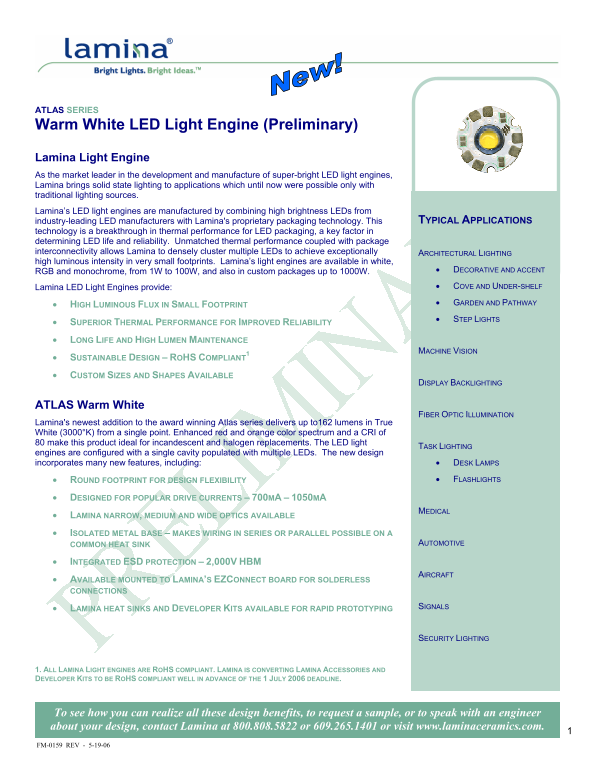

LAMINA ATLAS SERIES Warm White LED Light Engine (Preliminary) Owner's Manual

ATLAS SERIES Warm White LED Light Engine (Preliminary)

Lamina Light Engine As the market leader in the development and manufacture of super-bright LED light engines, Lamina brings solid state lighting to applications which until now were possible only with traditional lighting sources. Lamina’s LED light engines are manufactured by combining high brightness LEDs from

industry-leading LED manufacturers with Lamina's proprietary packaging technology. This TYPICAL APPLICATIONS

technology is a breakthrough in thermal performance for LED packaging, a key factor in determining LED life and reliability. Unmatched thermal performance coupled with package interconnectivity allows Lamina to densely cluster multiple LEDs to achieve exceptionally ARCHITECTURAL LIGHTING high luminous intensity in very small footprints. Lamina’s light engines are available in white,

RGB and monochrome, from 1W to 100W, and also in custom packages up to 1000W. • DECORATIVE AND ACCENT Lamina LED Light Engines provide: • COVE AND UNDER-SHELF • HIGH LUMINOUS FLUX IN SMALL FOOTPRINT • GARDEN AND PATHWAY • STEP LIGHTS

• SUPERIOR THERMAL PERFORMANCE FOR IMPROVED RELIABILITY • LONG LIFE AND HIGH LUMEN MAINTENANCE

MACHINE VISION

• SUSTAINABLE DESIGN – ROHS COMPLIANT1 • CUSTOM SIZES AND SHAPES AVAILABLE

DISPLAY BACKLIGHTING

ATLAS Warm White

FIBER OPTIC ILLUMINATION

Lamina's newest addition to the award winning Atlas series delivers up to162 lumens in True White (3000°K) from a single point. Enhanced red and orange color spectrum and a CRI of 80 make this product ideal for incandescent and halogen replacements. The LED light

TASK LIGHTING

engines are configured with a single cavity populated with multiple LEDs. The new design incorporates many new features, including: • DESK LAMPS

• ROUND FOOTPRINT FOR DESIGN FLEXIBILITY • FLASHLIGHTS

• DESIGNED FOR POPULAR DRIVE CURRENTS – 700MA – 1050MA

MEDICAL

• LAMINA NARROW, MEDIUM AND WIDE OPTICS AVAILABLE • ISOLATED METAL BASE – MAKES WIRING IN SERIES OR PARALLEL POSSIBLE ON A

COMMON HEAT SINK AUTOMOTIVE

• INTEGRATED ESD PROTECTION – 2,000V HBM

AIRCRAFT

• AVAILABLE MOUNTED TO LAMINA’S EZCONNECT BOARD FOR SOLDERLESS CONNECTIONS

• LAMINA HEAT SINKS AND DEVELOPER KITS AVAILABLE FOR RAPID PROTOTYPING SIGNALS

SECURITY LIGHTING

1. ALL LAMINA LIGHT ENGINES ARE ROHS COMPLIANT. LAMINA IS CONVERTING LAMINA ACCESSORIES AND DEVELOPER KITS TO BE ROHS COMPLIANT WELL IN ADVANCE OF THE 1 JULY 2006 DEADLINE.

To see how you can realize all these design benefits, to request a sample, or to speak with an engineer about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com. FM-0159 REV - 5-19-06
