STEP-UP DC DC CONVERTER FOR WHITE LED BACK LIGHT - RICOH R1203x Series Owner's Manual, Data Sheet

Summary

The R1203x series is a high-efficiency, PWM control step-up DC/DC converter IC specifically designed for driving constant current White LED backlights in portable equipment. This manual provides comprehensive technical documentation, including the electrical characteristics, pin configurations (DFN1616-6B and SOT-23-6), and detailed application guides necessary to integrate the chip. It covers features such as adjustable LED dimming via PWM input signals and robust protection circuits like UVLO and OVP. This product is essential for electronics designers developing low-voltage, high-brightness white LED lighting solutions.

📄 Preview PAGE OF 13

Page 1 Text Content

R1203x SERIES

STEP-UP DC/DC CONVERTER FOR WHITE LED BACK LIGHT

NO.EA-271-111123

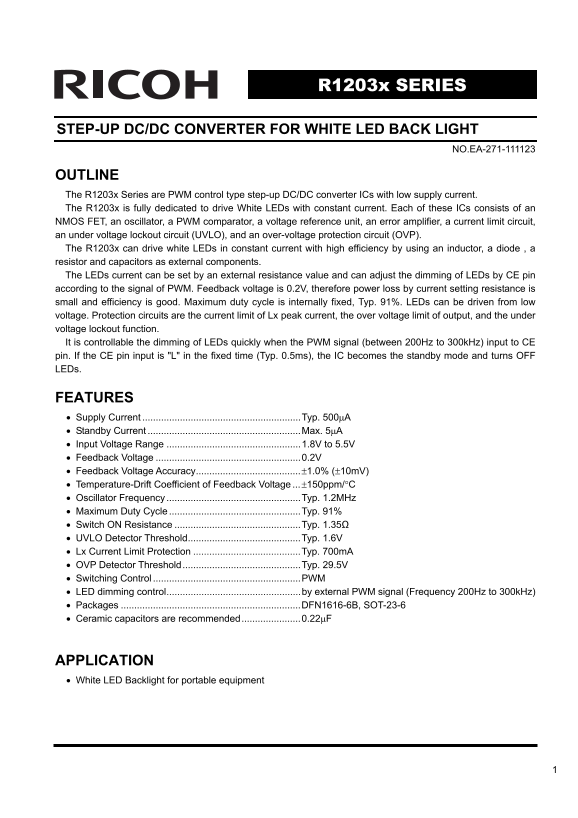

OUTLINE The R1203x Series are PWM control type step-up DC/DC converter ICs with low supply current. The R1203x is fully dedicated to drive White LEDs with constant current. Each of these ICs consists of an NMOS FET, an oscillator, a PWM comparator, a voltage reference unit, an error amplifier, a current limit circuit, an under voltage lockout circuit (UVLO), and an over-voltage protection circuit (OVP). The R1203x can drive white LEDs in constant current with high efficiency by using an inductor, a diode , a resistor and capacitors as external components. The LEDs current can be set by an external resistance value and can adjust the dimming of LEDs by CE pin according to the signal of PWM. Feedback voltage is 0.2V, therefore power loss by current setting resistance is small and efficiency is good. Maximum duty cycle is internally fixed, Typ. 91%. LEDs can be driven from low voltage. Protection circuits are the current limit of Lx peak current, the over voltage limit of output, and the under voltage lockout function. It is controllable the dimming of LEDs quickly when the PWM signal (between 200Hz to 300k Hz) input to CE pin. If the CE pin input is "L" in the fixed time (Typ. 0.5ms), the IC becomes the standby mode and turns OFF LEDs.

FEATURES • Supply Current ...........................................................Typ. 500μA • Standby Current .........................................................Max. 5μA • Input Voltage Range ..................................................1.8V to 5.5V • Feedback Voltage ......................................................0.2V • Feedback Voltage Accuracy.......................................±1.0% (±10m V) • Temperature-Drift Coefficient of Feedback Voltage ...±150ppm/°C • Oscillator Frequency ..................................................Typ. 1.2MHz • Maximum Duty Cycle .................................................Typ. 91% • Switch ON Resistance ...............................................Typ. 1.35Ω • UVLO Detector Threshold..........................................Typ. 1.6V • Lx Current Limit Protection ........................................Typ. 700m A • OVP Detector Threshold............................................Typ. 29.5V • Switching Control .......................................................PWM • LED dimming control..................................................by external PWM signal (Frequency 200Hz to 300k Hz) • Packages ...................................................................DFN1616-6B, SOT-23-6 • Ceramic capacitors are recommended......................0.22μF

APPLICATION • White LED Backlight for portable equipment

Page Summary Contents For STEP-UP DC DC CONVERTER FOR WHITE LED BACK LIGHT - RICOH R1203x Series Owner's Manual, Data Sheet

Page 1 R1203x SERIES STEP-UP DC/DC CONVERTER FOR WHITE LED BACK LIGHT NO.EA-271-111123 OUTLINE The R1203x Series are PWM control type step-up DC/DC converter ICs with low supply current. The R1203x is fully ...
Page 2 BLOCK DIAGRAMS VFB VIN LX VOUT Err. Amp. PWM Comp. Switch Control S OVP Oscillator PWM Cntrl Slope Com- Current Current pensation EN Protect sense Shutdown delay CE GND SELECTION GUIDE The package for...
Page 3 PIN CONFIGURATIONS • DFN1616-6B • SOT-23-6 Top View Bottom View 5 4 (mark side) PIN DESCRIPTIONS • DFN1616-6B Pin No Symbol Pin Description 1 CE Chip Enable Pin ("H" Active) 2 VFB Feedback P...
Page 4 ABSOLUTE MAXIMUM RATINGS (GND=0V) Symbol Item Rating Unit VIN VIN Pin Voltage −0.3 to 6.5 V VCE CE Pin Voltage −0.3 to VIN+0.3 V VFB VFB Pin Voltage −0.3 to VIN+0.3 V VOUT VOUT Pin Voltage −0.3 to 32 ...
Page 5 ELECTRICAL CHARACTERISTICS • R1203x (Ta=25°C) Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 1.8 5.5 V IDD Supply Current VIN=5.5V, VFB=0V, Lx at no load 0.5 1.0 m A Istandby S...
Page 6 TYPICAL APPLICATIONS VIN LX C1 CM105B105K06 CE VOUT C2 GRM21BR71H224 L1 LQH32CN220K53 GND VFB • LED Current setting When CE pin input is "H" (Duty=100%), LED current can be set with feedback...
Page 7 • Soft-Start The output of the error amplifier starts from 0V and the inrush current is suppressed when starting by the CE pin "H" input. Moreover, the inrush current can be suppressed by gr...
Page 8 OPERATION OF STEP-UP DC/DC CONVERTER AND OUTPUT CURRENT <Basic Circuit> Diode IOUT VIN VOUT CL Lx Tr <Current through L> Discontinuous mode Continuous mode ILmax IL IL ILmax ILmin ILmin to...
Page 9 In the continuous mode, the variation of current of i1 and i2 is same at regular condition. VIN × ton / L = (VOUT − VIN) × toff / L........................................................................
Page 10 FB ol ta ge (V ut pu t C ur re nt (m ffi ci en cy TYPICAL CHARACTERISTICS 1) Efficiency vs. Output Current Characteristics 6LEDs 7LEDs T/C ol ta ge (V VIN=2.8V .8V VIN=2.8V VIN=2.8V VIN=3.6V VIN=3.6V ...
Page 11 FB ol ta ge (V FB ol ta ge (V Fr eq ue nc fo sc (k z) f=300k Hz 0.6 T/C ol ta ge (V Time t (µs) 4) VFB Voltage vs. Temperature 5) Supply Current vs. Temperature up pl ur re nt (µ ax du ty Temparature ...
Page 12 ut pu t V ol ta ge T ( itc es is ta nc (Ω LO ol ta ge (V 8) UVLO Output Voltage vs. Temperature 9) OVP Voltage vs. Temperature UVLO Released Voltage OVP Detector Voltage UVLO Detector Voltage 27.5 OVP...
Page 13 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
