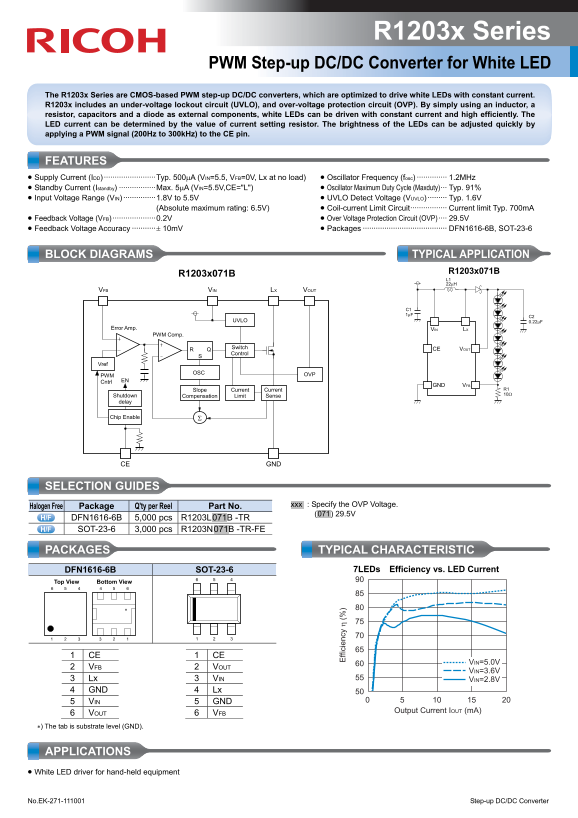

R1203x Series
PWM Step-up DC/DC Converter for White LED
The R1203x Series are CMOS-based PWM step-up DC/DC converters, which are optimized to drive white LEDs with constant current. R1203x includes an under-voltage lockout circuit (UVLO), and over-voltage protection circuit (OVP). By simply using an inductor, a resistor, capacitors and a diode as external components, white LEDs can be driven with constant current and high efficiently. The LED current can be determined by the value of current setting resistor. The brightness of the LEDs can be adjusted quickly by applying a PWM signal (200Hz to 300k Hz) to the CE pin.
FEATURES • Supply Current (IDD) ························Typ. 500μA (VIN=5.5, VFB=0V, Lx at no load) • Oscillator Frequency (fosc) ·············· 1.2MHz • Standby Current (Istandby) ·················Max. 5μA (VIN=5.5V,CE="L") • Oscillator Maximum Duty Cycle (Maxduty)··· Typ. 91% • Input Voltage Range (VIN) ···············1.8V to 5.5V • UVLO Detect Voltage (VUVLO) ········· Typ. 1.6V (Absolute maximum rating: 6.5V) • Coil-current Limit Circuit················· Current limit Typ. 700m A • Feedback Voltage (VFB)····················0.2V • Over Voltage Protection Circuit (OVP)···· 29.5V • Feedback Voltage Accuracy ···········± 10m V • Packages ······································· DFN1616-6B, SOT-23-6
BLOCK DIAGRAMS TYPICAL APPLICATION
VFB VIN LX VOUT
UVLO 0.22μF
Error Amp. VIN LX
PWM Comp. Ef fic ie nc
Switch CE VOUT
Control
OSC OVP
PWM Cntrl EN
GND VFB
Slope Current Current R1 Sense Shutdown 10Ω
Compensation Limit
delay
Chip Enable
CE GND
SELECTION GUIDES
Part No. .xxx : Specify the OVP Voltage.
Halogen Free Package Q'ty per Reel
DFN1616-6B 5,000 pcs R1203L.071B -TR SOT-23-6 3,000 pcs R1203N.071B -TR-FE
PACKAGES TYPICAL CHARACTERISTIC
DFN1616-6B SOT-23-6 7LEDs Efficiency vs. LED Current
Top View Bottom View 6 5 4 4 5 6
1 CE 1 CE
VIN=5.0V
2 VFB 2 VOUT
VIN=3.6V
3 Lx 3 VIN VIN=2.8V 4 GND 4 Lx 5 VIN 5 GND
Output Current IOUT (m A)
6 VOUT 6 VFB ∗) The tab is substrate level (GND).
APPLICATIONS • White LED driver for hand-held equipment
No.EK-271-111001 Step-up DC/DC Converter
