Philips Vaya LED Sport Light Installation Guide
Summary
Discover comprehensive installation guidelines for Philips professional LED luminaire fixtures, designed for both surface and landscape architectural lighting projects. This manual serves as an essential resource for qualified electricians, detailing everything from physical mounting techniques to advanced electrical wiring specifications. It provides clear diagrams and technical notes on AC power connections, DMX data signal layouts, and adherence to international safety standards. Use this guide to ensure a professional, compliant, and reliable setup of your outdoor lighting system.
Page 1 Text Content

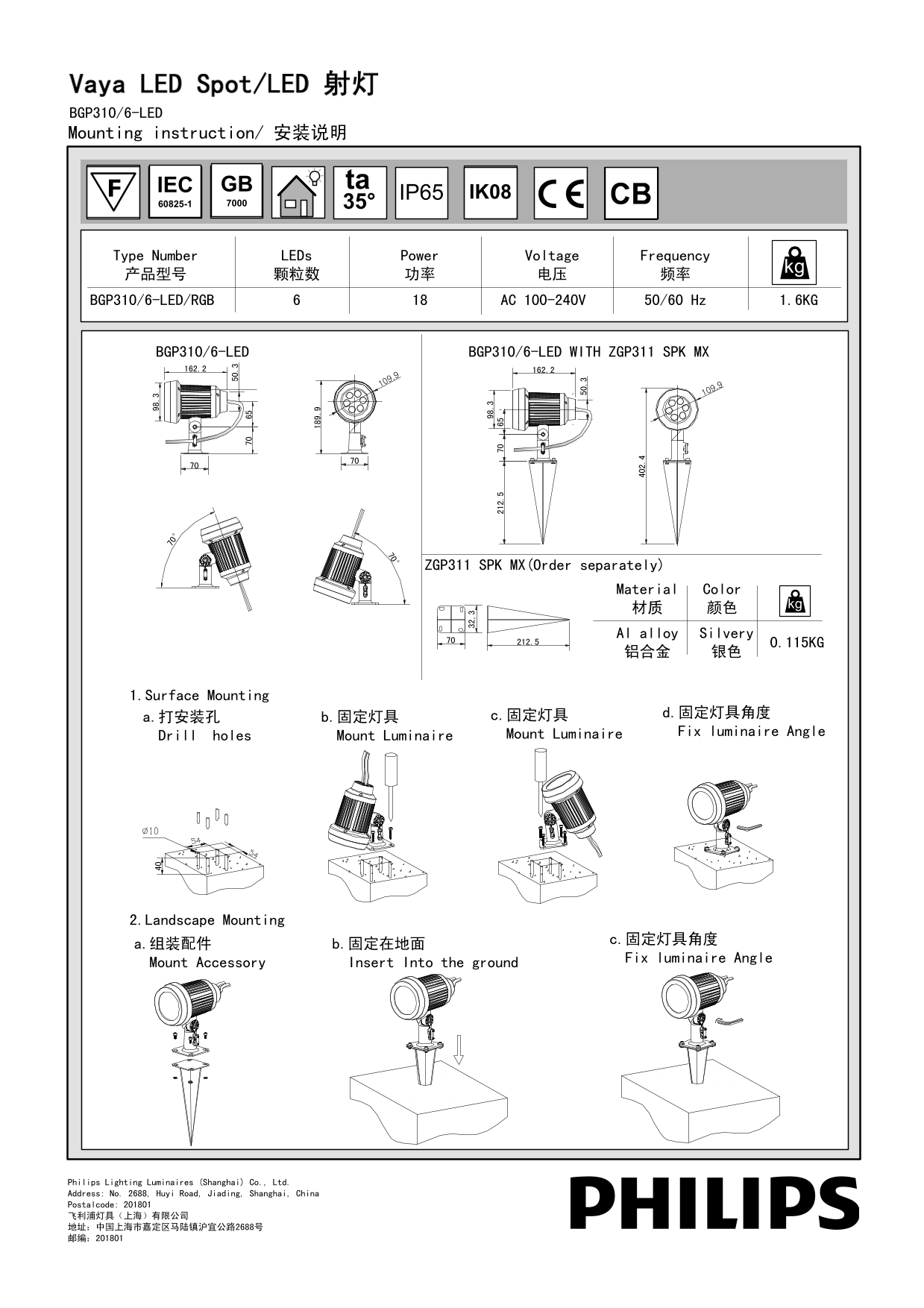

BGP310/6-LED Mounting instruction/ 安装说明
IEC GB ta
IP65 IK08
Type Number LEDs Power Voltage Frequency 产品型号 颗粒数 功率 电压 频率
BGP310/6-LED/RGB AC 100-240V 50/60 Hz 1.6KG
BGP310/6-LED BGP310/6-LED WITH ZGP311 SPK MX 162.2 162.2
ZGP311 SPK MX(Order separately)
Material Color 材质 颜色 Al alloy Silvery
212.570 0.115KG
1.Surface Mounting
Mount Luminaire Fix luminaire Angle
Drill holes Mount Luminaire
2.Landscape Mounting
Fix luminaire Angle
Mount Accessory Insert Into the ground
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
