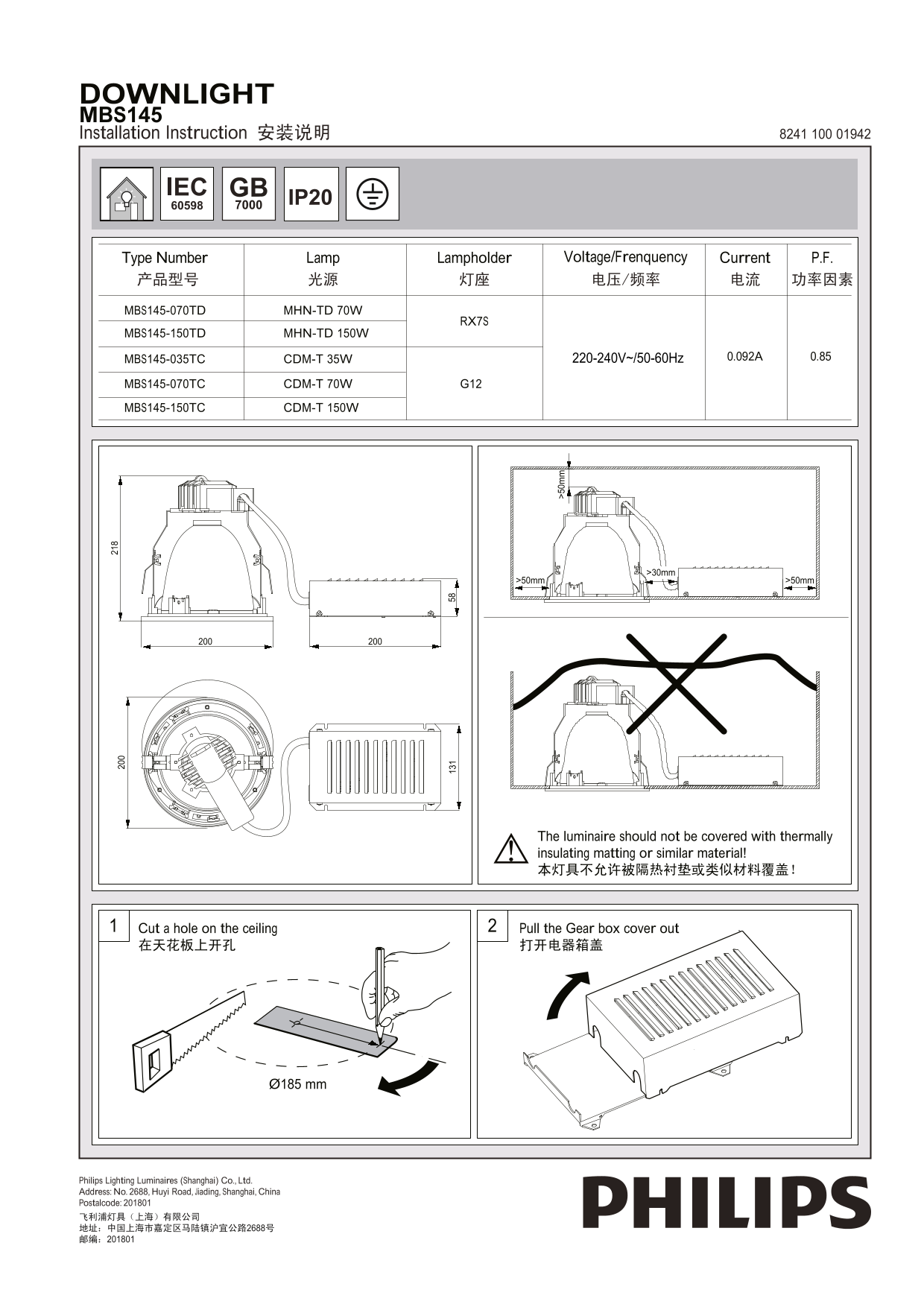

DOWNLIGHT MBS145 Installation Instruction 安装说明 8241 100 01942
Lamp Type Number Lampholder Voltage/Frenquency Current P.F.
产品型号 光源 灯座 电压/频率 电流 功率因素 MBS145-070TD MHN-TD 70W
MBS145-150TD MHN-TD 150W
MBS145-035TC CDM-T 35W 220-240V~/50-60Hz 0.092A 0.85
MBS145-070TC CDM-T 70W G12
MBS145-150TC CDM-T 150W
>30mm
>50mm >50mm
The luminaire should not be covered with thermally insulating matting or similar material! 本灯具不允许被隔热衬垫或类似材料覆盖！
Cut a hole on the ceiling Pull the Gear box cover out 在天花板上开孔 打开电器箱盖
Ø185 mm
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
