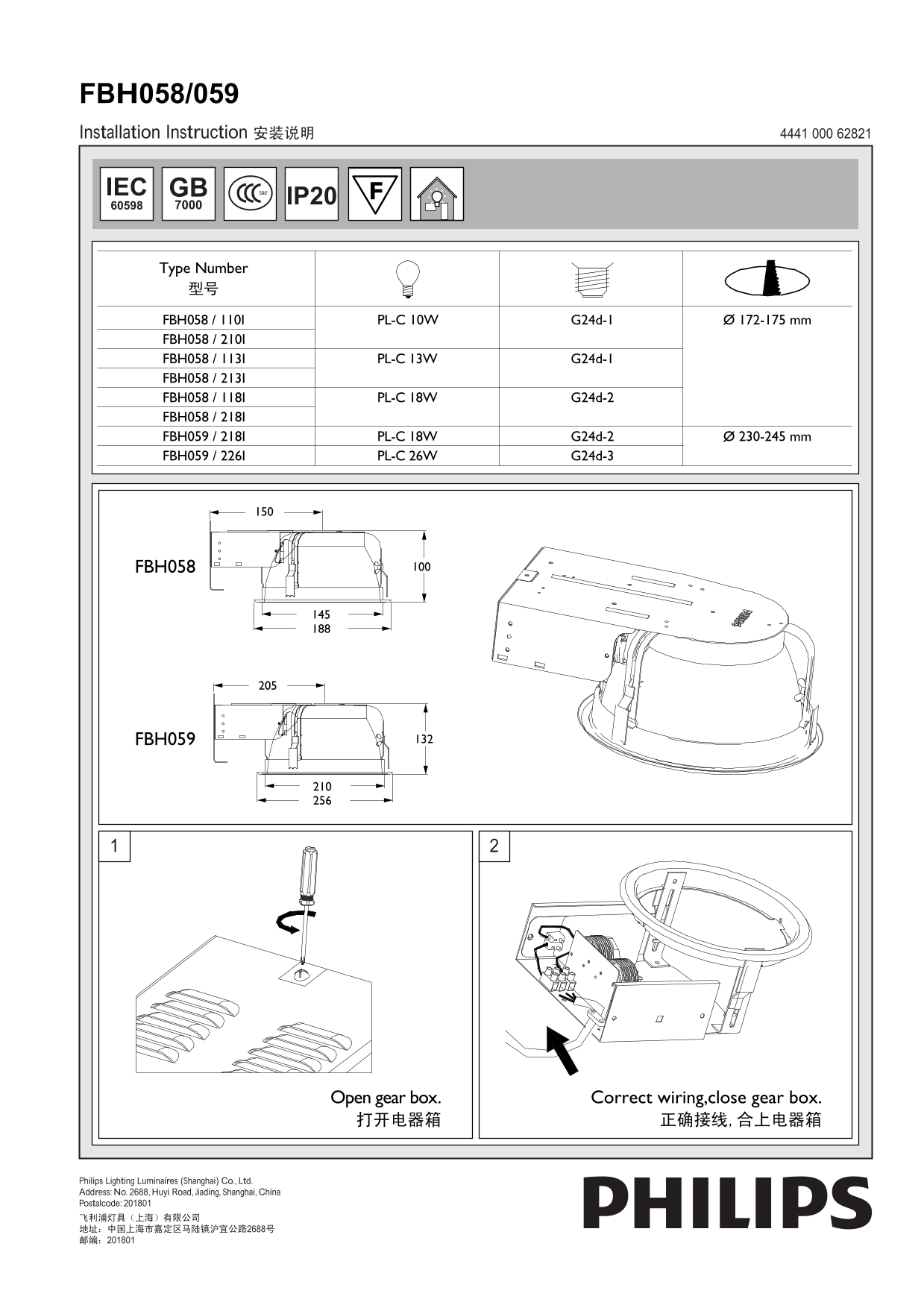

Philips FBH058 059 Lighting Fixture Installation Instructions - Page 1

›

Page 1 Text Content

FBH058/110I FBH058/210I FBH058/113I

172～175 mm

FBH058/213I FBH058/118I FBH058/218I FBH059/218I

230～245 mm

FBH059/226I

FBH058/059 Installation Instruction 安装说明 4441 000 62821

Type Number 型号 FBH058 / 110I PL-C 10W G24d-1 O 172-175 mm FBH058 / 210I FBH058 / 113I PL-C 13W G24d-1 FBH058 / 213I FBH058 / 118I PL-C 18W G24d-2 FBH058 / 218I FBH059 / 218I PL-C 18W G24d-2 O 230-245 mm FBH059 / 226I PL-C 26W G24d-3

FBH058

FBH059

Correct wiring,close gear box.Open gear box. 正确接线,合上电器箱打开电器箱

Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司地址：中国上海市嘉定区马陆镇沪宜公路2688号邮编：201801

Page Summary Contents For Philips FBH058 059 Lighting Fixture Installation Instructions

Page 1 FBH058/110I FBH058/210I FBH058/113I 172～175 mm FBH058/213I FBH058/118I FBH058/218I FBH059/218I 230～245 mm FBH059/226I FBH058/059 Installation Instruction 安装说明 4441 000 62821 Type Number 型号 FBH058 / 11...

Page 2 Release reector, put lum. Into ceiling. Adjust clip and xed lum. 取下灯罩，将灯具装入天花调整搭扣及辅助支撑,锁紧灯具 Fixed reector. Fixed lamp. 安装好灯罩装入光源 1. The luminaire shall be installed by a qualied electrician and ...
