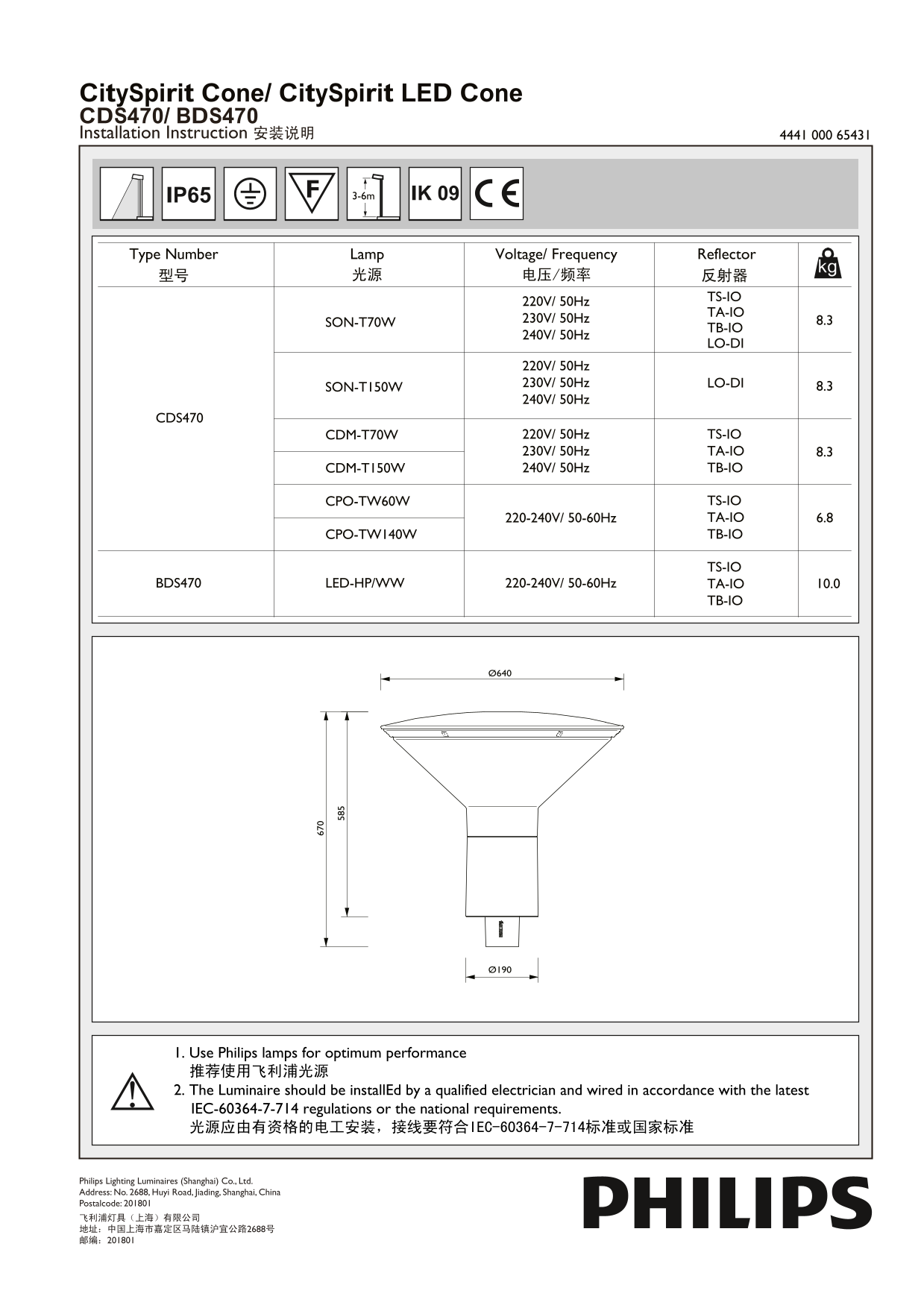

City Spirit Cone/ City Spirit LED Cone CDS470/ BDS470 Installation Instruction 安装说明 4441 000 65431
IP65 IK 093-6m
Lamp Type Number Voltage/ Frequency Reflector 光源型号 电压/频率 反射器
TS-IO
220V/ 50Hz
TA-IO
230V/ 50Hz 8.3
SON-T70W
TB-IO
240V/ 50Hz
LO-DI
220V/ 50Hz 230V/ 50Hz LO-DI 8.3
SON-T150W
240V/ 50Hz
CDS470
CDM-T70W 220V/ 50Hz TS-IO 230V/ 50Hz TA-IO 8.3 CDM-T150W 240V/ 50Hz TB-IO
CPO-TW60W TS-IO 220-240V/ 50-60Hz TA-IO 6.8 CPO-TW140W TB-IO
TS-IO
BDS470 LED-HP/WW 220-240V/ 50-60Hz TA-IO 10.0
TB-IO
1. Use Philips lamps for optimum performance 推荐使用飞利浦光源 2. The Luminaire should be install Ed by a qualified electrician and wired in accordance with the latest IEC-60364-7-714 regulations or the national requirements. 光源应由有资格的电工安装，接线要符合IEC-60364-7-714标准或国家标准
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
