Philips LED Post-Top LED Garden Light BGP150 Installation Guide
Summary
Illuminate your outdoor spaces with the BGP150 IP65 LED post lamp series. This energy-efficient fixture provides durable and customizable accent lighting for patios, gardens, and landscapes. This manual serves as a comprehensive guide for product installation and safe wiring practices. It clearly outlines assembly steps, detailed electrical connection diagrams (including wire identification), and mandatory safety precautions. It is designed for qualified electricians or professional installers who require adherence to the latest national electrical codes to ensure proper setup and long-term performance.

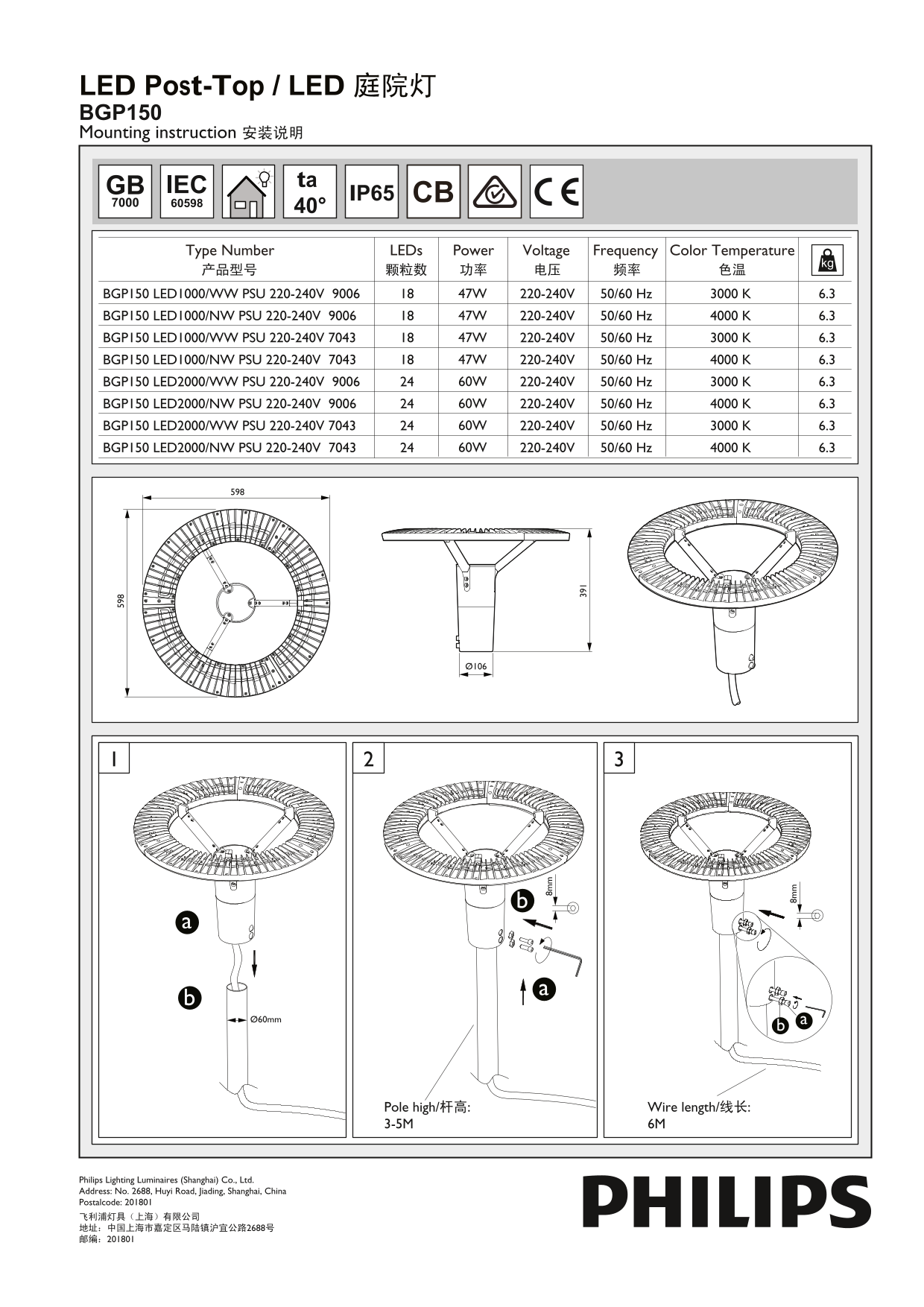

Page 1 Text Content
LED Post-Top / LED 庭院灯 BGP150 Mounting instruction 安装说明
ta IP65 40°
Type Number LEDs Power Voltage Frequency Color Temperature 产品型号 颗粒数 功率 电压 频率 色温
BGP150 LED1000/WW PSU 220-240V 9006 47W 220-240V 50/60 Hz 3000 K 6.3 BGP150 LED1000/NW PSU 220-240V 9006 47W 220-240V 50/60 Hz 4000 K 6.3 BGP150 LED1000/WW PSU 220-240V 7043 47W 220-240V 50/60 Hz 3000 K 6.3 BGP150 LED1000/NW PSU 220-240V 7043 47W 220-240V 50/60 Hz 4000 K 6.3 BGP150 LED2000/WW PSU 220-240V 9006 60W 220-240V 50/60 Hz 3000 K 6.3 BGP150 LED2000/NW PSU 220-240V 9006 60W 220-240V 50/60 Hz 4000 K 6.3 BGP150 LED2000/WW PSU 220-240V 7043 60W 220-240V 50/60 Hz 3000 K 6.3 BGP150 LED2000/NW PSU 220-240V 7043 60W 220-240V 50/60 Hz 4000 K 6.3
Ø60mm ab
Pole high/杆高: Wire length/线长: 3-5M 6M
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
Page Summary Contents For Philips LED Post-Top LED Garden Light BGP150 Installation Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 2 |
| File Size | 1.34 MB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Who should install this luminaire?
The fixture must be installed by a qualified electrician, adhering to IEE electrical standards or national requirements.
What should I do if the external cable is damaged?
The external flexible cable cannot be replaced; if it is damaged, the entire luminaire must be discarded.
Is a waterproof box included with the installation kit?
No, a waterproof box is not provided, so professional advice for installation is recommended.
When is it safe to power on the unit?
Do not switch on the electricity until the complete installation process is finished.
